Power Charge 7000i
National regulations (e.g. Energy Industry Act EnWG 14a)
require a control option for charging systems to reduce
charging power by the grid operator. Via the potential-free
contact (EN), the charging power can be reduced from 0kW
(delivery status) to an optional 4.2kW on the Wallbox.
Prerequisite: The Wallbox software must be up to date.
▶ Switch the Wallbox without power and connect a potential-
free NC contact (for example, a ripple control receiver or
the FNN control box) to the EN interface of the Wallbox.
▶ Remove the existing line bridge, if necessary.
▶ Use the DIP switch 2/1 to configure the charging power
limit to 0kW or 4.2kW and restart the Wallbox.
Highlighted values indicate the default setting.
EN

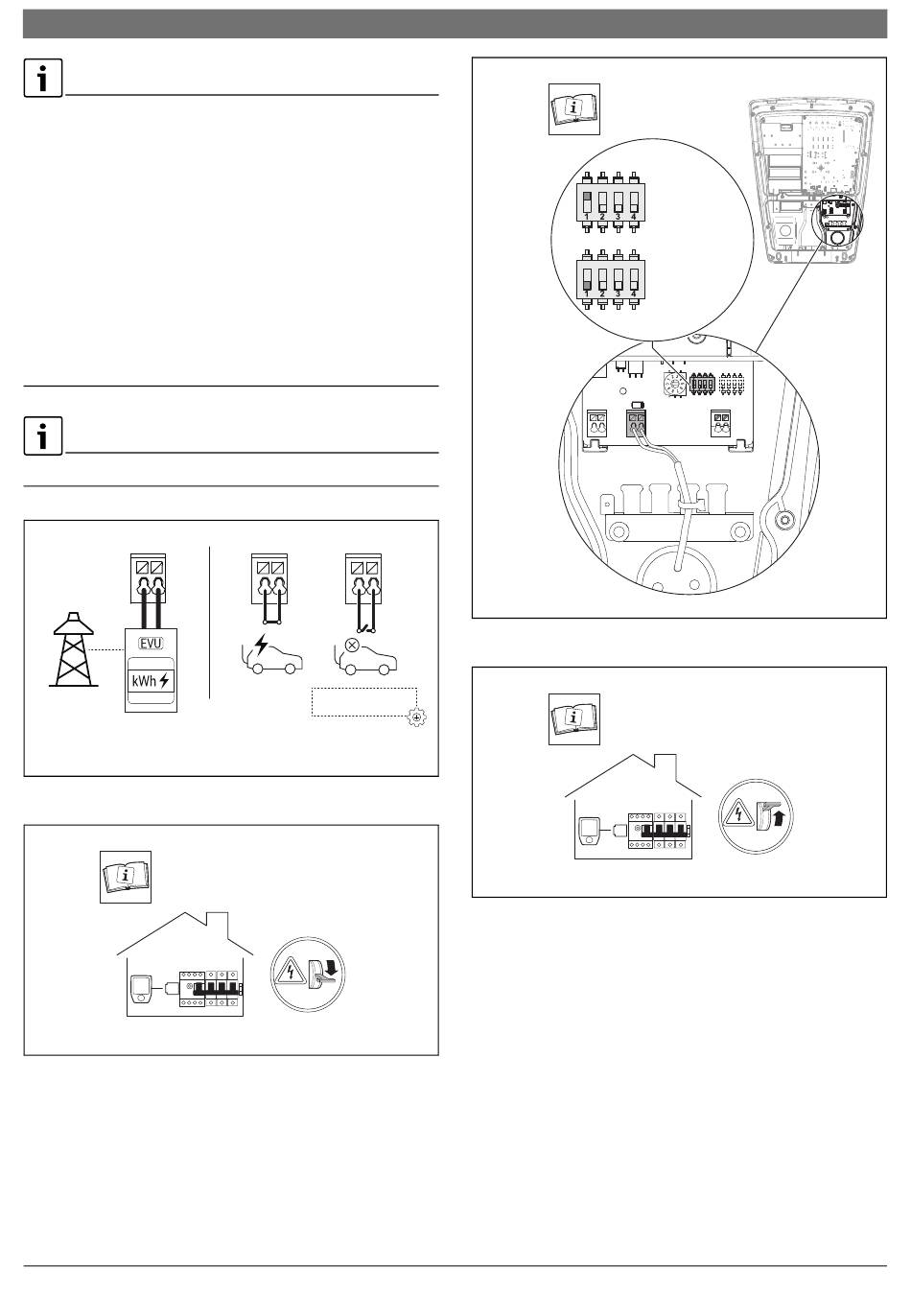

Fig. 5
1.
Fig. 6
6721894175 (2024/07) zz
EN EN
S2/1 "ON" 4,2 kW
S2/1 "OFF" 0 kW
0010055907-001
ON
OFF
0010055908-001
2.
Fig. 7
3.
Fig. 8
S2/1
"ON" 4,2 kW
S2/1
"OFF" 0 kW
S2
EN
0010055909-001
ON
OFF
0010055910-001
