For Australia & New Zealand version
1

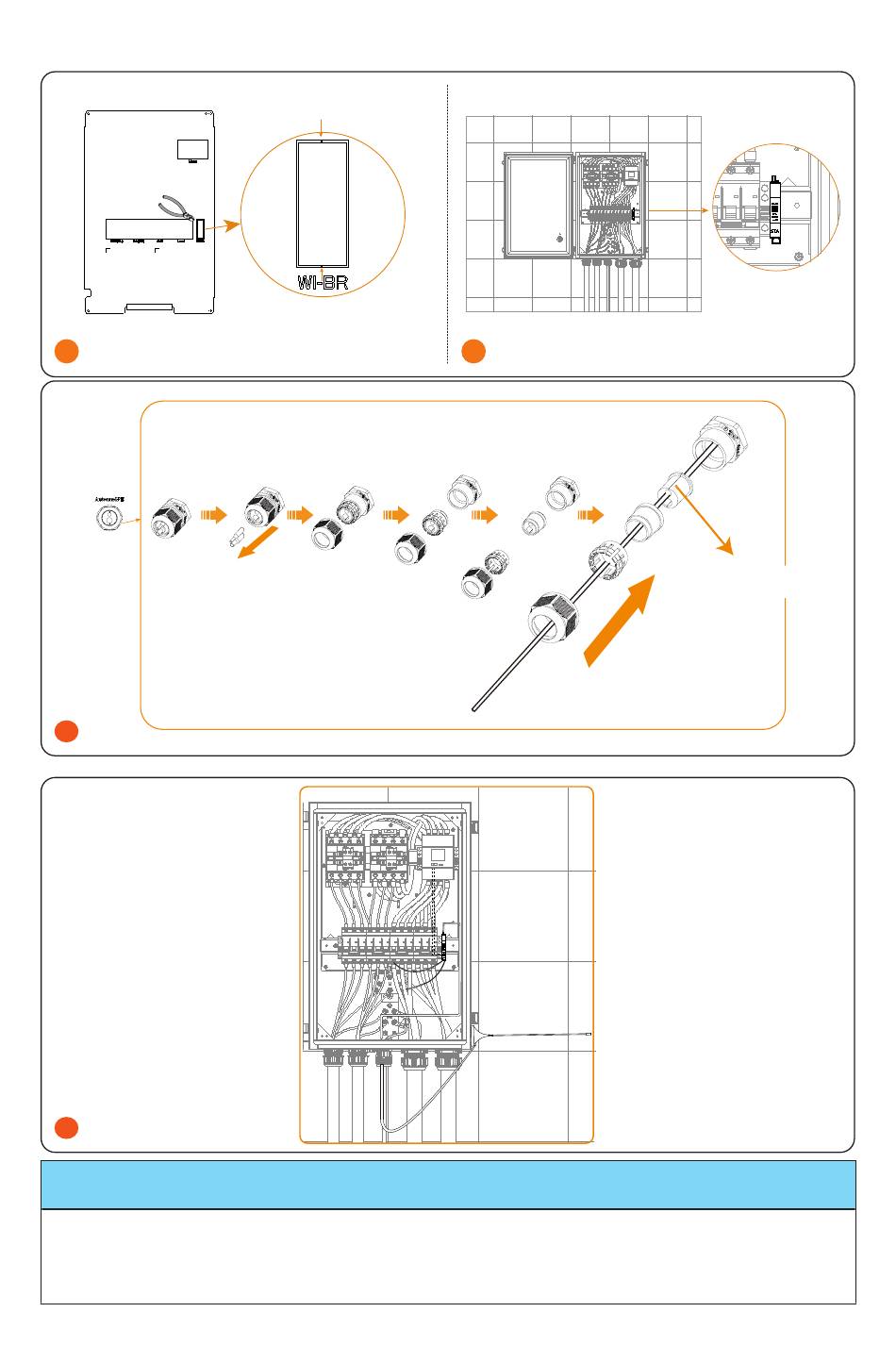

Cut the Meter/Wi-BR frame on the baffle
Unplug the rubber plug
3
Wiring the Wi-BR and antenna
For the specific wiring, please refer
to the Wiring diagram: with Wi-BR
(page 42)
4
• Select a suitable place to install antenna.
• When the Wi-BR is needed, crimping the Grid (INV) L3 cable and Wi-BR L cable with
a ferrule, crimping Grid (INV) N cable and the Wi-BR N cable with a OT terminal.
168
2
NOTICE!
Insert cable from side
of rubber ring
Antenna position is for reference
only
