5

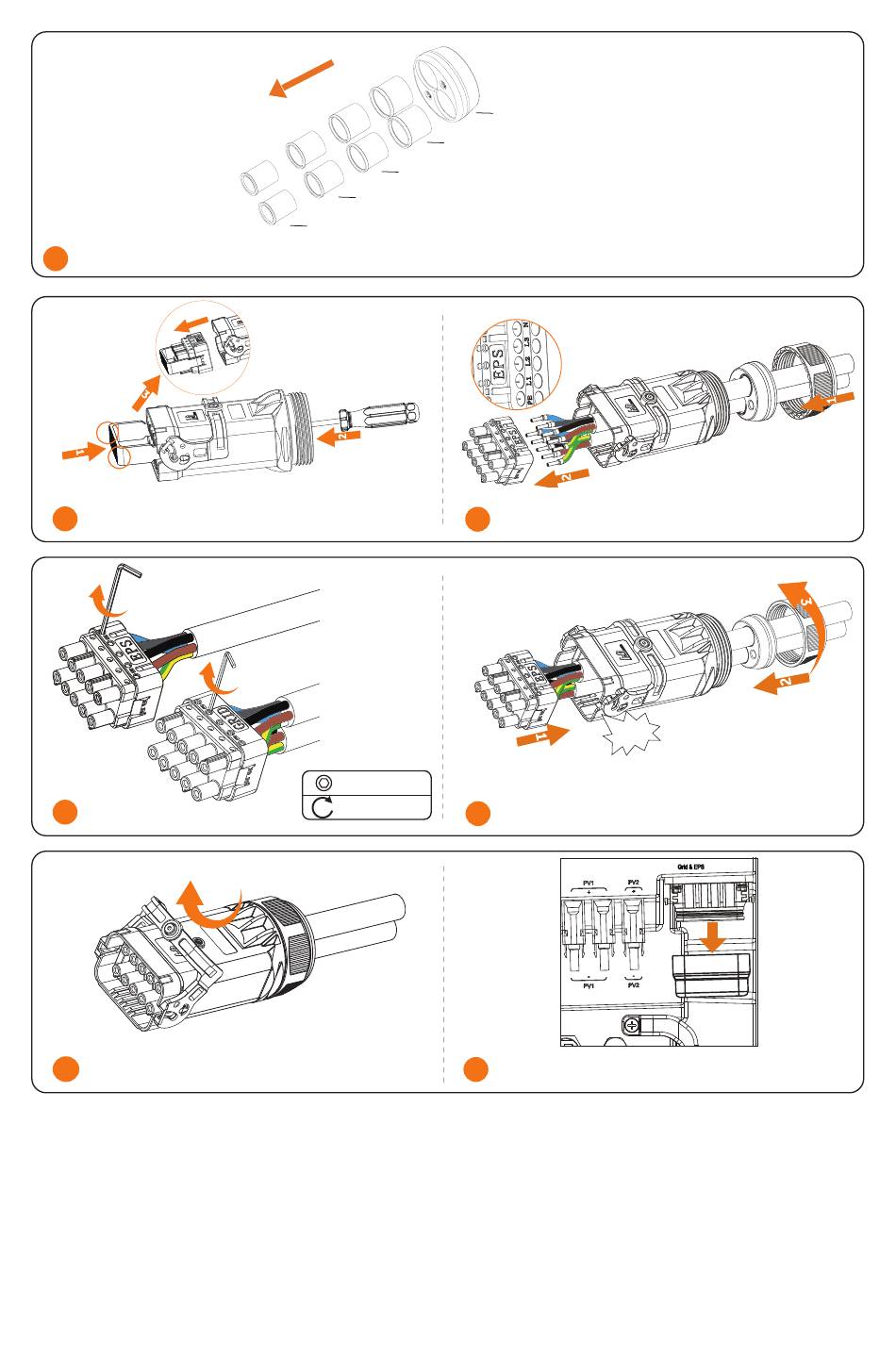

According to the outer diameters of the cable, take out the corresponding sealing plug.
Pressure
points
Insert the disassembling tool into the terminal
block, press and hold the double arc edges of the
6
tool, and poke the terminal block out.
8
10
Pull up the latch.
For cable diameter: 21.4 - 24.5 mm
For cable diameter: 19 - 21.5 mm
For cable diameter: 15.5 - 19 mm
For cable diameter: 13.5 - 15.5 mm
7
Screw to tighten
Grid and EPS
cables with an
Allen key.
Allen key
2.5±0.1 N·m
9
11
For cable diameter: 24.5 - 27 mm
Plug L1/ L2/ L3/ N/ PE cables into the
corresponding ports of the terminal block.
Click!
Insert the terminal block and rubber stopper back
to the AC connector and tighten the swivel nut.
Remove the dustproof cover from the Grid&EPS
port.
149
