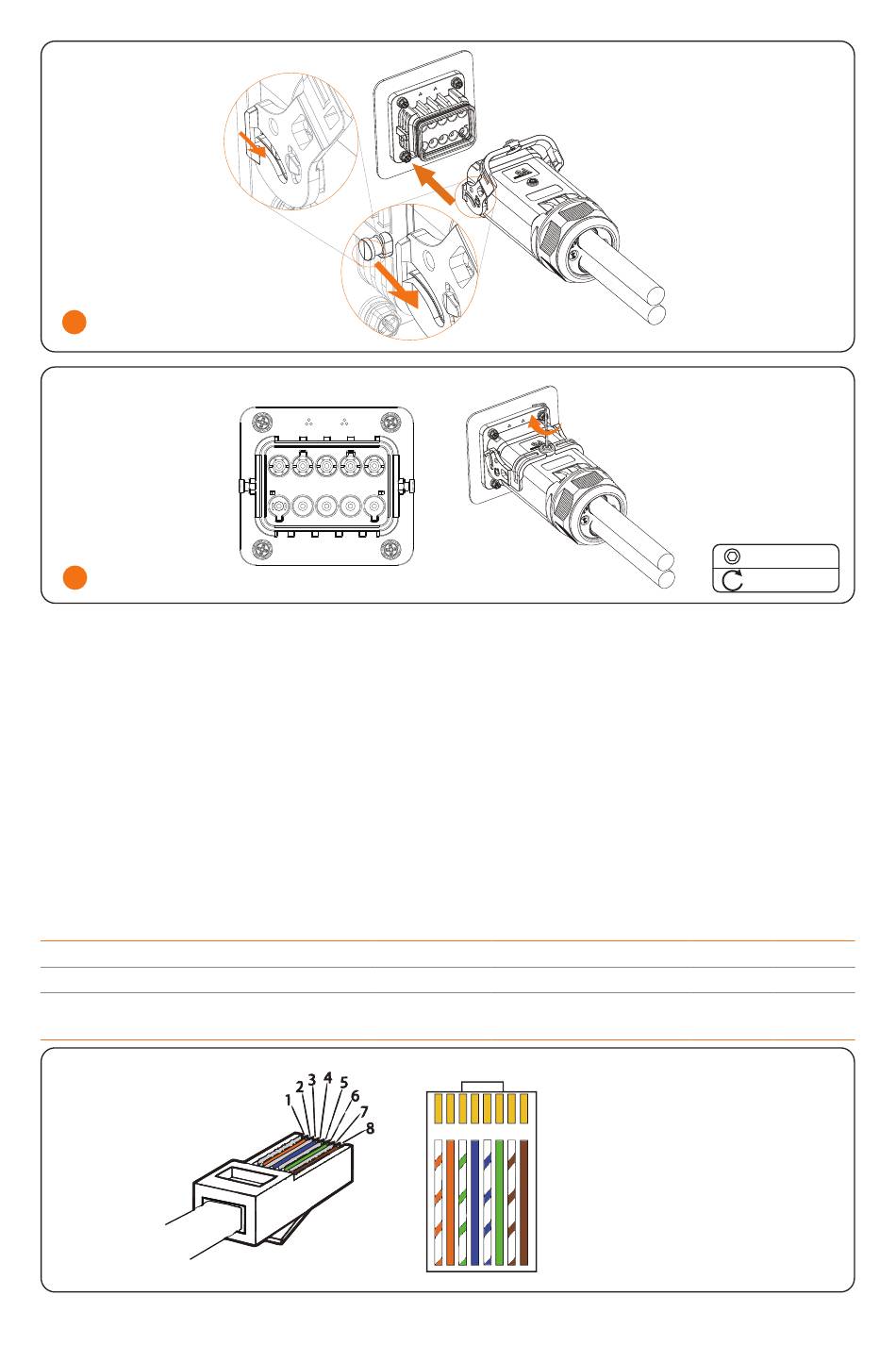

Insert the AC connector
into the Grid&EPS port of
12
the inverter.
13
• Communication Connection / Kommunikations-Anschluss / Branchement
de communication / Conexión de comunicación / Ligação à Comunicação
/ Communicatie-aansluiting / Collegamento comunicazione / Połączenie
komunikacyjne / Komunikační připojení / Kommunikationsanslutning / Conexiune
de comunicare / Комуникационна връзка / Kommunikationsforbindelse / Σύνδεση
επικοινωνίας / Sideühendus / Tiedonsiirtoliitäntä / Priključak za komunikaciju /
Kommunikációs bekötés / Duomenų ryšys / Sakaru savienojums / Pripojenie
komunikácie / Komunikacijska povezava / iletişim bağlantısı / Conexão de
Comunicação / توصيل ا ل اتصال
CT/Meter Port Introduction
1.
Pin definition for CT/meter
Item
Pin
1
Pin
CT_L1-1 CT_L2-1 CT_L3-1 METER485A METER485B CT_L1-2 CT_L2-2 CT_L3-2
definition
150
Outer side
EPS
PE L1 L2 L3 N
GRID
Inner side
CT
2
3
Meter
4
5
1 2 3 4 5 6 7 8
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
Lock the AC connector
with an Allen key.
Allen key
2.5±0.1 N·m
CT
6
7
8
