Make sure that the heater cable is locked. For the detailed steps, see below figure.
Align the groove according
to the arrows
7
*Note:
1. Tighten both ends of the communication cable with a rotation wrench. After tightening,
remove the rotation wrench.
2. Don't violently remove the cable when it is locked.
3. A corrugated pipe with an external diameter of 67.2 mm is recommended for use to
keep cable insulation in place and avoid potential damages.
144
Pipe 2
Pipe 1

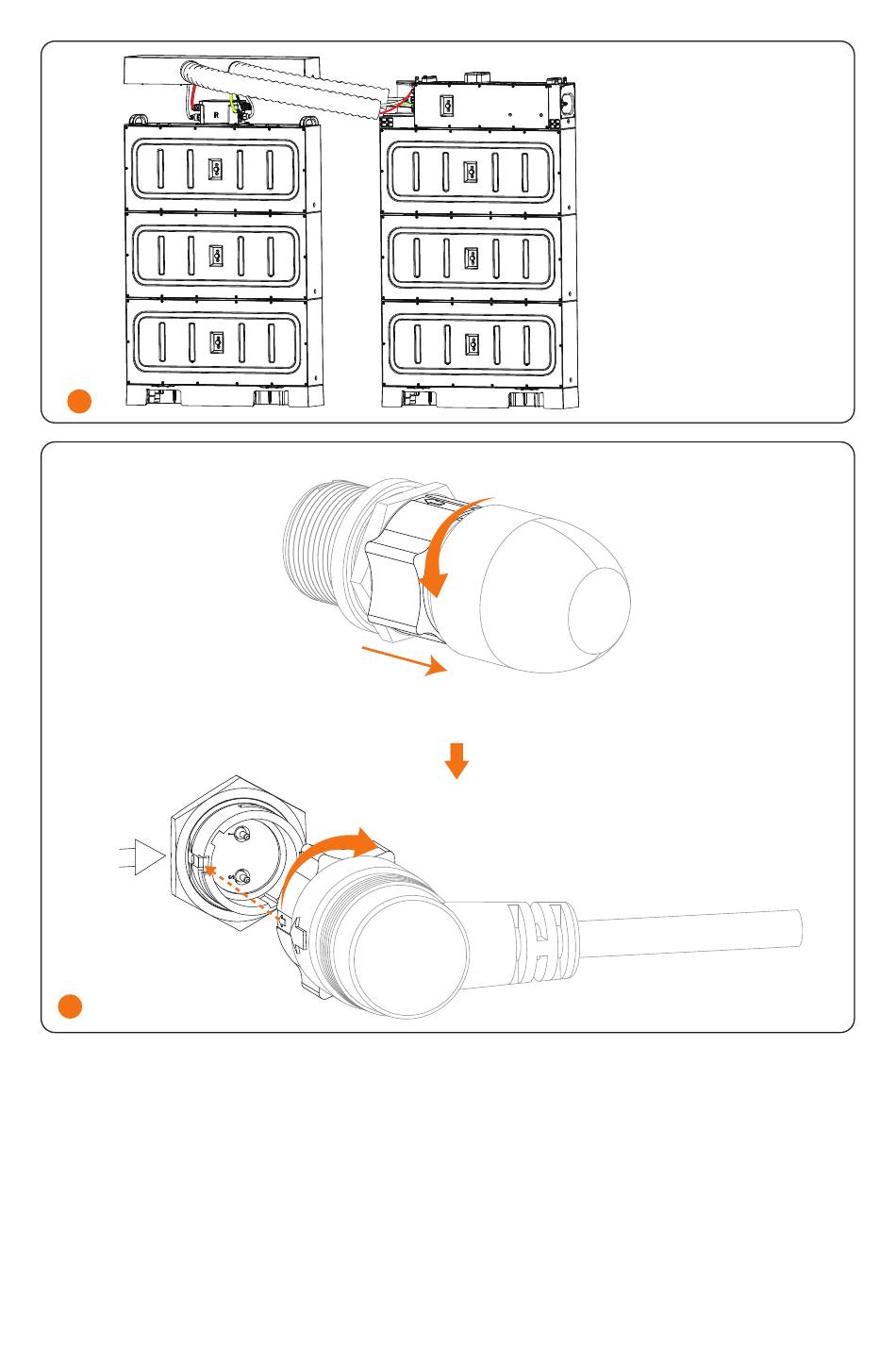

Step 2: Insert heater cable into HEAT port,
and rotate clockwise to close it.
Insert pipes into the holes on
the cover, and then connect the
cables to the Series Box (See the
Step 4).
Step 1: Rotate the
rotating ring until the
arrow on it is aligned
with the arrow on the
panel before removing
the short-circuit plug.
