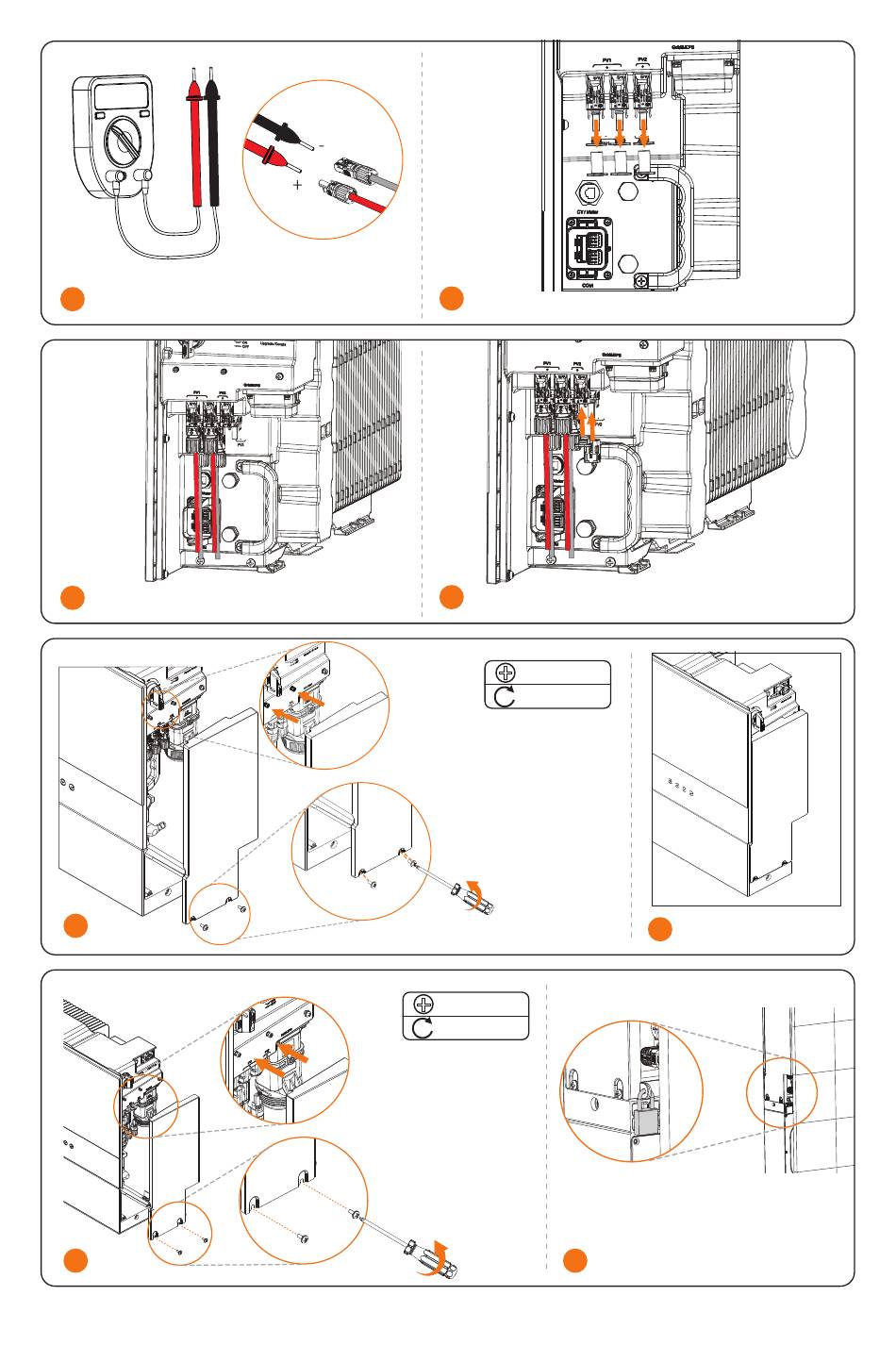

Test the voltage of positive and negative poles
5
of the PV cables.
7
Insert assembled PV cables into the PV port.
For general version only
9
For Australia version only
11
162
≤ 950 V
Step1 Hang the board
on the two screws.
Step2 Lock the screws
in the bottom of the
cable shielding board.
6
Remove PV caps from the PV port.
8
Insert PV dustproof buckles into the unsealed PV port.
M5*14
2±0.1 N·m
Step1 Hang the board
on the two screws.
Step2 Lock the screws
in the bottom of the
cable shielding board.
M5*14
2±0.1 N·m
Step3 Install the padlock.
(The lock rod 's diameter doesn't
12
exceed 5 mm.)
10
