Two Towers

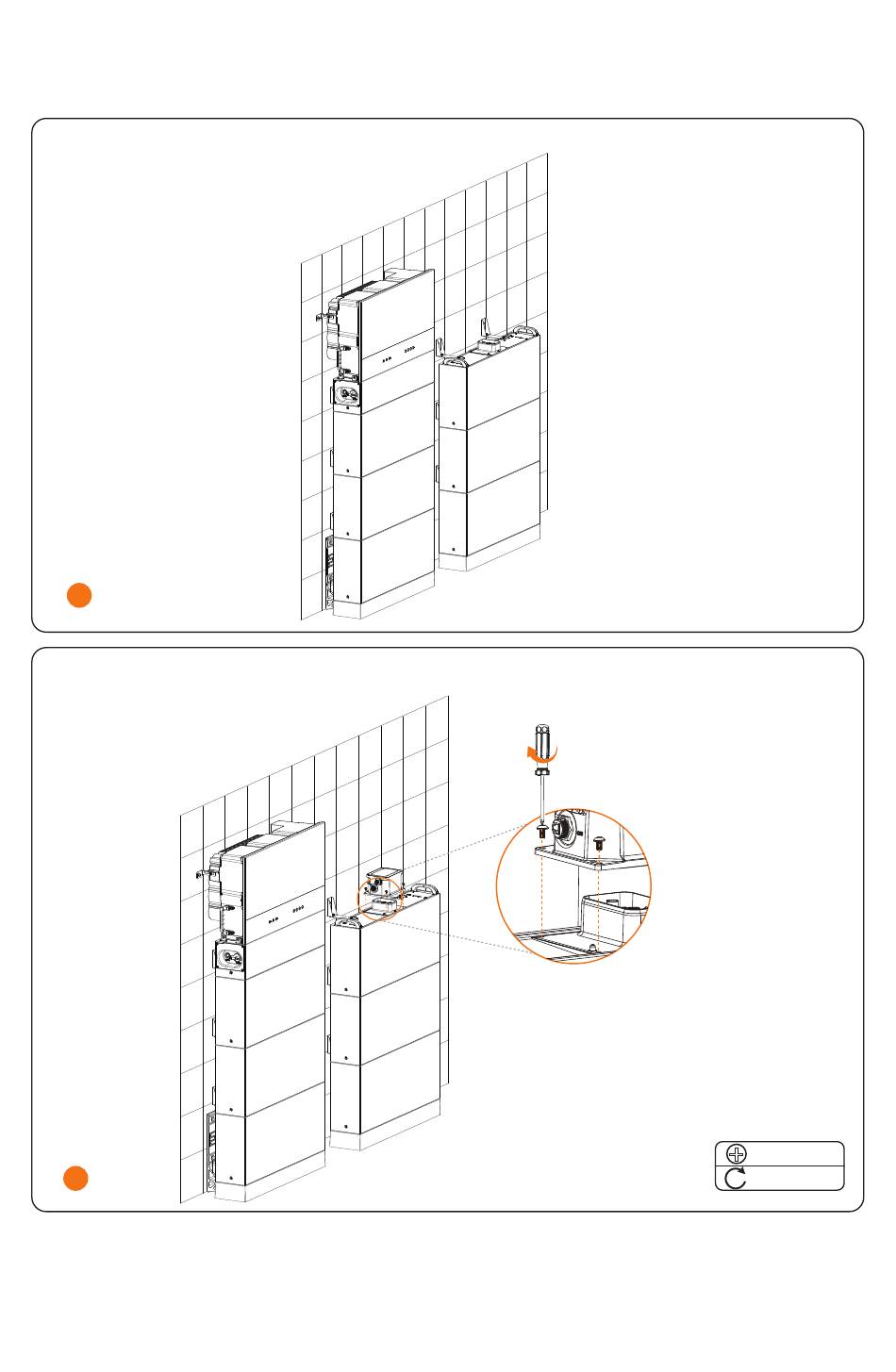

Take the installation procedure for six battery modules as an example.
As for the installation steps for the following figure, please refer
to the step 1~26 for the installation procedure for the left tower
and the step 1~12 for the installation of the right tower.
Please leave over 300 mm between the two towers.
2 7
4 screws shall be tightened
*Note: The side of the series box with "R" shall be against the wall.
28
*Note: The cover that covers on the series box shall be installed after finishing wiring. As
for the installation procedure of the cover, please refer to the section of
Connection".
M5 * 14
2.2-2.5 N·m
"Communication
127
