ENGLISH

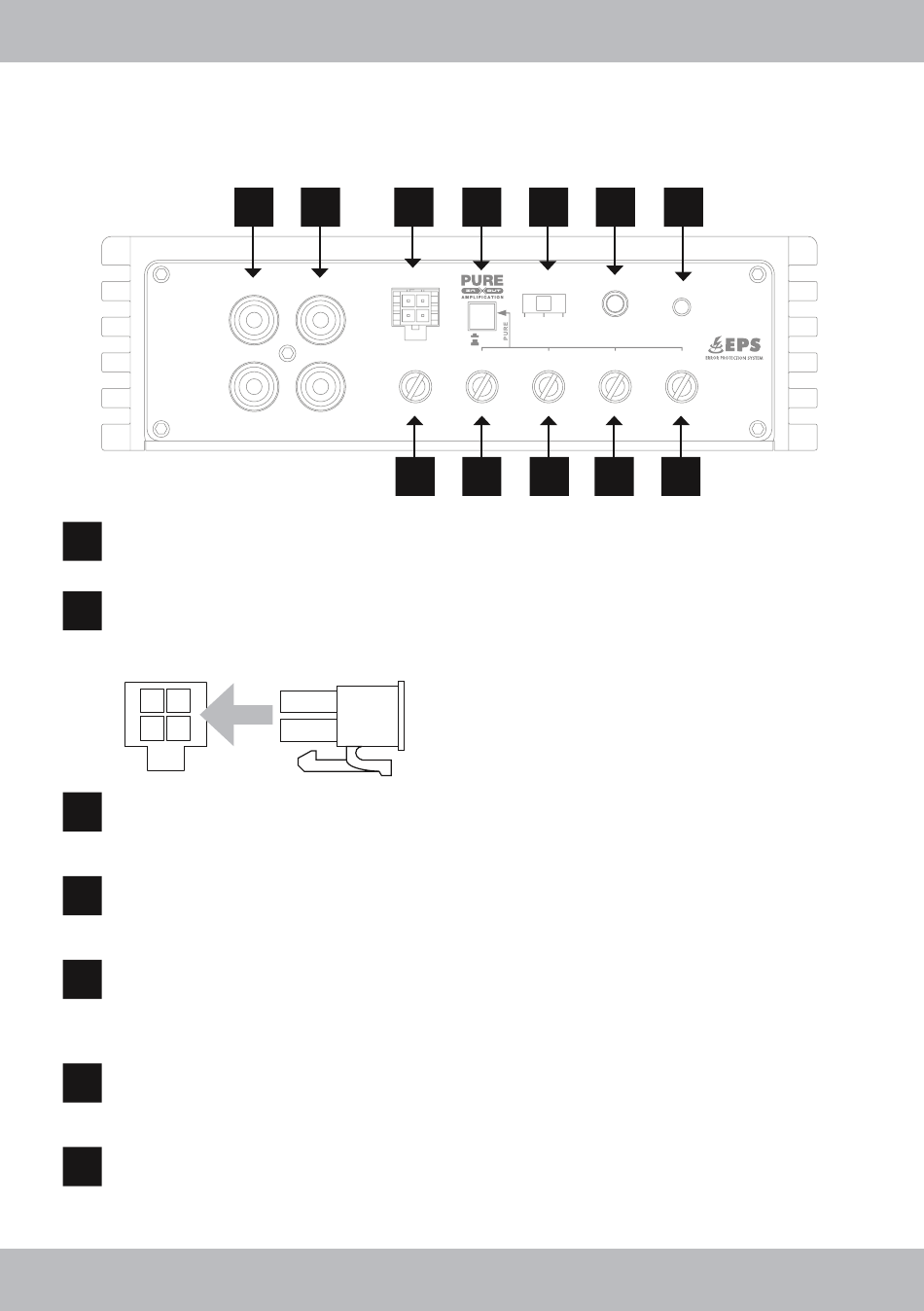

DESCRIPTION OF OPERATION
ONE2000
DIGITAL CLASS D
MONO AMPLIFIER
6
INPUT
Connect the INPUT RCA jacks with the head unit by using appropriate audio signal cables.
HIGH LEVEL INPUT
7
If your head unit does not have RCA preamp outputs, you can use the HIGH LEVEL INPUT (refer
to page 11, Application C). To do this, simply connect the loudspeaker cables of the head unit to the
enclosed cable plug as follows:
L
R
+
+
L
R
–
–
OUTPUT
8
The OUTPUT RCA jacks provide a linear full-range audio signal for driving additional amplifiers, such
as an additional ONE2000 monoblock.
INPUT SENSITIVITY
9
This controller determines the input sensitivity (adaptation to the output signal of the head unit). The
controller range is between 5 volts (MIN) and 0.2 volts (MAX).
SUB SONIC
10
This controller limits the ultra low and not audible frequencies of the audio signal downwards to avoid
mechanical and electrical overloading on the subwoofer. The crossover frequency is adjustable from
10 to 40 Hz and depends on the size of the subwoofer.
11
LOW PASS
This controller limits the frequency upwards. The crossover frequency is adjustable from 40 Hz to 150
Hz (5 kHz).
12
BASS BOOST
This controller adjusts the bass boost from 0 dB to +18 dB at 45 Hz.
8
6
8
INPUT
OUTPUT
L
L
SENSITIVITY
R
R
REM
GND
IN/OUT
7
14 15 16 17
HIGH LEVEL
AUTO
INPUT
TURN-ON
DC
SIG. OFF
ON
OFF
INPUT
SUB
LOW
SONIC
PASS
MIN
MAX
10Hz
40Hz
40Hz
150Hz
9
10
11 12 13
+12V
SPEAKER
White:
White-Black:
Gray:
Gray-Black:
RLC
POWER
PROTECT
BASS
PHASE
BOOST
SHIFT
0dB
18dB
0°
180°
OUTPUT
Left front +
Left front –
Right front +
Right front –
