INSTRUCTION MANUAL

TIG-210P Welding machine

4. Set the AC frequency: use switch 3 to select the "AC FREQ" parameter from the welding

curve and then use button 13 to set the desired value.

5. The welding method is the same as in 1.1

COATED ELECTRODE WELDING

1. Set switch 10 to the "MMA thumbnail" position

2. Set the desired welding current value with button 13

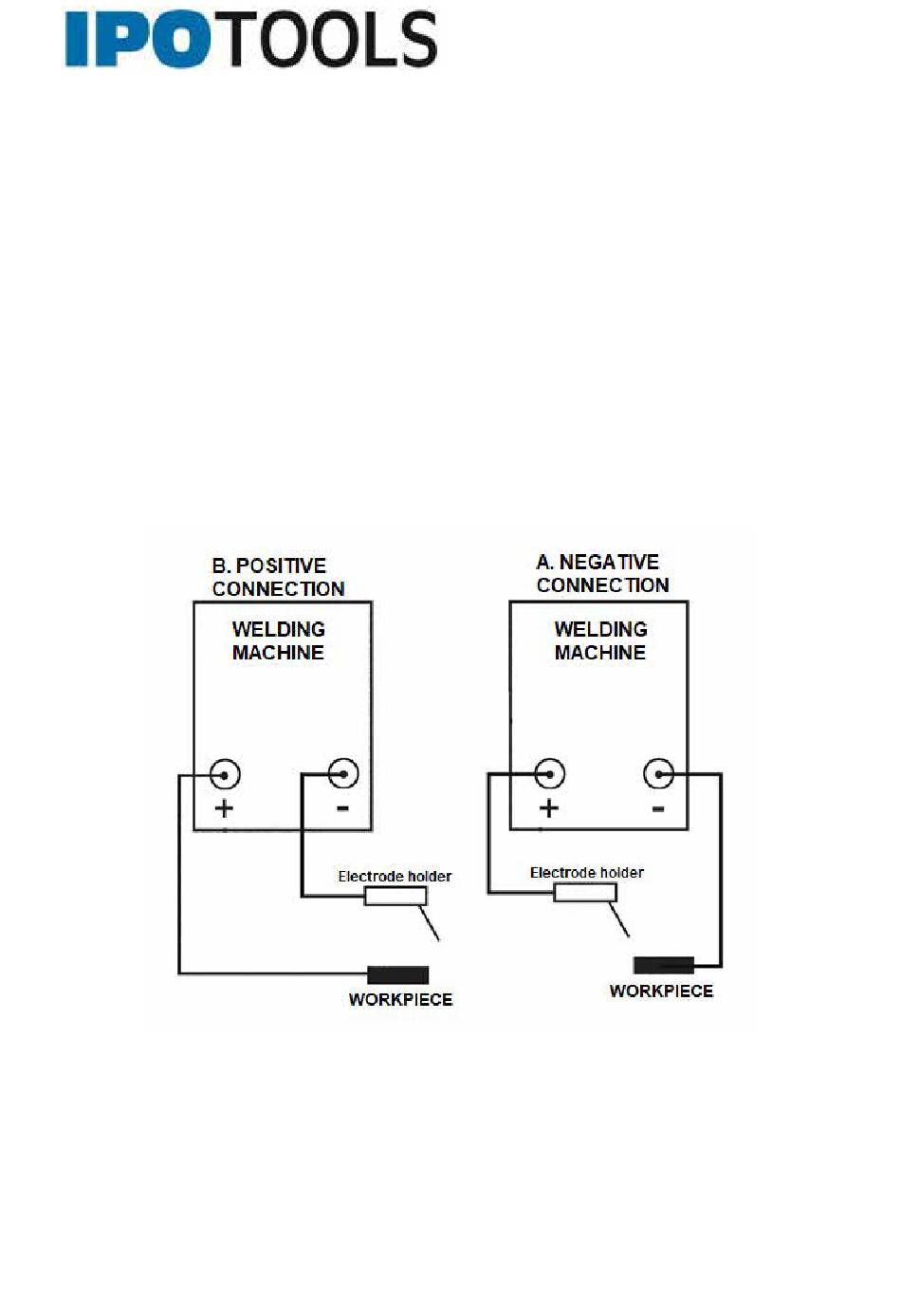

3. Pay attention to positive and negative attachment. Different types of electrodes require

different polarity, see electrode manufacturer's instructions.

A. NEGATIVE CONNECTION switch 7 to position "DC +",

B. POSITIVE CONNECTION switch 7 to position "DC-".
