CONTROL PANEL

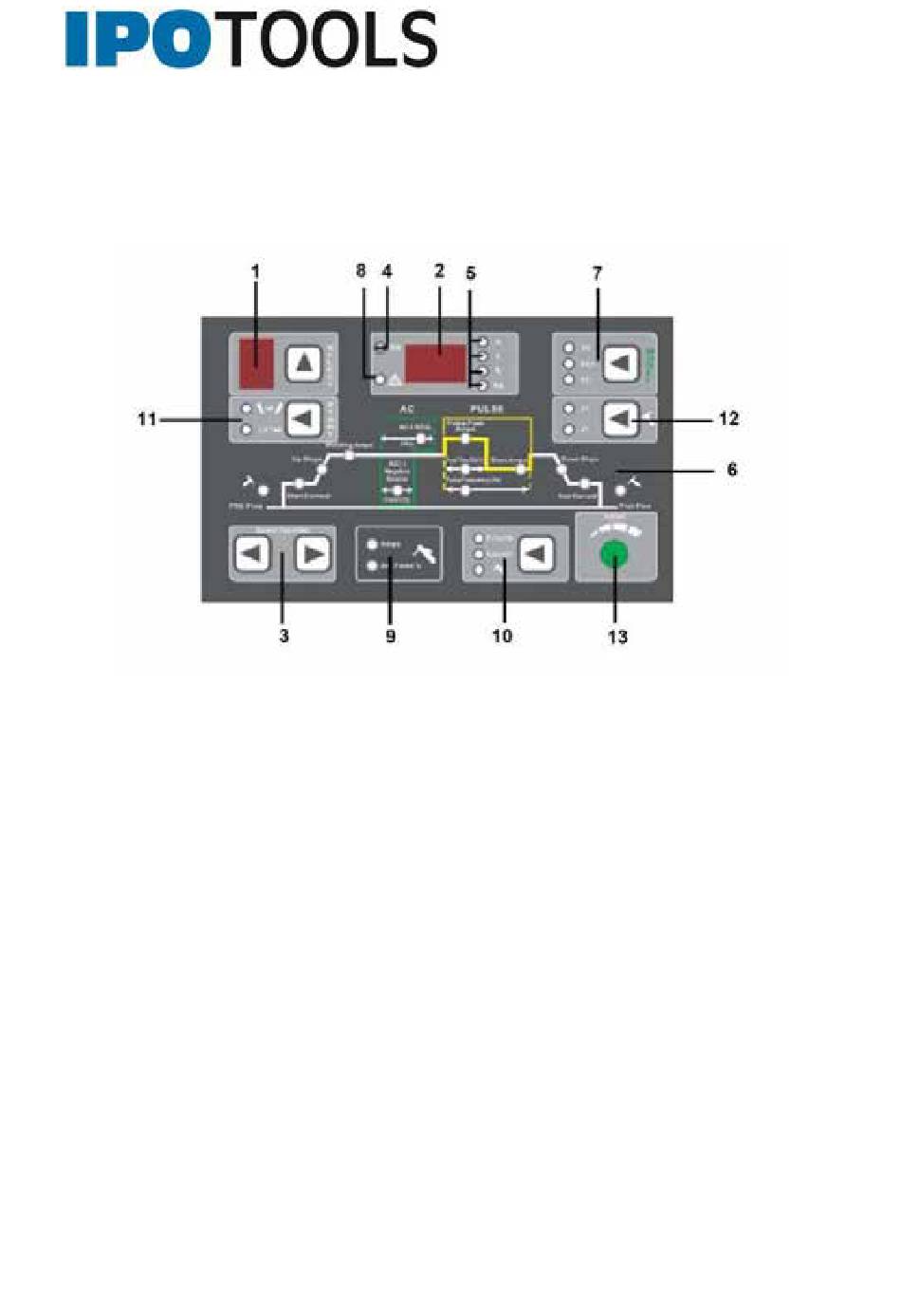

Description of the control panel and the front and back of the appliance:
1. Save current welding parameters, display current memory location *
2. Displays the value of the currently selected parameter.
3. Selection of parameters from the welding curve.
4. Light: power indicator
5. Showing which parameters are currently set:
A - welding current
S - time in seconds (initial and final current or initial and final gas)
% - AC cleaning effect or% welding time of the first or second welding current
Hz - pulse or AC frequency
6. Welding curve (initial gas, initial welding current, set welding current, AC frequency,
AC cleaning effect, pulse frequency, secondary welding current,% and wavelength
of pulse current, final current, final gas)
7. AC, DC +, DC- selection (DC + selected when you have a cable ground at - pole and
a burner at + pole, otherwise select DC-)
8. Warning light
9. MMA AMPS / Arc force selection
10. Pulse mode on / off, MMA on
11. Switching between high frequency and respective ignition
12. Digging between 2T and 4T operation
13. Potentiometer for setting welding parameters
