WELDING METHODS
1.1 TIG Welding
1.1 CLEANING THE WORKPIECE BEFORE WELDING
TIG welding is very sensitive to surface contamination. Therefore, it is necessary to clean
workpieces of welding grease, paint, and impurities before welding.
1.2 DC TIG WELDING
1. Connect the shielding gas supply hose to the connection 21 on the back of the
welding machine, use the supplied clamps,

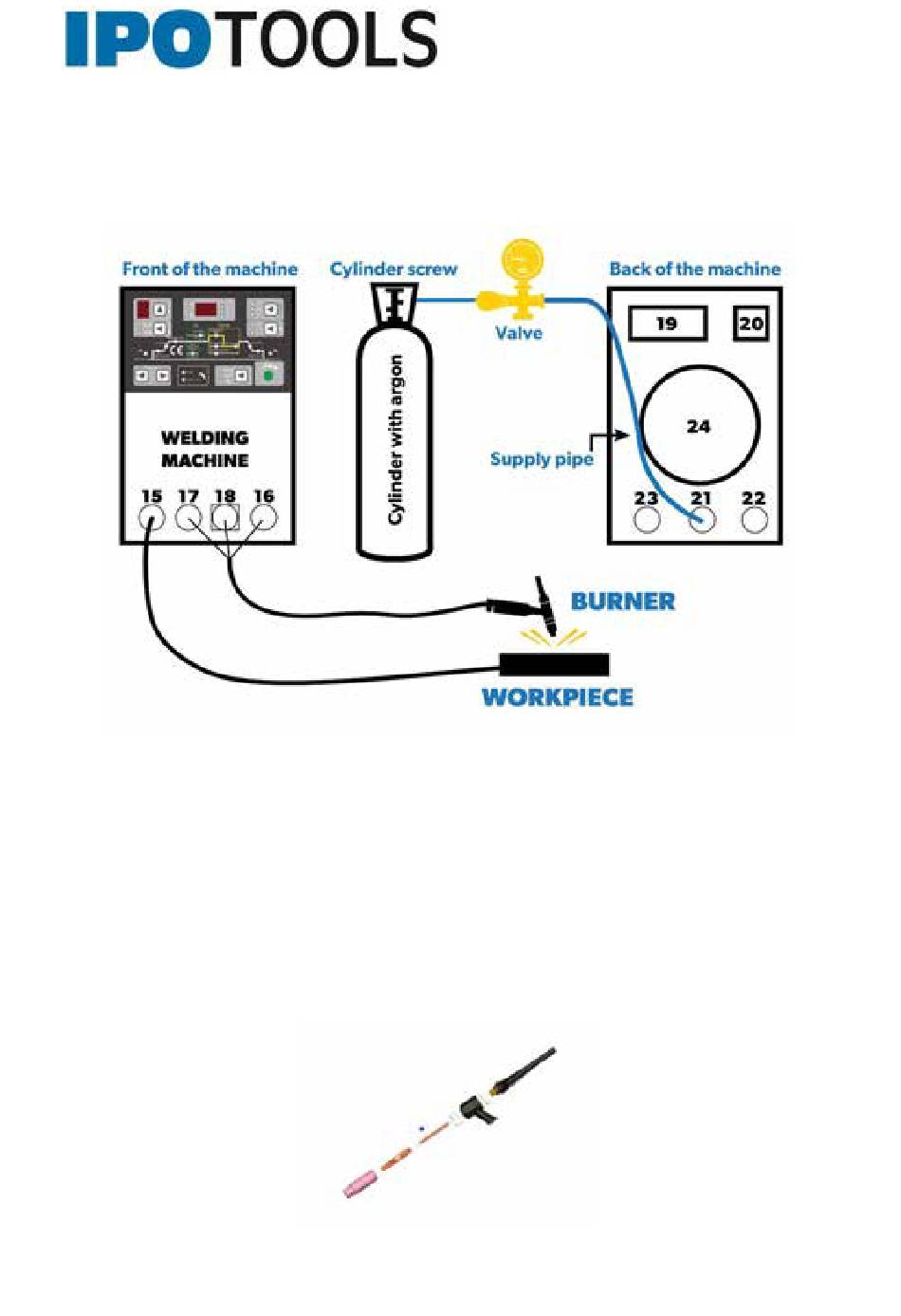

2. Connect the TIG torch to terminals 16, 17, and 18 on the front of the welding
machine, torch assembly according to the picture below,
