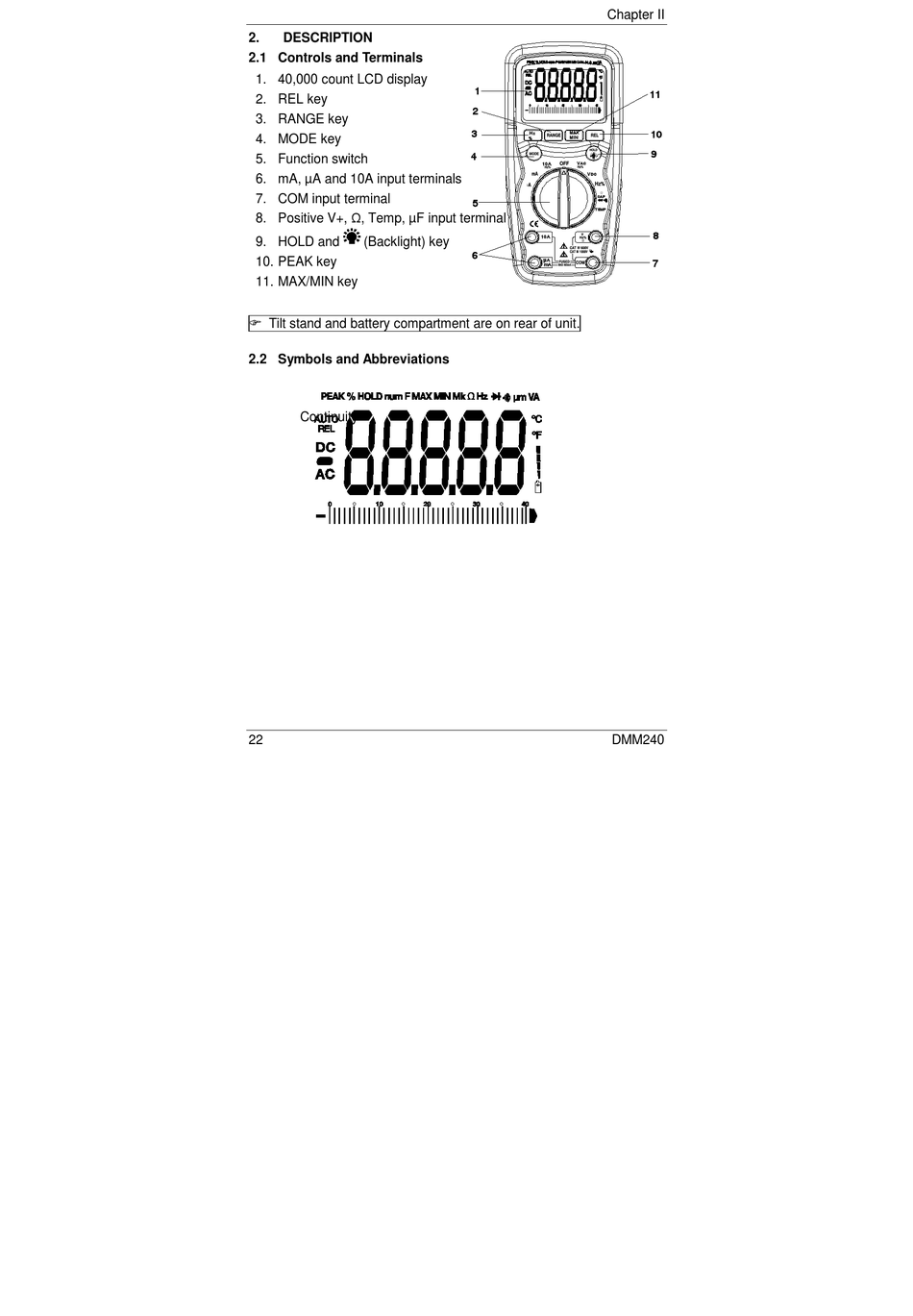

2. DESCRIPTION
2.1 Controls and Terminals
1. 40,000 count LCD display
2. REL key
3. RANGE key
4. MODE key
5. Function switch
6. mA, µA and 10A input terminals
7. COM input terminal
8. Positive V+, Ω, Temp, µF input terminal
9. HOLD and (Backlight) key
10. PEAK key
11. MAX/MIN key
 Tilt stand and battery compartment are on rear of unit.
2.2 Symbols and Abbreviations
Continuity
22
Chapter II
1
2
3
H MAX
z
MIN
%
4
V
10A AC
V
DC
μ
Ω
CAP
5
TEMP
10A
6
A
mA
DMM240
11
10
9
8
7
