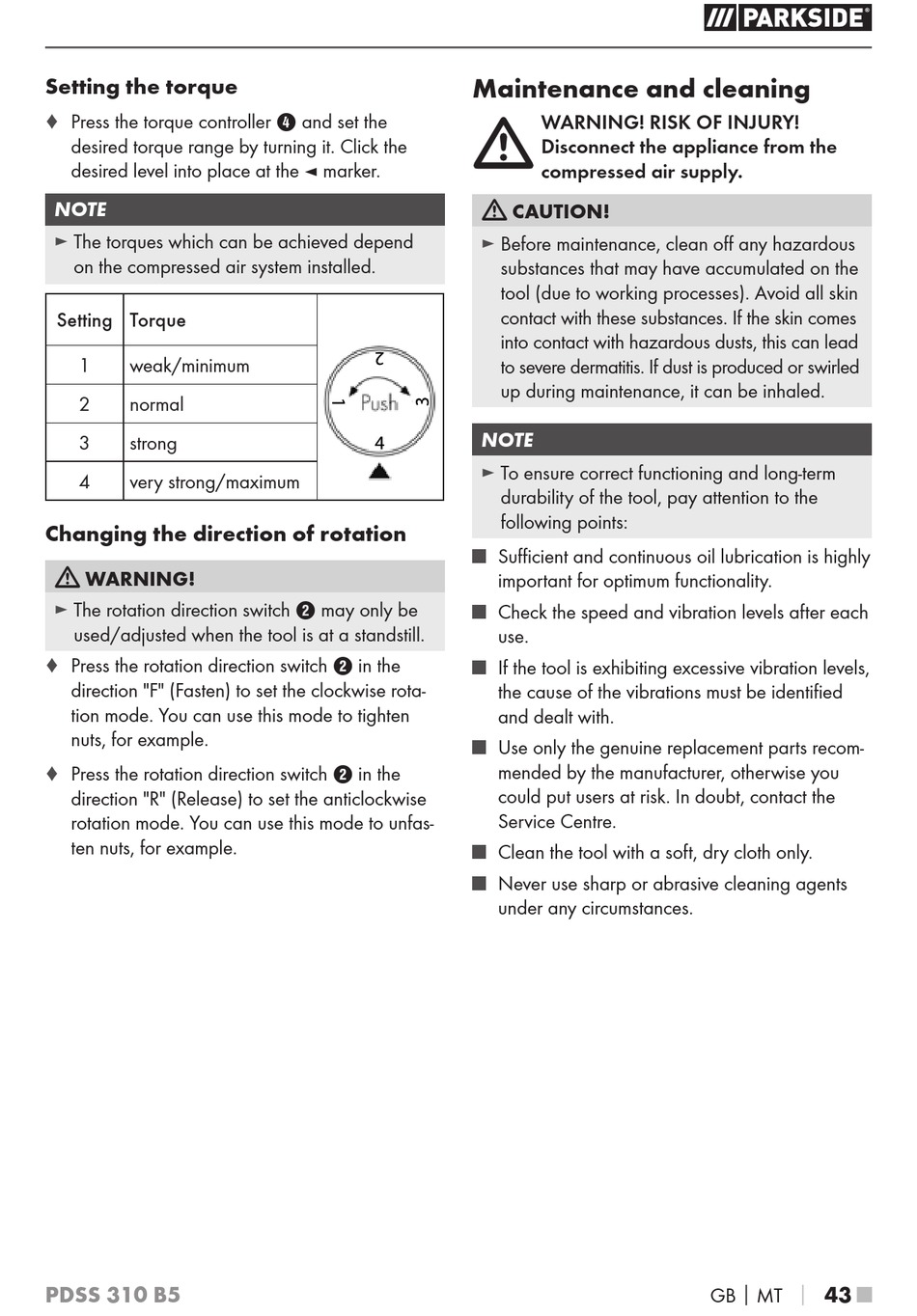

Setting the torque
♦ Press the torque controller 4 and set the
desired torque range by turning it . Click the
desired level into place at the ◄ marker .
NOTE
► The torques which can be achieved depend
on the compressed air system installed .
Setting Torque
1 weak/minimum
2 normal
3 strong
4 very strong/ maximum
Changing the direction of rotation
WARNING!
► The rotation direction switch 2 may only be
used/adjusted when the tool is at a standstill .
♦ Press the rotation direction switch 2 in the
direction "F" (Fasten) to set the clockwise rota-
tion mode . You can use this mode to tighten
nuts, for example .
♦ Press the rotation direction switch 2 in the
direction "R" (Release) to set the anticlockwise
rotation mode . You can use this mode to unfas-
ten nuts, for example .
PDSS 310 B5
Maintenance and cleaning
WARNING! RISK OF INJURY!
Disconnect the appliance from the
compressed air supply.
CAUTION!
► Before maintenance, clean off any hazardous
substances that may have accumulated on the
tool (due to working processes) . Avoid all skin
contact with these substances . If the skin comes
into contact with hazardous dusts, this can lead
to severe dermatitis . If dust is produced or swirled
up during maintenance, it can be inhaled .
NOTE
► To ensure correct functioning and long-term
durability of the tool, pay attention to the
following points:
■ Sufficient and continuous oil lubrication is highly
important for optimum functionality .
■ Check the speed and vibration levels after each
use .
■ If the tool is exhibiting excessive vibration levels,
the cause of the vibrations must be identified
and dealt with .
■ Use only the genuine replacement parts recom-
mended by the manufacturer, otherwise you
could put users at risk . In doubt, contact the
Service Centre .
■ Clean the tool with a soft, dry cloth only .
■ Never use sharp or abrasive cleaning agents
under any circumstances .
