Create Fire Tube Heater Bedienungsanleitung Seite 10

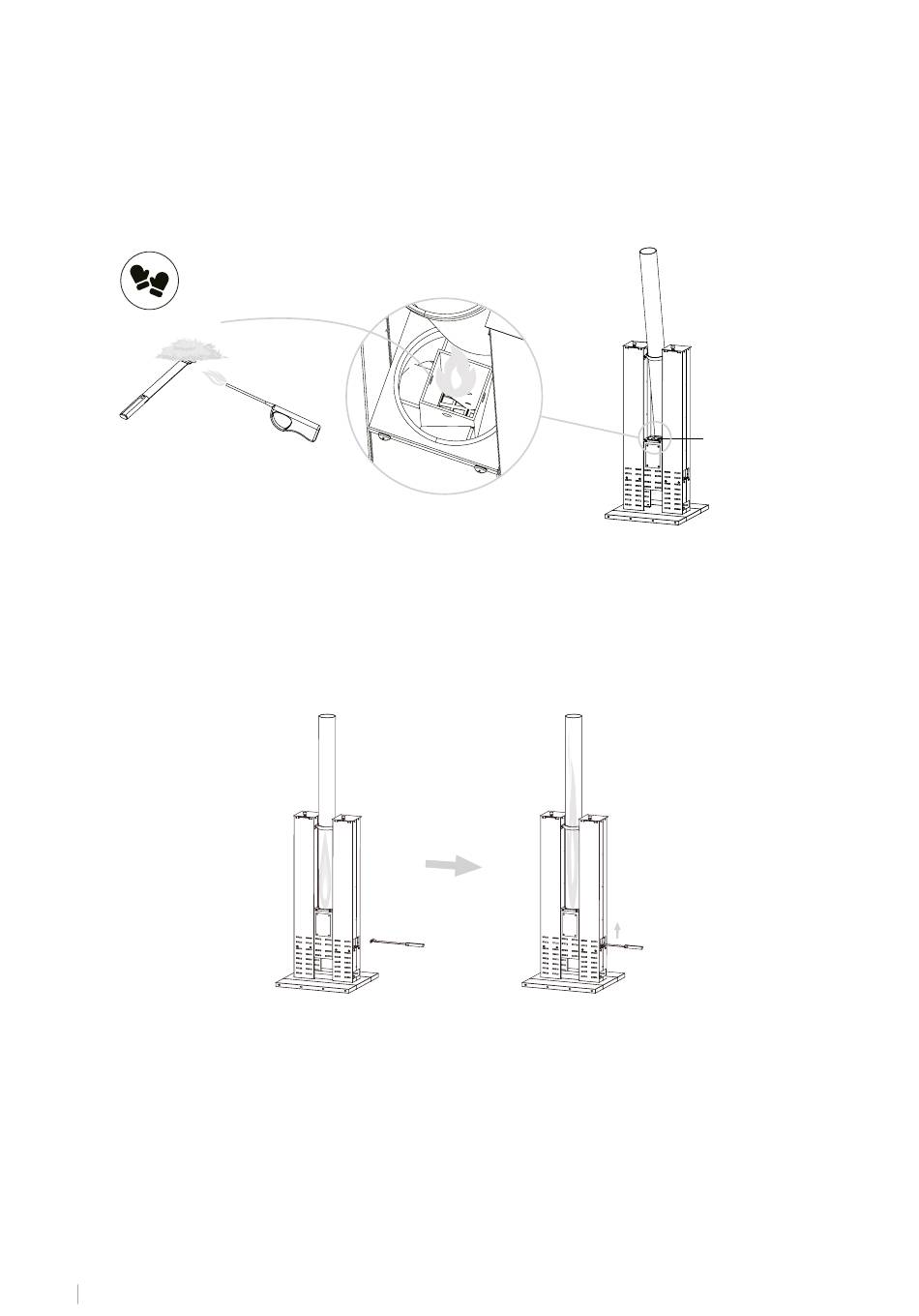

5. After filling the two separate tanks, place the lit natural wood wool lighters in the upper entrance of the combustion
chamber, they will start burning immediately.
Then wait for the flame in the combustion chamber to burn for about 5-8 minutes, then carefully turn the glass tube
(wear heat-resistant gloves) and place it vertically in the combustion chamber. Turn the glass tube slightly so that the
flame passes through the inside of the tube.
At this point, the combustion state of the flame can be observed through the glass tube.
6. Let the fire get going, normally the flame will appear at the top of the tube in 15-20 mins. With a quantity of 3.6kg pellets,
they can burn for about 2 hours before going out.
If the heater does not come on after about one minute, repeat step 5.
2 pcs
* To facilitate complete ignition of the heater, ensure that the flame in the combustion chamber burns for at least 5 minutes,
then slide the glass tube over the combustion chamber.
7. During the combustion process, the flame may diminish to the position of the fixing ring on the glass tube, use the ash
scraper, with the tip of the scraper downwards, gently tap the ash removal port upwards to facilitate ash removal and
accelerate the fall of the pellets into the ash pan. This allows the flame to continuously exit the top outlet of the glass
tube and burn, resulting in better flame viewing and heating effects.
8. Extend the burning time by adding more pellets before the cooker has at least a quarter of a tube of pellets left. Repeat
step 3 to keep the cooker burning.
* Important: In very rare cases the pellet cooker may go out shortly after ignition and produce smoke. If this happens, care-
fully lift the glass tube of the pellet cooker and relight it. You may need heat resistant gloves to remove the glass tube.
Note:
• As the pellet heater starts up, you may notice a buzzing noise coming from the pipe, this is normal. This will diminish once
the pellet cooker reaches full combustion.
• Always allow the cooker to cool completely before dismantling, moving or cleaning.
• Never spray water on the hot pipe or use it if heavy rain is expected. The sudden change in temperature may cause the
glass to break. Light rainfall will not damage the glass.
10 E N GL ISH
Combustion chamber
