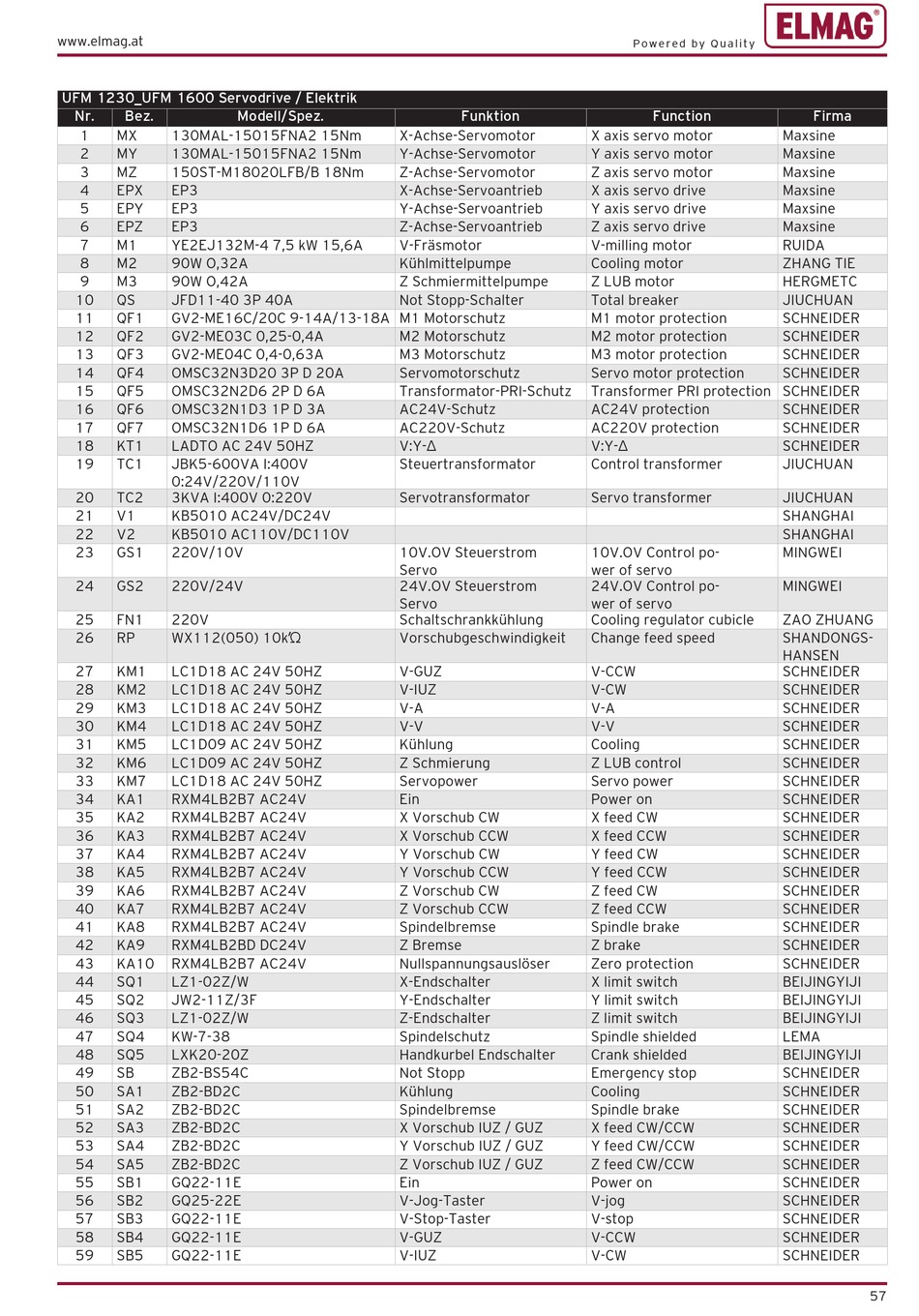

UFM 1230_UFM 1600 Servodrive / Elektrik
Nr.
Bez.
1
MX
130MAL-15015FNA2 15Nm
2
MY
130MAL-15015FNA2 15Nm
3
MZ
150ST-M18020LFB/B 18Nm
4
EPX
EP3
5
EPY
EP3
6
EPZ
EP3
7
M1
YE2EJ132M-4 7,5 kW 15,6A
8
M2
90W O,32A
9
M3
90W O,42A
10
QS
JFD11-40 3P 40A
11
QF1
GV2-ME16C/20C 9-14A/13-18A M1 Motorschutz
12
QF2
GV2-ME03C 0,25-0,4A
13
QF3
GV2-ME04C 0,4-0,63A
14
QF4
OMSC32N3D20 3P D 20A
15
QF5
OMSC32N2D6 2P D 6A
16
QF6
OMSC32N1D3 1P D 3A
17
QF7
OMSC32N1D6 1P D 6A
18
KT1
LADTO AC 24V 50HZ
19
TC1
JBK5-600VA I:400V
0:24V/220V/110V
20
TC2
3KVA I:400V 0:220V
21
V1
KB5010 AC24V/DC24V
22
V2
KB5010 AC110V/DC110V
23
GS1
220V/10V
24
GS2
220V/24V
25
FN1
220V
26
RP
WX112(050) 10k
27
KM1
LC1D18 AC 24V 50HZ
28
KM2
LC1D18 AC 24V 50HZ
29
KM3
LC1D18 AC 24V 50HZ
30
KM4
LC1D18 AC 24V 50HZ
31
KM5
LC1D09 AC 24V 50HZ
32
KM6
LC1D09 AC 24V 50HZ
33
KM7
LC1D18 AC 24V 50HZ
34
KA1
RXM4LB2B7 AC24V
35
KA2
RXM4LB2B7 AC24V
36
KA3
RXM4LB2B7 AC24V
37
KA4
RXM4LB2B7 AC24V
38
KA5
RXM4LB2B7 AC24V
39
KA6
RXM4LB2B7 AC24V
40
KA7
RXM4LB2B7 AC24V
41
KA8
RXM4LB2B7 AC24V
42
KA9
RXM4LB2BD DC24V
43
KA10
RXM4LB2B7 AC24V
44
SQ1
LZ1-02Z/W
45
SQ2
JW2-11Z/3F
46
SQ3
LZ1-02Z/W
47
SQ4
KW-7-38
48
SQ5
LXK20-20Z
49
SB
ZB2-BS54C
50
SA1
ZB2-BD2C
51
SA2
ZB2-BD2C
52
SA3
ZB2-BD2C
53
SA4
ZB2-BD2C
54
SA5
ZB2-BD2C
55
SB1
GQ22-11E
56
SB2
GQ25-22E
57
SB3
GQ22-11E
58
SB4
GQ22-11E
59
SB5
GQ22-11E
Modell/Spez.
X-Achse-Servomotor
Y-Achse-Servomotor
Z-Achse-Servomotor
X-Achse-Servoantrieb
Y-Achse-Servoantrieb
Z-Achse-Servoantrieb
V-Fräsmotor
Kühlmittelpumpe
Z Schmiermittelpumpe
Not Stopp-Schalter
M2 Motorschutz
M3 Motorschutz
Servomotorschutz
Transformator-PRI-Schutz
AC24V-Schutz
AC220V-Schutz
V:Y-
Steuertransformator
Servotransformator
10V.OV Steuerstrom
Servo
24V.OV Steuerstrom
Servo
Schaltschrankkühlung
Vorschubgeschwindigkeit
V-GUZ
V-IUZ
V-A
V-V
Kühlung
Z Schmierung
Servopower
Ein
X Vorschub CW
X Vorschub CCW
Y Vorschub CW
Y Vorschub CCW
Z Vorschub CW
Z Vorschub CCW
Spindelbremse
Z Bremse
Nullspannungsauslöser
X-Endschalter
Y-Endschalter
Z-Endschalter
Spindelschutz
Handkurbel Endschalter
Not Stopp
Kühlung
Spindelbremse
X Vorschub IUZ / GUZ
Y Vorschub IUZ / GUZ
Z Vorschub IUZ / GUZ
Ein
V-Jog-Taster
V-Stop-Taster
V-GUZ
V-IUZ
P o w e r e d b y Q u a l i t y
Funktion
X axis servo motor
Y axis servo motor
Z axis servo motor
X axis servo drive
Y axis servo drive
Z axis servo drive
V-milling motor
Cooling motor
Z LUB motor
Total breaker
M1 motor protection
M2 motor protection
M3 motor protection
Servo motor protection
Transformer PRI protection SCHNEIDER
AC24V protection
AC220V protection
V:Y-
Control transformer
Servo transformer
10V.OV Control po-
wer of servo
24V.OV Control po-
wer of servo
Cooling regulator cubicle
Change feed speed
V-CCW
V-CW
V-A
V-V
Cooling
Z LUB control
Servo power
Power on
X feed CW
X feed CCW
Y feed CW
Y feed CCW
Z feed CW
Z feed CCW
Spindle brake
Z brake
Zero protection
X limit switch
Y limit switch
Z limit switch
Spindle shielded
Crank shielded
Emergency stop
Cooling
Spindle brake
X feed CW/CCW
Y feed CW/CCW
Z feed CW/CCW
Power on
V-jog
V-stop
V-CCW
V-CW
Function
Firma
Maxsine
Maxsine
Maxsine
Maxsine
Maxsine
Maxsine
RUIDA
ZHANG TIE
HERGMETC
JIUCHUAN
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
JIUCHUAN
JIUCHUAN
SHANGHAI
SHANGHAI
MINGWEI
MINGWEI
ZAO ZHUANG
SHANDONGS-
HANSEN
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
BEIJINGYIJI
BEIJINGYIJI
BEIJINGYIJI
LEMA
BEIJINGYIJI
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
SCHNEIDER
57
