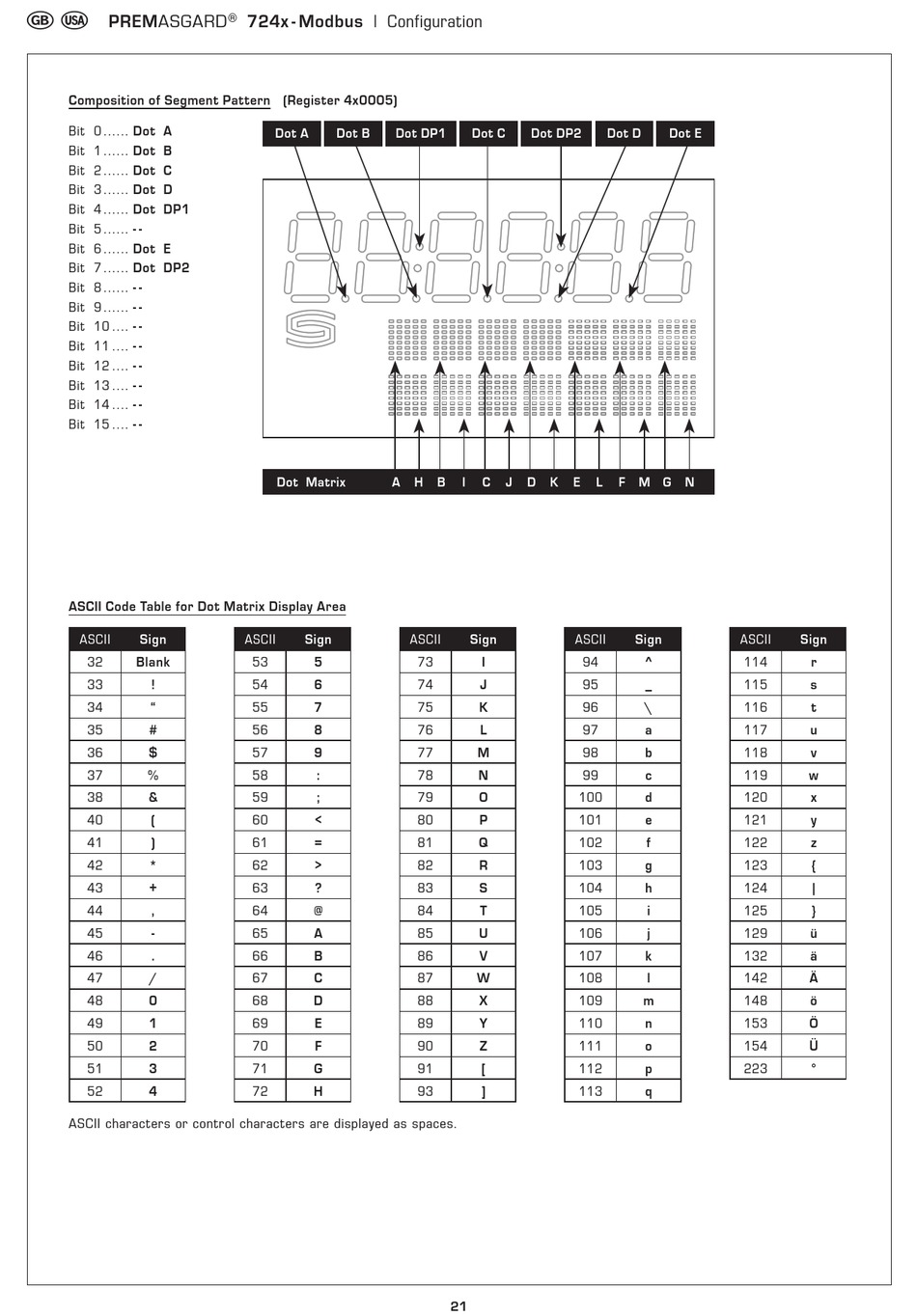

Composition of Segment Pattern (Register 4x0005)
Bit 0 ...... Dot A
Bit 1 ...... Dot B
Bit 2 ...... Dot C
Bit 3 ...... Dot D
Bit 4 ...... Dot DP1
Bit 5 ...... - -
Bit 6 ...... Dot E
Bit 7 ...... Dot DP2
Bit 8 ...... - -
Bit 9 ...... - -
Bit 10 .... - -
Bit 11 .... - -
Bit 12 .... - -
Bit 13 .... - -
Bit 14 .... - -
Bit 15 .... - -
ASCII Code Table for Dot Matrix Display Area
ASCII Sign
Blank
32
33 !
34 "
35 #
36 $
%
37
38 &
40 (
41 )
42 *
+
43
44 ,
45 -
46 .
47 /
0
48
49 1
50 2
51 3
52 4
ASCII characters or control characters are displayed as spaces.
®
724x - Modbus | Configuration
Dot A Dot B Dot DP1
Dot Matrix A H B
ASCII Sign
5
53
54 6
55 7
56 8
57 9
:
58
59 ;
60 <
61 =
62 >
?
63
64 @
65 A
66 B
67 C
D
68
69 E
70 F
71 G
72 H
Dot C Dot DP2
I C J D K E
ASCII Sign ASCII
I
73 94
74 J 95
75 K 96
76 L 97
77 M 98
N
78 99
79 O 100
80 P 101
81 Q 102
82 R 103
S
83 104
84 T 105
85 U 106
86 V 107
87 W 108
X
88 109
89 Y 110
90 Z 111
91 [ 112
93 ] 113
21
Dot D Dot E
L F M G N
Sign ASCII
^
114
_ 115
\ 116
a 117
b 118
c
119
d 120
e 121
f 122
g 123
h
124
i 125
j 129
k 132
l 142
m
148
n 153
o 154
p 223
q
Sign
r
s
t
u
v
w
x
y
z
{
|
}
ü
ä
Ä
ö
Ö
Ü
°
