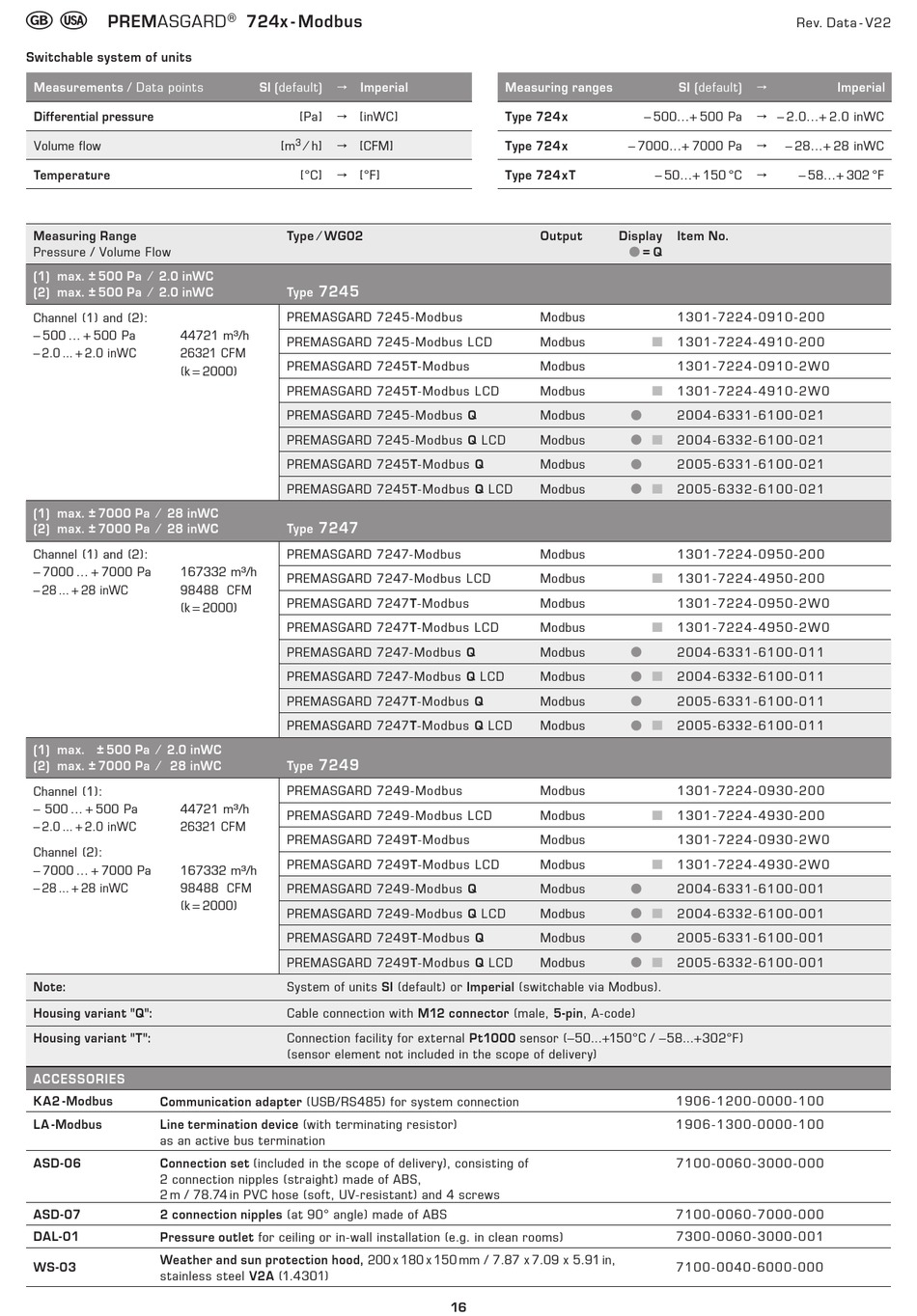

S+S REGELTECHNIK PREMASGARD 724 Modbus Serie Bedienungs- Und Montageanleitung Seite 16

G U
PREMASGARD
Switchable system of units
Measurements / Data points
Differential pressure
Volume flow
Temperature
Measuring Range
Pressure / Volume Flow
(1) max. ± 500 Pa ⁄ 2.0 inWC
(2) max. ± 500 Pa ⁄ 2.0 inWC
Channel (1) and (2):
– 500 ... + 500 Pa 44721 m³/h
– 2.0 ... + 2.0 inWC 26321 CFM
(k = 2000)
(1) max. ± 7000 Pa ⁄ 28 inWC
(2) max. ± 7000 Pa ⁄ 28 inWC
Channel (1) and (2):
– 7000 ... + 7000 Pa 167332 m³/h
– 28 ... + 28 inWC 98488 CFM
(k = 2000)
(1) max. ± 500 Pa ⁄ 2.0 inWC
(2) max. ± 7000 Pa ⁄ 28 inWC
Channel (1):
– 500 ... + 500 Pa 44721 m³/h
– 2.0 ... + 2.0 inWC 26321 CFM
Channel (2):
– 7000 ... + 7000 Pa 167332 m³/h
– 28 ... + 28 inWC 98488 CFM
(k = 2000)
Note:
Housing variant "Q":
Housing variant "T":
ACCESSORIES
KA2 -Modbus
Communication adapter (USB/RS485) for system connection
LA -Modbus Line termination device (with terminating resistor)
as an active bus termination
ASD-06 Connection set (included in the scope of delivery), consisting of
2 connection nipples (straight) made of ABS,
2 m / 78.74 in PVC hose (soft, UV-resistant) and 4 screws
ASD-07
2 connection nipples (at 90° angle) made of ABS
DAL-01
Pressure outlet for ceiling or in-wall installation (e.g. in clean rooms)
Weather and sun protection hood, 200 x 180 x 150 mm / 7.87 x 7.09 x 5.91 in,
WS-03
stainless steel V2A (1.4301)
®
724x - Modbus
SI (default) → Imperial
[Pa] → [inWC]
[m 3 ⁄ h] → [CFM]
[°C] → [°F]
Type ⁄ WG02
7245
Type
PREMASGARD 7245-Modbus
PREMASGARD 7245-Modbus LCD
PREMASGARD 7245T-Modbus
PREMASGARD 7245T-Modbus LCD
PREMASGARD 7245-Modbus Q
PREMASGARD 7245-Modbus Q LCD
PREMASGARD 7245T-Modbus Q
PREMASGARD 7245T-Modbus Q LCD
7247
Type
PREMASGARD 7247-Modbus
PREMASGARD 7247-Modbus LCD
PREMASGARD 7247T-Modbus
PREMASGARD 7247T-Modbus LCD
PREMASGARD 7247-Modbus Q
PREMASGARD 7247-Modbus Q LCD
PREMASGARD 7247T-Modbus Q
PREMASGARD 7247T-Modbus Q LCD
7249
Type
PREMASGARD 7249-Modbus
PREMASGARD 7249-Modbus LCD
PREMASGARD 7249T-Modbus
PREMASGARD 7249T-Modbus LCD
PREMASGARD 7249-Modbus Q
PREMASGARD 7249-Modbus Q LCD
PREMASGARD 7249T-Modbus Q
PREMASGARD 7249T-Modbus Q LCD
System of units SI (default) or Imperial (switchable via Modbus).
Cable connection with M12 connector (male, 5-pin, A-code)
Connection facility for external Pt1000 sensor (–50...+150°C / –58...+302°F)
(sensor element not included in the scope of delivery)
Measuring ranges
Type 724x
Type 724x
Type 724xT
Output Display
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
Modbus
16
Rev. Data - V22
SI (default) →
– 500...+ 500 Pa → – 2.0...+ 2.0 inWC
– 7000...+ 7000 Pa → – 28...+ 28 inWC
– 50...+ 150 °C → – 58...+ 302 °F
Item No.
= Q
1301- 7224-09 10-200
■ 1301- 7224-49 10-200
1301- 7224- 0910-2W 0
■ 1301- 7224-491 0-2W 0
2004- 6331- 6100-021
■ 2004- 6332-6100- 021
2005- 6331- 6100-021
■ 2005- 6332-6100- 021
1301- 7224- 0950-200
■ 1301- 7224- 4950-200
1301- 7224-0950 -2W 0
■ 1301- 7224-4950 -2W 0
2004- 6331- 6100-011
■ 2004- 6332-6100- 011
2005- 6331- 6100-011
■ 2005- 6332-6100- 011
1301- 7224- 0930-200
■ 1301- 7224- 4930-200
1301- 7224- 0930- 2W0
■ 1301- 7224- 4930- 2W0
2004- 6331- 6100-001
■ 2004- 6332-6100- 001
2005- 6331- 6100-001
■ 2005- 6332-6100- 001
1906- 1200- 0000-100
1906- 1300- 0000-100
7100- 0060- 3000-000
7100-0060- 7000-000
7300- 0060-3000- 001
7100-0040- 6000- 000
Imperial
