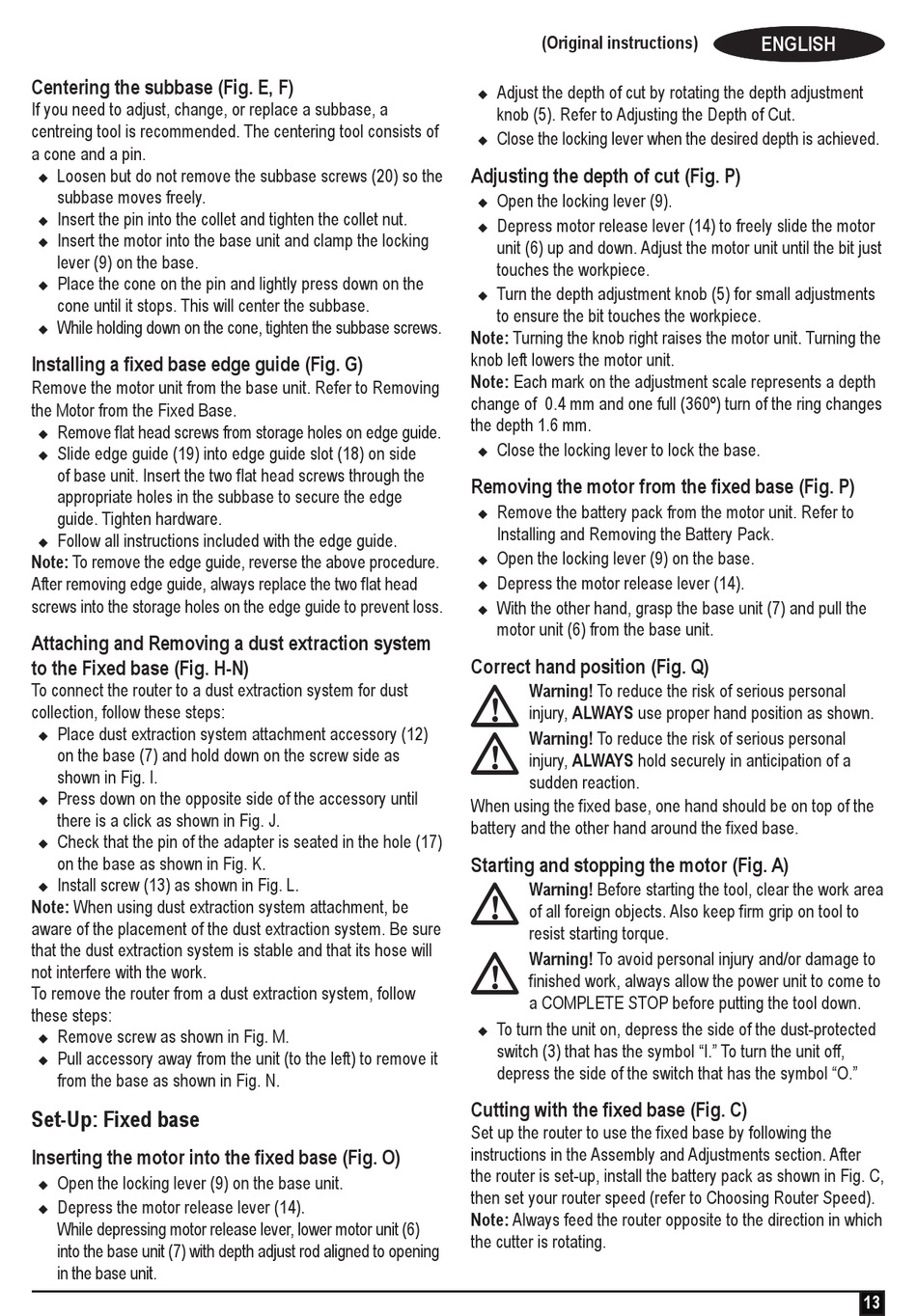

Centering the subbase (Fig. E, F)
If you need to adjust, change, or replace a subbase, a
centreing tool is recommended. The centering tool consists of
a cone and a pin.
Loosen but do not remove the subbase screws (20) so the
u
subbase moves freely.
Insert the pin into the collet and tighten the collet nut.
u
Insert the motor into the base unit and clamp the locking
u
lever (9) on the base.
Place the cone on the pin and lightly press down on the
u
cone until it stops. This will center the subbase.
While holding down on the cone, tighten the subbase screws.
u
Installing a fixed base edge guide (Fig. G)
Remove the motor unit from the base unit. Refer to Removing
the Motor from the Fixed Base.
Remove flat head screws from storage holes on edge guide.
u
Slide edge guide (19) into edge guide slot (18) on side
u
of base unit. Insert the two flat head screws through the
appropriate holes in the subbase to secure the edge
guide. Tighten hardware.
Follow all instructions included with the edge guide.
u
Note: To remove the edge guide, reverse the above procedure.
After removing edge guide, always replace the two flat head
screws into the storage holes on the edge guide to prevent loss.
Attaching and Removing a dust extraction system
to the Fixed base (Fig. H-N)
To connect the router to a dust extraction system for dust
collection, follow these steps:
Place dust extraction system attachment accessory (12)
u
on the base (7) and hold down on the screw side as
shown in Fig. I.
Press down on the opposite side of the accessory until
u
there is a click as shown in Fig. J.
Check that the pin of the adapter is seated in the hole (17)
u
on the base as shown in Fig. K.
Install screw (13) as shown in Fig. L.
u
Note: When using dust extraction system attachment, be
aware of the placement of the dust extraction system. Be sure
that the dust extraction system is stable and that its hose will
not interfere with the work.
To remove the router from a dust extraction system, follow
these steps:
Remove screw as shown in Fig. M.
u
Pull accessory away from the unit (to the left) to remove it
u
from the base as shown in Fig. N.
Set-Up: Fixed base
Inserting the motor into the fixed base (Fig. O)
Open the locking lever (9) on the base unit.
u
Depress the motor release lever (14).
u
While depressing motor release lever, lower motor unit (6)
into the base unit (7) with depth adjust rod aligned to opening
in the base unit.
(Original instructions)
Adjust the depth of cut by rotating the depth adjustment
u
knob (5). Refer to Adjusting the Depth of Cut.
Close the locking lever when the desired depth is achieved.
u
Adjusting the depth of cut (Fig. P)
Open the locking lever (9).
u
Depress motor release lever (14) to freely slide the motor
u
unit (6) up and down. Adjust the motor unit until the bit just
touches the workpiece.
Turn the depth adjustment knob (5) for small adjustments
u
to ensure the bit touches the workpiece.
Note: Turning the knob right raises the motor unit. Turning the
knob left lowers the motor unit.
Note: Each mark on the adjustment scale represents a depth
change of 0.4 mm and one full (360º) turn of the ring changes
the depth 1.6 mm.
Close the locking lever to lock the base.
u
Removing the motor from the fixed base (Fig. P)
Remove the battery pack from the motor unit. Refer to
u
Installing and Removing the Battery Pack.
Open the locking lever (9) on the base.
u
Depress the motor release lever (14).
u
With the other hand, grasp the base unit (7) and pull the
u
motor unit (6) from the base unit.
@
Correct hand position (Fig. Q)
Warning! To reduce the risk of serious personal
@
injury, ALWAYS use proper hand position as shown.
Warning! To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
sudden reaction.
When using the fixed base, one hand should be on top of the
battery and the other hand around the fixed base.
@
Starting and stopping the motor (Fig. A)
Warning! Before starting the tool, clear the work area
of all foreign objects. Also keep firm grip on tool to
@
resist starting torque.
Warning! To avoid personal injury and/or damage to
finished work, always allow the power unit to come to
a COMPLETE STOP before putting the tool down.
To turn the unit on, depress the side of the dust-protected
u
switch (3) that has the symbol "I." To turn the unit off,
depress the side of the switch that has the symbol "O."
Cutting with the fixed base (Fig. C)
Set up the router to use the fixed base by following the
instructions in the Assembly and Adjustments section. After
the router is set-up, install the battery pack as shown in Fig. C,
then set your router speed (refer to Choosing Router Speed).
Note: Always feed the router opposite to the direction in which
the cutter is rotating.
