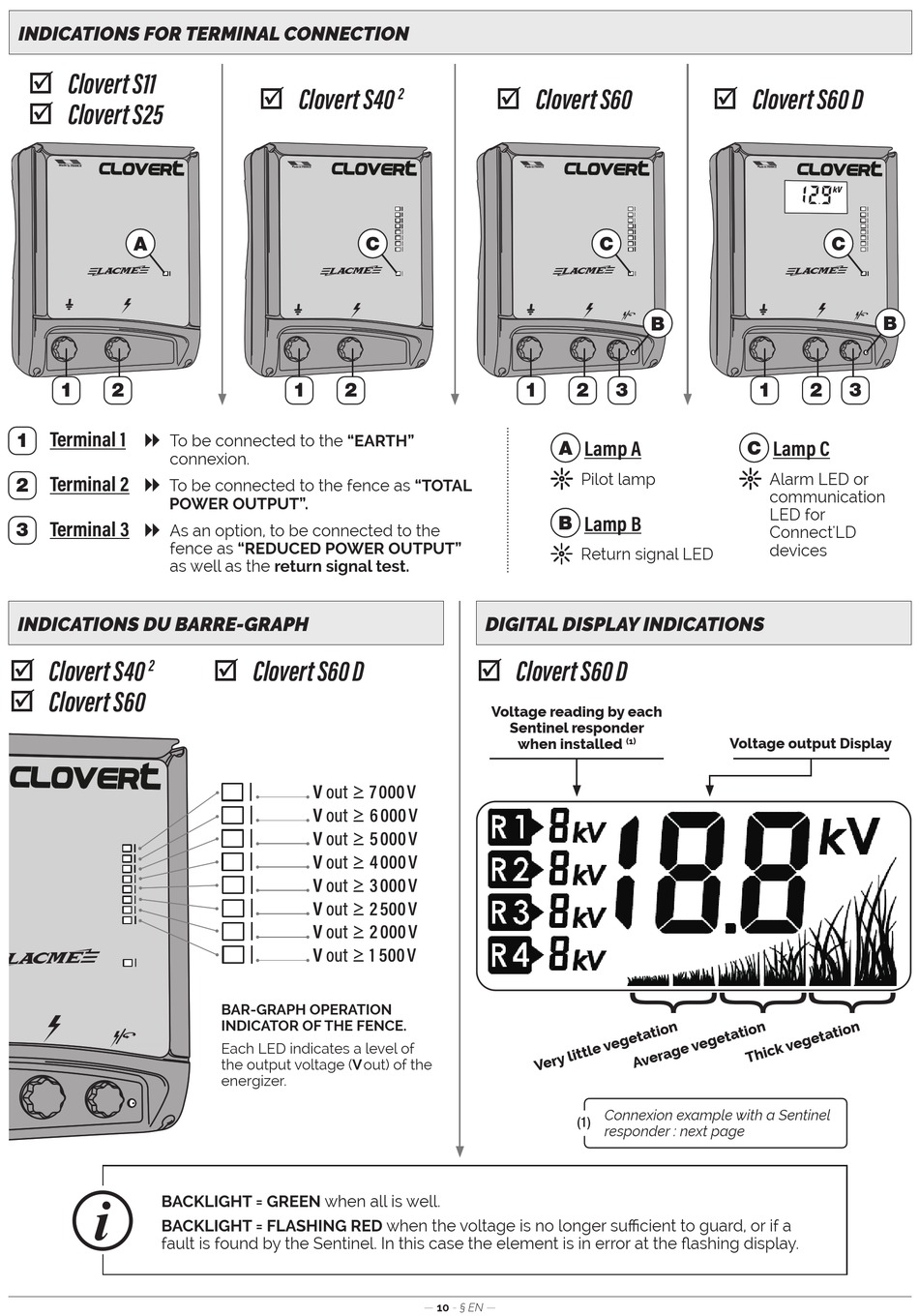

INDICATIONS FOR TERMINAL CONNECTION
 Clovert S11
 Clovert S25
A
1 2
Terminal 1 
1
To be connected to the "EARTH"
connexion.
Terminal 2 
2
To be connected to the fence as "TOTAL
POWER OUTPUT".
Terminal 3 
3
As an option, to be connected to the
fence as "REDUCED POWER OUTPUT"
as well as the return signal test.
INDICATIONS DU BARRE-GRAPH
 Clovert S40
2
 Clovert S60
BACKLIGHT = GREEN when all is well.
BACKLIGHT = FLASHING RED when the voltage is no longer sufficient to guard, or if a
fault is found by the Sentinel. In this case the element is in error at the flashing display.
 Clovert S40
C
1 2
 Clovert S60 D
V out ≥ 7 000 V
V out ≥ 6 000 V
V out ≥ 5 000 V
V out ≥ 4 000 V
V out ≥ 3 000 V
V out ≥ 2 500 V
V out ≥ 2 000 V
V out ≥ 1 500 V
BAR-GRAPH OPERATION
INDICATOR OF THE FENCE.
Each LED indicates a level of
the output voltage (V out) of the
energizer.
 Clovert S60
2
1
A
B
DIGITAL DISPLAY INDICATIONS
 Clovert S60 D
Voltage reading by each
Sentinel responder
when installed
— 10 - § EN —
 Clovert S60 D
C
B
2 3
Lamp A
C
Pilot lamp
Lamp B
Return signal LED
Voltage output Display
(1)
Connexion example with a Sentinel
(1)
responder : next page
C
B
1 2 3
Lamp C
Alarm LED or
communication
LED for
Connect'LD
devices
