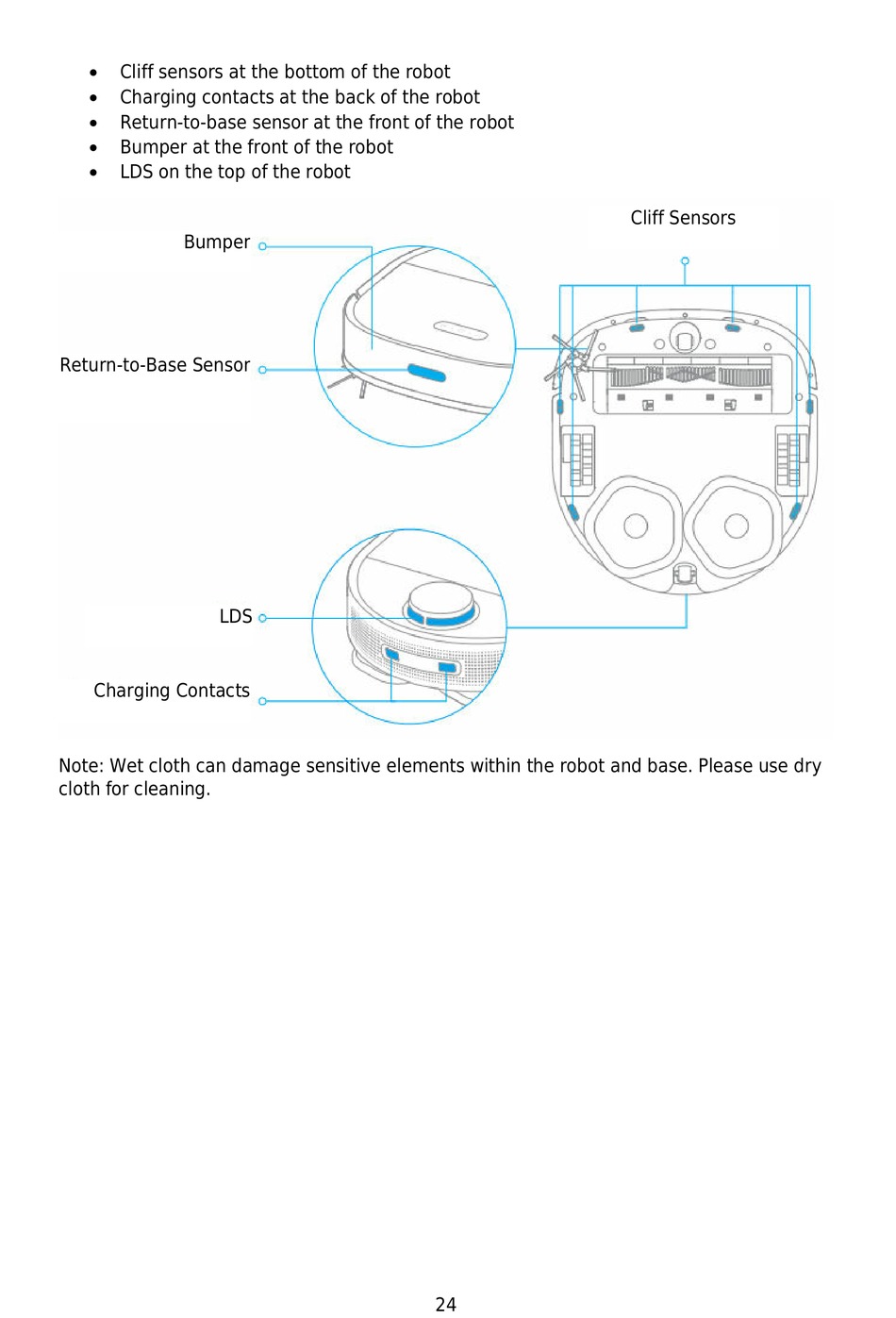

Cliff sensors at the bottom of the robot

Charging contacts at the back of the robot

Return-to-base sensor at the front of the robot

Bumper at the front of the robot

LDS on the top of the robot
Bumper
Return-to-Base Sensor
LDS
Charging Contacts
Note: Wet cloth can damage sensitive elements within the robot and base. Please use dry
cloth for cleaning.
24
Cliff Sensors
