General
General
With the OPT/CU Torch Deflate option, the "Drain/fill torch hosepack" setup pa-
rameter is available in the power source setup menu.
This function can be used to transport the coolant from the welding torch ho-
sepack back to the coolant tank, for example when changing the torch body.
The power source does not have to be switched off.
NOTE!
When draining long hosepacks > 8 m, a fully filled coolant tank can overflow -
risk of slipping!
▶
▶
If the coolant temperature is < 50 °C, the draining process is started via the set-
up menu of the power source or the welding torch and takes up to 60 seconds.
Requirements
The OPT/CU Torch Deflate can only be installed in cooling units with a FKS 3200
PC board version ≥ 1.5.
The PC board version can be retrieved with the SmartManager of the power
source under
Overview / CU xxxx / FKS3200.

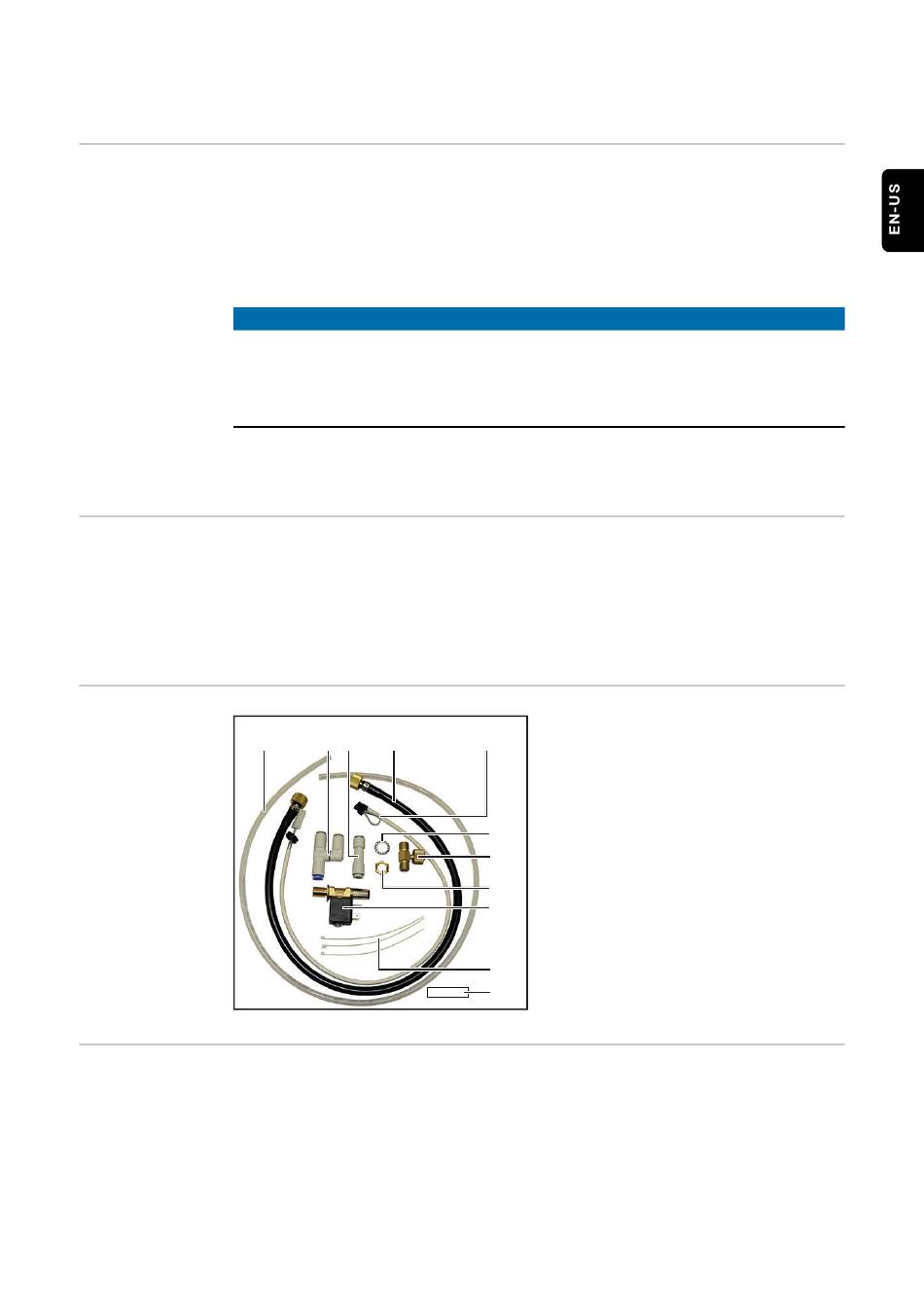

Scope of supply
Required tools
-
-
-
-
Check the level in the coolant tank before emptying the torch hosepack.
Follow the Operating Instructions for the cooling unit and power source.
(1)
(2) (3)
(4)
Torx screwdriver TX25
Hose cutters
17 mm wrench
Diagonal cutting pliers
(1)
White hose
(5)
(2)
Shuttle valve
(3)
Non-return valve
(4)
Gas hose
(5)
Cable
(6)
Serrated washer
(6)
(7)
T connector
(7)
(8)
17 mm hexagonal nut
(8)
(9)
Solenoid valve
(9)
(10)
3 cable ties
(11)
1-4 bar sticker
(10)
(11)
1-4 Bar
9
