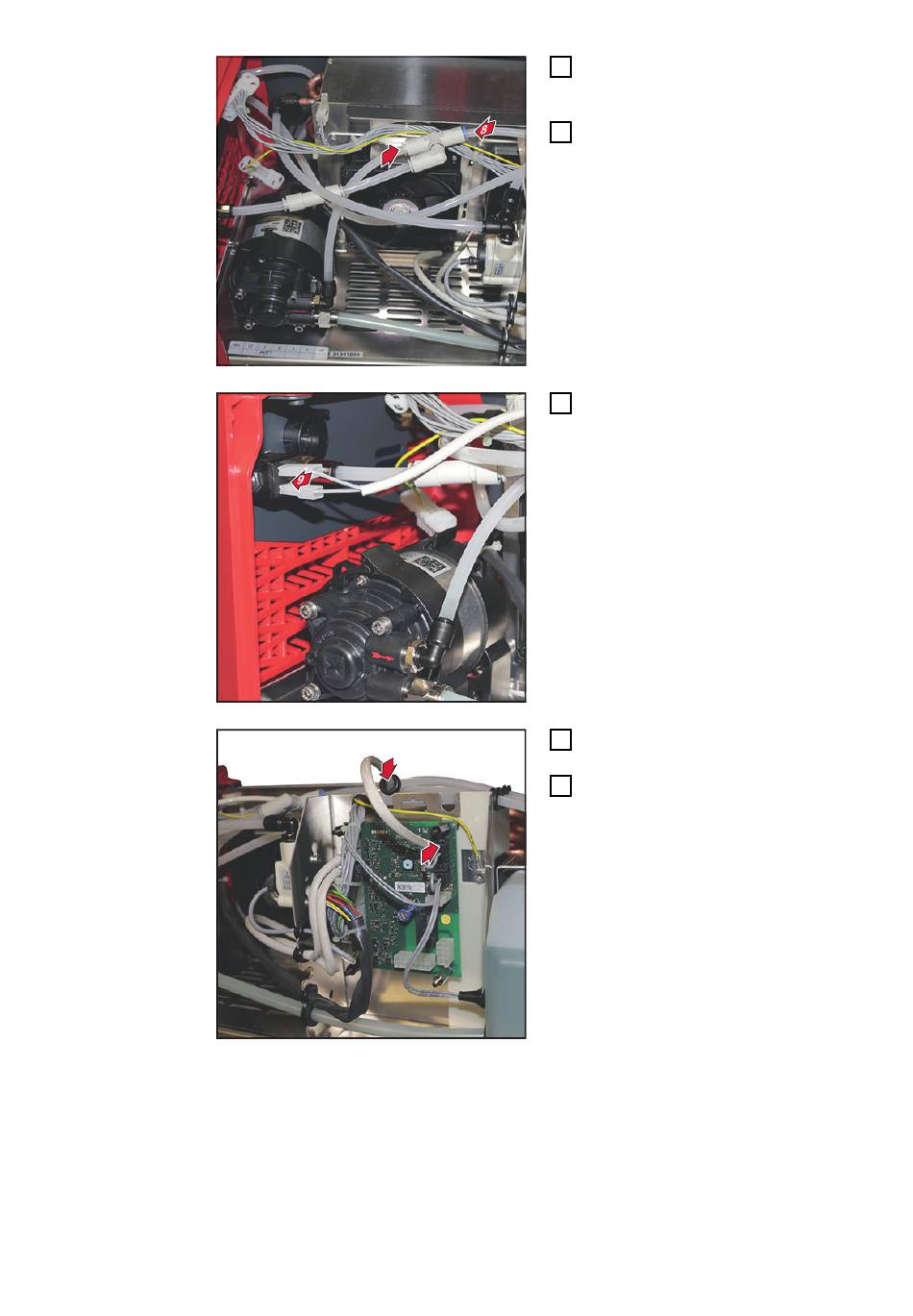

Connect the end of the hose from
7
the pump to the Y-connector as
shown
Attach the remaining end of the
8
hose to the Y-connector as shown
(blue connection)
Connect the tab connector from
9
the cable to the solenoid valve
Connect the 8-pin Molex connec-
tor from the cable to the PC board
Insert the cable with rubber bus-
hing into the recess
