1 Beschreibung
Der Strömungswächter (siehe Fig. 1) wird zur
Strömungs überwachung von flüssigen oder
gasförmigen Medien eingesetzt. Die folgenden
Gerätemerkmale steigern die Zuver lässigkeit und
erhöhen die Betriebssicherheit:
• Die Überwachung erfolgt - ohne mechanisch bewegte
Teile - nach dem kalorimetrischen Prinzip.
• Der gewünschte MIN- oder MAX-Schaltpunkt ist
stufenlos einstellbar und wird mittels LED (gelb)
signalisiert.
• Die Mediumsart (Wasser, Öl, Luft oder Medien
mit ähnlicher Wärmeleitfähigkeit) kann bei der
Bestellung gewählt werden.
• Mit Schraubmesskopf oder Einsteckmesskopf
für Sensoradapter TP, Kugelhahn BV und
Anschweißstutzen. Der Sensoradapter TP-... (siehe
Fig. 2) ermöglicht den lagegenauen Einbau und
Austausch des FS10. Der Kugelhahn BV-... (siehe
Fig. 2) ermöglicht darüber hinaus jeder zeit den
Einbau oder Austausch des FS10 durch Schließen
der Zu- und Ablaufl eitung.
Gewindeanschluss
Screw-in type process connection
ø38
ø18
G1/2A
DIN 3852 Form A
DIN 3852 form A
Flow Switch
-
+
ON
Q
Adj.
M12x1
BESCHREIBUNG | DESCRIPTION
SW27
SW27
ø17.5
NPT1/2"-14
Alle Maße in mm
All dimensions in mm
FS10 | Flow Monitor
1 Description
This Flow Monitor (see fig. 1) is designed to monitor
the flow of liquids and gases. Important operational
safety and reliability enhancing features designed
and built into these units include:
• Calorimetric flow monitoring, which avoids the
need for moving parts in the flow stream.
• The desired MIN or MAX switch point is steplessly
adjustable and is clearly indi cated by LED (yellow).
• The type of medium (water, oil, air or media with
similar thermal conductivities) can be selected
when ordering.
• With screw-in or plug-in type monitoring head for
sensor adapter TP, ball valve BV and welded fitting.
The sensor adapter TP-... (see fig. 2) facilitates
correct positioning and replacement of the FS 10.
The ball valve BV-... (see fig. 2) enables installation
or removal of the FS 10 by closing the input and
output pipe.
Einsteckanschluss
Plug-in type process connection
ø38
Arretierungsnut
locking slot
ø18
SW30
Flow Switch
-
+
ON
Q
Adj.
M12x1
O-Ring 15,3x2,2 FPM (Viton)
in Anlehnung an DIN ISO 6149
O-ring 15.3x2.2 FPM (Viton)
following DIN ISO 6149
Überwurfmutter G3/4"
cap nut G3/4"

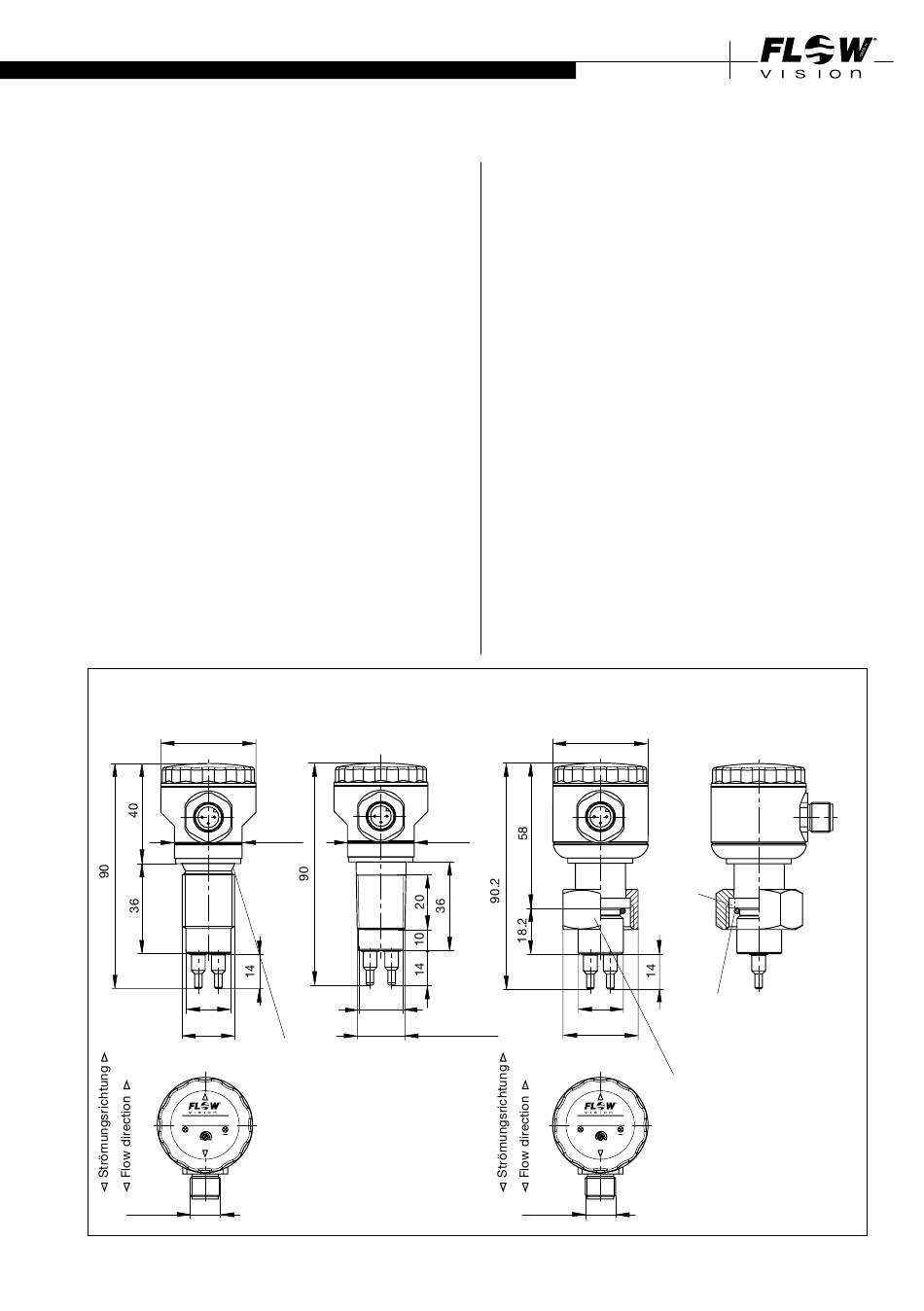

Fig. 1
3
