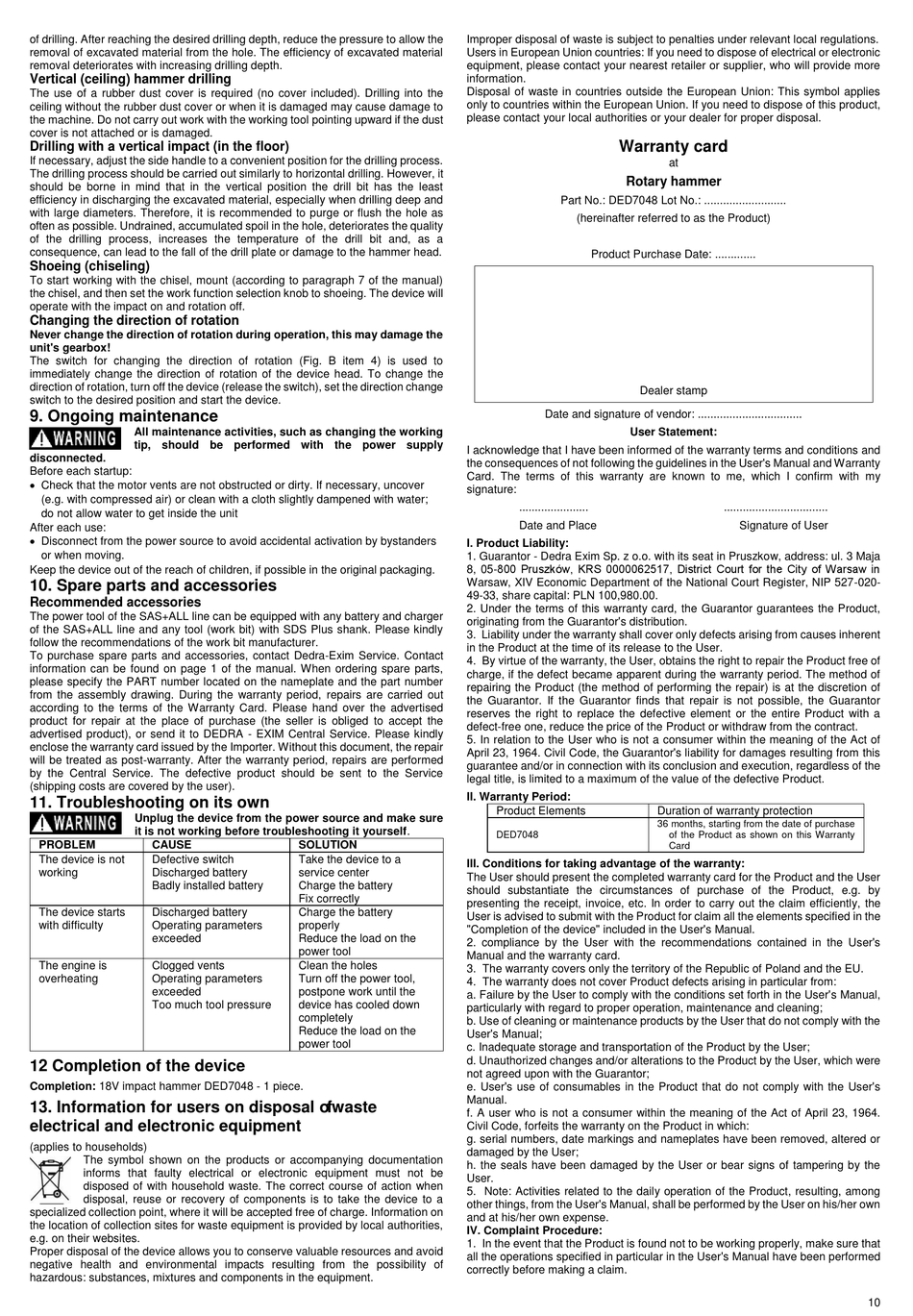

of drilling. After reaching the desired drilling depth, reduce the pressure to allow the
removal of excavated material from the hole. The efficiency of excavated material
removal deteriorates with increasing drilling depth.
Vertical (ceiling) hammer drilling
The use of a rubber dust cover is required (no cover included). Drilling into the
ceiling without the rubber dust cover or when it is damaged may cause damage to
the machine. Do not carry out work with the working tool pointing upward if the dust
cover is not attached or is damaged.
Drilling with a vertical impact (in the floor)
If necessary, adjust the side handle to a convenient position for the drilling process.
The drilling process should be carried out similarly to horizontal drilling. However, it
should be borne in mind that in the vertical position the drill bit has the least
efficiency in discharging the excavated material, especially when drilling deep and
with large diameters. Therefore, it is recommended to purge or flush the hole as
often as possible. Undrained, accumulated spoil in the hole, deteriorates the quality
of the drilling process, increases the temperature of the drill bit and, as a
consequence, can lead to the fall of the drill plate or damage to the hammer head.
Shoeing (chiseling)
To start working with the chisel, mount (according to paragraph 7 of the manual)
the chisel, and then set the work function selection knob to shoeing. The device will
operate with the impact on and rotation off.
Changing the direction of rotation
Never change the direction of rotation during operation, this may damage the
unit's gearbox!
The switch for changing the direction of rotation (Fig. B item 4) is used to
immediately change the direction of rotation of the device head. To change the
direction of rotation, turn off the device (release the switch), set the direction change
switch to the desired position and start the device.
9. Ongoing maintenance
All maintenance activities, such as changing the working
tip, should be performed with the power supply
disconnected.
Before each startup:
Check that the motor vents are not obstructed or dirty. If necessary, uncover
(e.g. with compressed air) or clean with a cloth slightly dampened with water;
do not allow water to get inside the unit
After each use:
Disconnect from the power source to avoid accidental activation by bystanders
or when moving.
Keep the device out of the reach of children, if possible in the original packaging.
10. Spare parts and accessories
Recommended accessories
The power tool of the SAS+ALL line can be equipped with any battery and charger
of the SAS+ALL line and any tool (work bit) with SDS Plus shank. Please kindly
follow the recommendations of the work bit manufacturer.
To purchase spare parts and accessories, contact Dedra-Exim Service. Contact
information can be found on page 1 of the manual. When ordering spare parts,
please specify the PART number located on the nameplate and the part number
from the assembly drawing. During the warranty period, repairs are carried out
according to the terms of the Warranty Card. Please hand over the advertised
product for repair at the place of purchase (the seller is obliged to accept the
advertised product), or send it to DEDRA - EXIM Central Service. Please kindly
enclose the warranty card issued by the Importer. Without this document, the repair
will be treated as post-warranty. After the warranty period, repairs are performed
by the Central Service. The defective product should be sent to the Service
(shipping costs are covered by the user).
11. Troubleshooting on its own
Unplug the device from the power source and make sure
it is not working before troubleshooting it yourself.
PROBLEM
CAUSE
The device is not
Defective switch
working
Discharged battery
Badly installed battery
The device starts
Discharged battery
with difficulty
Operating parameters
exceeded
The engine is
Clogged vents
overheating
Operating parameters
exceeded
Too much tool pressure
12 Completion of the device
Completion: 18V impact hammer DED7048 - 1 piece.
13. Information for users on disposal of waste
electrical and electronic equipment
(applies to households)
The symbol shown on the products or accompanying documentation
informs that faulty electrical or electronic equipment must not be
disposed of with household waste. The correct course of action when
disposal, reuse or recovery of components is to take the device to a
specialized collection point, where it will be accepted free of charge. Information on
the location of collection sites for waste equipment is provided by local authorities,
e.g. on their websites.
Proper disposal of the device allows you to conserve valuable resources and avoid
negative health and environmental impacts resulting from the possibility of
hazardous: substances, mixtures and components in the equipment.
Improper disposal of waste is subject to penalties under relevant local regulations.
Users in European Union countries: If you need to dispose of electrical or electronic
equipment, please contact your nearest retailer or supplier, who will provide more
information.
Disposal of waste in countries outside the European Union: This symbol applies
only to countries within the European Union. If you need to dispose of this product,
please contact your local authorities or your dealer for proper disposal.
I acknowledge that I have been informed of the warranty terms and conditions and
the consequences of not following the guidelines in the User's Manual and Warranty
Card. The terms of this warranty are known to me, which I confirm with my
signature:
I. Product Liability:
1. Guarantor - Dedra Exim Sp. z o.o. with its seat in Pruszkow, address: ul. 3 Maja
8, 05-800 Pruszków, KRS 0000062517, District Court for the City of Warsaw in
Warsaw, XIV Economic Department of the National Court Register, NIP 527-020-
49-33, share capital: PLN 100,980.00.
2. Under the terms of this warranty card, the Guarantor guarantees the Product,
originating from the Guarantor's distribution.
3. Liability under the warranty shall cover only defects arising from causes inherent
in the Product at the time of its release to the User.
4. By virtue of the warranty, the User, obtains the right to repair the Product free of
charge, if the defect became apparent during the warranty period. The method of
repairing the Product (the method of performing the repair) is at the discretion of
the Guarantor. If the Guarantor finds that repair is not possible, the Guarantor
reserves the right to replace the defective element or the entire Product with a
defect-free one, reduce the price of the Product or withdraw from the contract.
5. In relation to the User who is not a consumer within the meaning of the Act of
April 23, 1964. Civil Code, the Guarantor's liability for damages resulting from this
guarantee and/or in connection with its conclusion and execution, regardless of the
legal title, is limited to a maximum of the value of the defective Product.
II. Warranty Period:
SOLUTION
Take the device to a
III. Conditions for taking advantage of the warranty:
service center
The User should present the completed warranty card for the Product and the User
Charge the battery
should substantiate the circumstances of purchase of the Product, e.g. by
Fix correctly
presenting the receipt, invoice, etc. In order to carry out the claim efficiently, the
Charge the battery
User is advised to submit with the Product for claim all the elements specified in the
properly
"Completion of the device" included in the User's Manual.
Reduce the load on the
2. compliance by the User with the recommendations contained in the User's
power tool
Manual and the warranty card.
Clean the holes
3. The warranty covers only the territory of the Republic of Poland and the EU.
Turn off the power tool,
4. The warranty does not cover Product defects arising in particular from:
postpone work until the
a. Failure by the User to comply with the conditions set forth in the User's Manual,
device has cooled down
particularly with regard to proper operation, maintenance and cleaning;
completely
b. Use of cleaning or maintenance products by the User that do not comply with the
Reduce the load on the
User's Manual;
power tool
c. Inadequate storage and transportation of the Product by the User;
d. Unauthorized changes and/or alterations to the Product by the User, which were
not agreed upon with the Guarantor;
e. User's use of consumables in the Product that do not comply with the User's
Manual.
f. A user who is not a consumer within the meaning of the Act of April 23, 1964.
Civil Code, forfeits the warranty on the Product in which:
g. serial numbers, date markings and nameplates have been removed, altered or
damaged by the User;
h. the seals have been damaged by the User or bear signs of tampering by the
User.
5. Note: Activities related to the daily operation of the Product, resulting, among
other things, from the User's Manual, shall be performed by the User on his/her own
and at his/her own expense.
IV. Complaint Procedure:
1. In the event that the Product is found not to be working properly, make sure that
all the operations specified in particular in the User's Manual have been performed
correctly before making a claim.
Warranty card
Rotary hammer
Part No.: DED7048 Lot No.: ..........................
(hereinafter referred to as the Product)
Product Purchase Date: .............
Dealer stamp
Date and signature of vendor: .................................
User Statement:
......................
Date and Place
Product Elements
Duration of warranty protection
36 months, starting from the date of purchase
DED7048
at
.................................
Signature of User
of the Product as shown on this Warranty
Card
10
