ENGLISH: Assembly Instruction Dealer
Roadster REAR CARRIER (VBK0174-VBK0176)
8. Mount mudguard at carrier loosely with countersunk bolt M5x16
selflock nut
9. Adjust carrier horizontally and tighten all bolts. Tightening torque: M5 = 5Nm, M6 = 8Nm.
10. Mount tail light at carrier with selflock nuts M5 and washers 5.3mm.
11. Route light cable trough carrier and fix it at frame. Connect light cable to Bosch Drive unit.
12. Mount rear wheel. Functional check: rear wheel must have enough distance to mudguard.

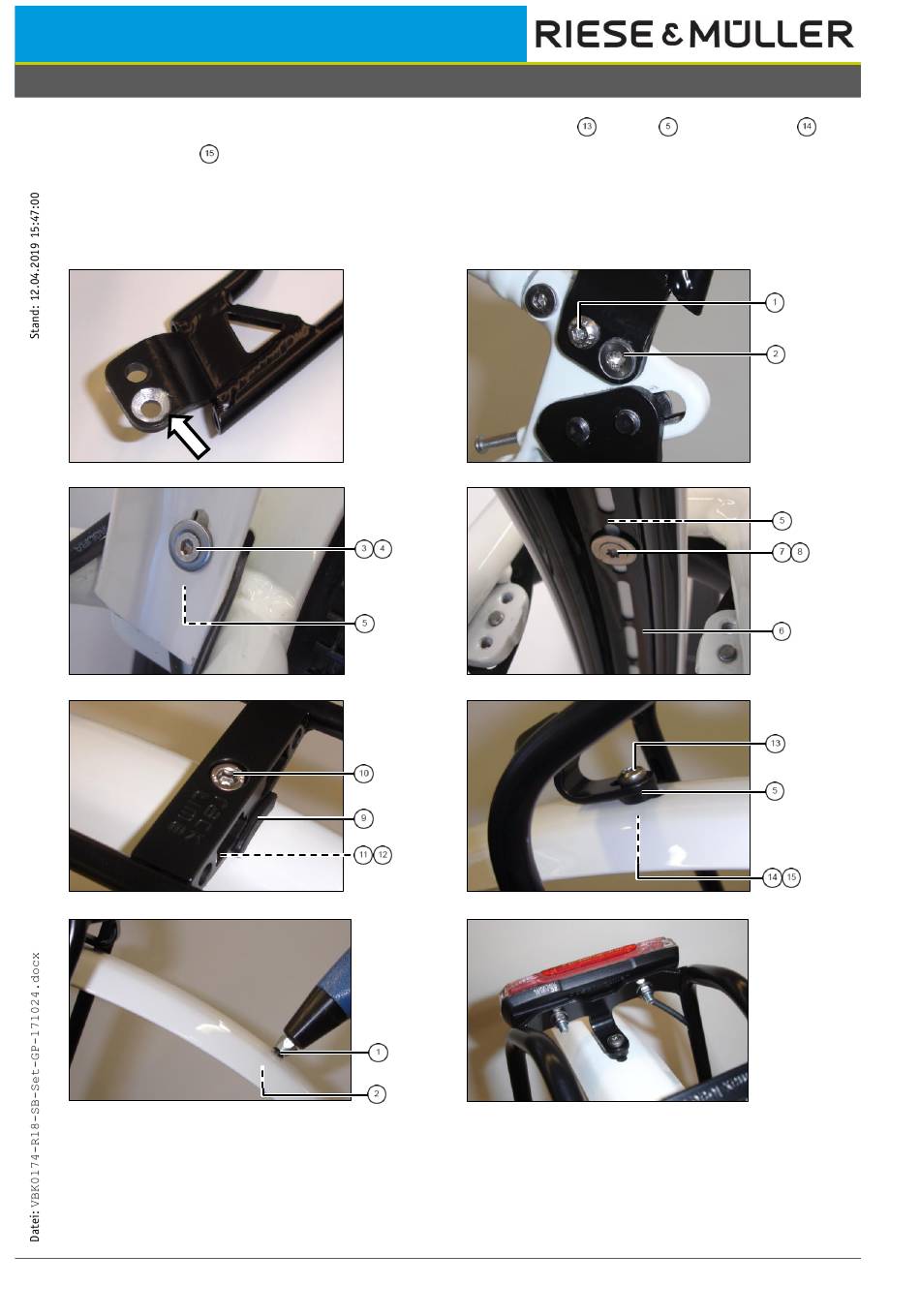

fig. 1: Chamfer for Roadster Urban
fig. 3: Mudguard at frame
fig. 5: Mudguard at carrier
fig. 7: Rivet
Riese & Müller GmbH | Am alten Graben 2 | D-64367 Mühltal | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
(fig. 6).
, Spacer
fig. 2: Carrier at frame
fig. 4: Mudguard and cable duct at frame
fig. 6: Mudguard at carrier
fig. 8: Tail light
, washer 5.3mm
and
Page 5 of 6
