5.

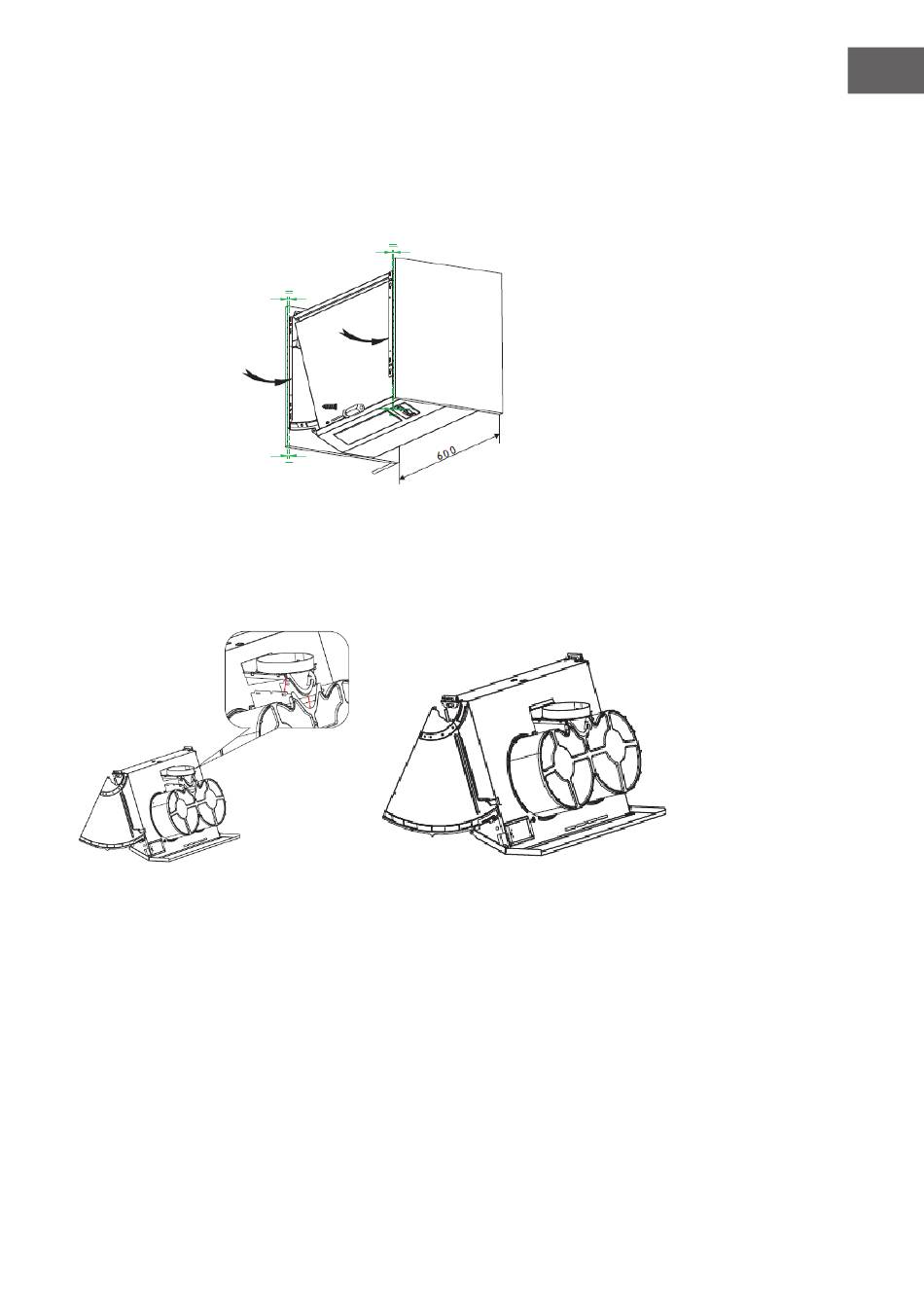

Push the fan-shaped door frames to the end, in order to make the outer
edges of the door frames at the same vertical level as the outer edge of the
cupboards.
6.
Mark the positions where you install the lower screws. Drill the upper hole and
fix the screws. Make sure all four screws are well fixed.
7.
Install the outlet as followings: Align the 3 pcs side slots of the outlet with the
3 edges of the blower, insert the 3 edges into the outlet slot (see Pic 1), then
finish as shown Pic 2.
Pic. 1
8.
Connect the air-outlet board and the air-outlet tube (Vent Hose) which will
need to feed through to the outside of the building. Rigid kits, if preferred, can
be obtained from either the retailer who supplied the hood, or DIY Stores and
Builders Merchants.
9.
Door installation: The door should be no less than 16mm thick, 385-700mm
high, and weigh no more than 7KG. Pull out the movable fan-shaped door
frames by the plastic handle, and place the fan-shaped door frames one on
left and one on right.
Pic. 1
EN
25
