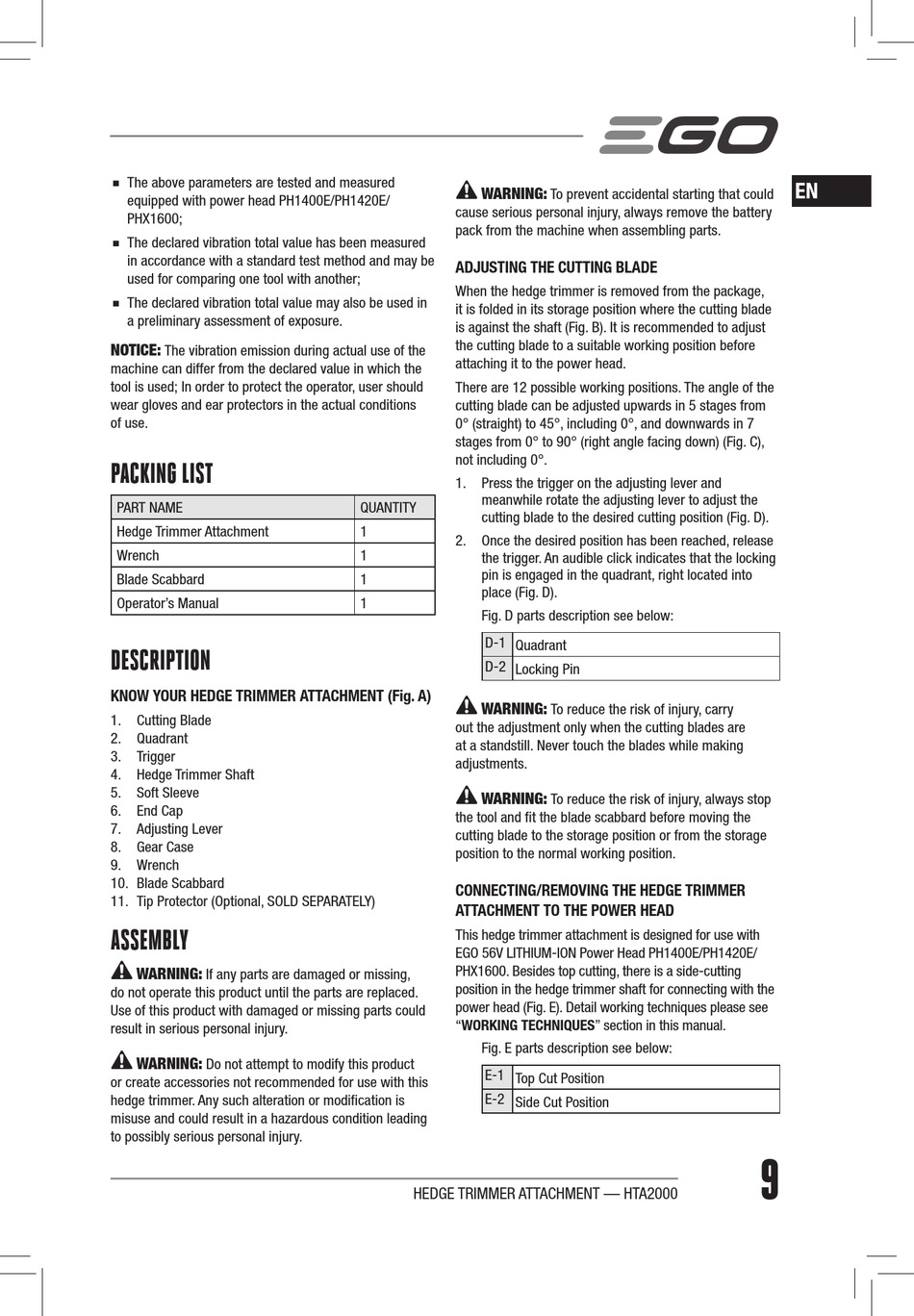

The above parameters are tested and measured
equipped with power head PH1400E/PH1420E/
PHX1600;
◾
The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another;
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE:
The vibration emission during actual use of the
machine can differ from the declared value in which the
tool is used; In order to protect the operator, user should
wear gloves and ear protectors in the actual conditions
of use.
PACKING LIST
PART NAME
Hedge Trimmer Attachment
Wrench
Blade Scabbard
Operator's Manual
DESCRIPTION
KNOW YOUR HEDGE TRIMMER ATTACHMENT (Fig. A)
1. Cutting Blade
2. Quadrant
3. Trigger
4. Hedge Trimmer Shaft
5. Soft Sleeve
6. End Cap
7. Adjusting Lever
8. Gear Case
9. Wrench
10. Blade Scabbard
11. Tip Protector (Optional, SOLD SEPARATELY)
ASSEMBLY
WARNING:
If any parts are damaged or missing,
do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING:
Do not attempt to modify this product
or create accessories not recommended for use with this
hedge trimmer. Any such alteration or modification is
misuse and could result in a hazardous condition leading
to possibly serious personal injury.
WARNING:
cause serious personal injury, always remove the battery
pack from the machine when assembling parts.
ADJUSTING THE CUTTING BLADE
When the hedge trimmer is removed from the package,
it is folded in its storage position where the cutting blade
is against the shaft (Fig. B). It is recommended to adjust
the cutting blade to a suitable working position before
attaching it to the power head.
There are 12 possible working positions. The angle of the
cutting blade can be adjusted upwards in 5 stages from
0° (straight) to 45°, including 0°, and downwards in 7
stages from 0° to 90° (right angle facing down) (Fig. C),
not including 0°.
1. Press the trigger on the adjusting lever and
meanwhile rotate the adjusting lever to adjust the
QUANTITY
cutting blade to the desired cutting position (Fig. D).
1
2. Once the desired position has been reached, release
1
the trigger. An audible click indicates that the locking
pin is engaged in the quadrant, right located into
1
place (Fig. D).
1
Fig. D parts description see below:
D-1 Quadrant
D-2 Locking Pin
WARNING:
out the adjustment only when the cutting blades are
at a standstill. Never touch the blades while making
adjustments.
WARNING:
the tool and fit the blade scabbard before moving the
cutting blade to the storage position or from the storage
position to the normal working position.
CONNECTING/REMOVING THE HEDGE TRIMMER
ATTACHMENT TO THE POWER HEAD
This hedge trimmer attachment is designed for use with
EGO 56V LITHIUM-ION Power Head PH1400E/PH1420E/
PHX1600. Besides top cutting, there is a side-cutting
position in the hedge trimmer shaft for connecting with the
power head (Fig. E). Detail working techniques please see
"WORKING TECHNIQUES" section in this manual.
Fig. E parts description see below:
E-1 Top Cut Position
E-2 Side Cut Position
HEDGE TRIMMER ATTACHMENT — HTA2000
To prevent accidental starting that could
To reduce the risk of injury, carry
To reduce the risk of injury, always stop
