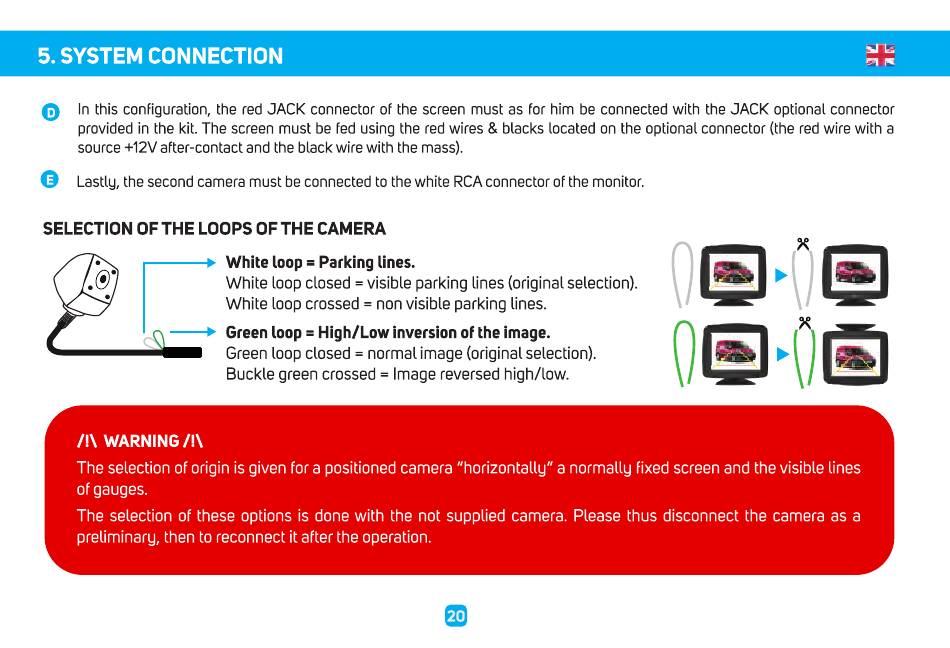

5. SYSTEM CONNECTION
O n thisconfiguration, theredJACKconnector ofthescreen mustasforhimbeconnected w ith theJACKoptional connector
provided in the kit. The screen must be fed using the red wires & blacks located on the optional connector (the red wire with a
source +12V after-contact
o
Lastly, the second camera must be connected to the white RCA connector of the monitor.
SELECTION OF THE LOOPS
.7 9
WARNING
The selection of origin is given for a positioned camera "horizontally"
of gauges.
The selection of these options is done with the not supplied camera. Please thus disconnect the camera as a
preliminaru, then to reconnect it after the operation.
and the black wire with the mass).
OF THE CAMERA
White loop = Parking lines.
White loopclosed = visible parking lines (original selection).
White loopcrossed = non visible parking lines.
Greenloop High/Low inversion of the image.
Greenloopclosed = normal image (original selection).
Buckle green crossed = mage reversed high/low.
a normallu fixed screen and the visible lines
