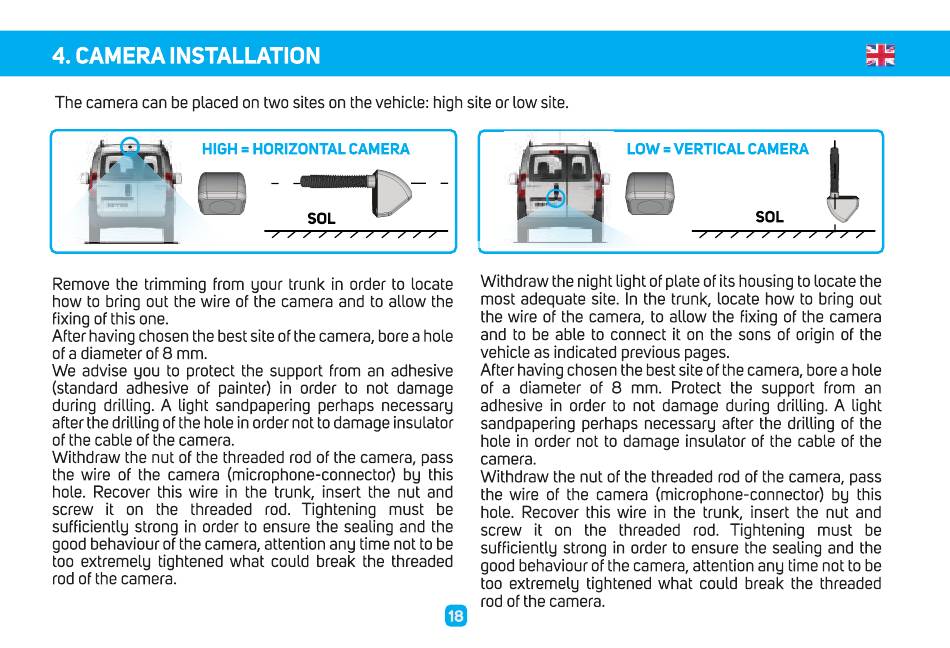

4. CAMERA INSTALLATION
The camera can be placed on two sites on the vehicle: high site or low site.
HIGH
Remove the trimming from gour trunk in order to locate
how to bring out the wire of the camera and to allow the
fixing of this one.
After having chosen the best site of the camera, bore a hole
of a diameter of 8 mm.
We advise you to protect the support from an adhesive
(standard adhesive of painter) in order to not damage
during drilling. A light sandpapering perhaps necessarg
after the drilling Ofthe hole in order not to damage insulator
of the cable of the camera.
Withdraw the nut of the threaded rod of the camera, pass
the wire Of the camera (microphone-connector) bu this
hole. Recover this wire in the trunk, insert the nut and
screw it on the threaded
sufficiently strong in order to ensure the sealing and the
good behaviourof the camera,attention any time not to be
too extremely tightened what could break the threaded
rod of the camera.
HORIZONTAL CAMERA
SOL
rod. Tightening must
Withdraw the night light Ofplate Ofits housing to locate the
most adequate site. In the trunk, locate how to bring out
the wire of the camera, to allow the fixing of the camera
and to be able to connect it on the sons of origin of the
vehicle as indicated previous pages.
After having chosen the best site of the camera, bore a hole
Of a diameter Of 8 mm. Protect the support from an
adhesive in order to not damage during drilling. A light
sandpapering perhaps necessary after the drilling of the
hole in order not to damage insulator of the cable of the
camera.
Withdraw the nut of the threaded rod of the camera, pass
the wire of the camera (microphone-connector) bg this
be
hole. Recover this wire in the trunk, insert the nut and
screw it on the threaded rod. Tightening must be
sufficientlu strong in order to ensure the sealing and the
good behaviour of the camera, attention anu time not to be
too extremely tightened what could break the threaded
rod of the camera.
LOW VERTICAL CAMERA
