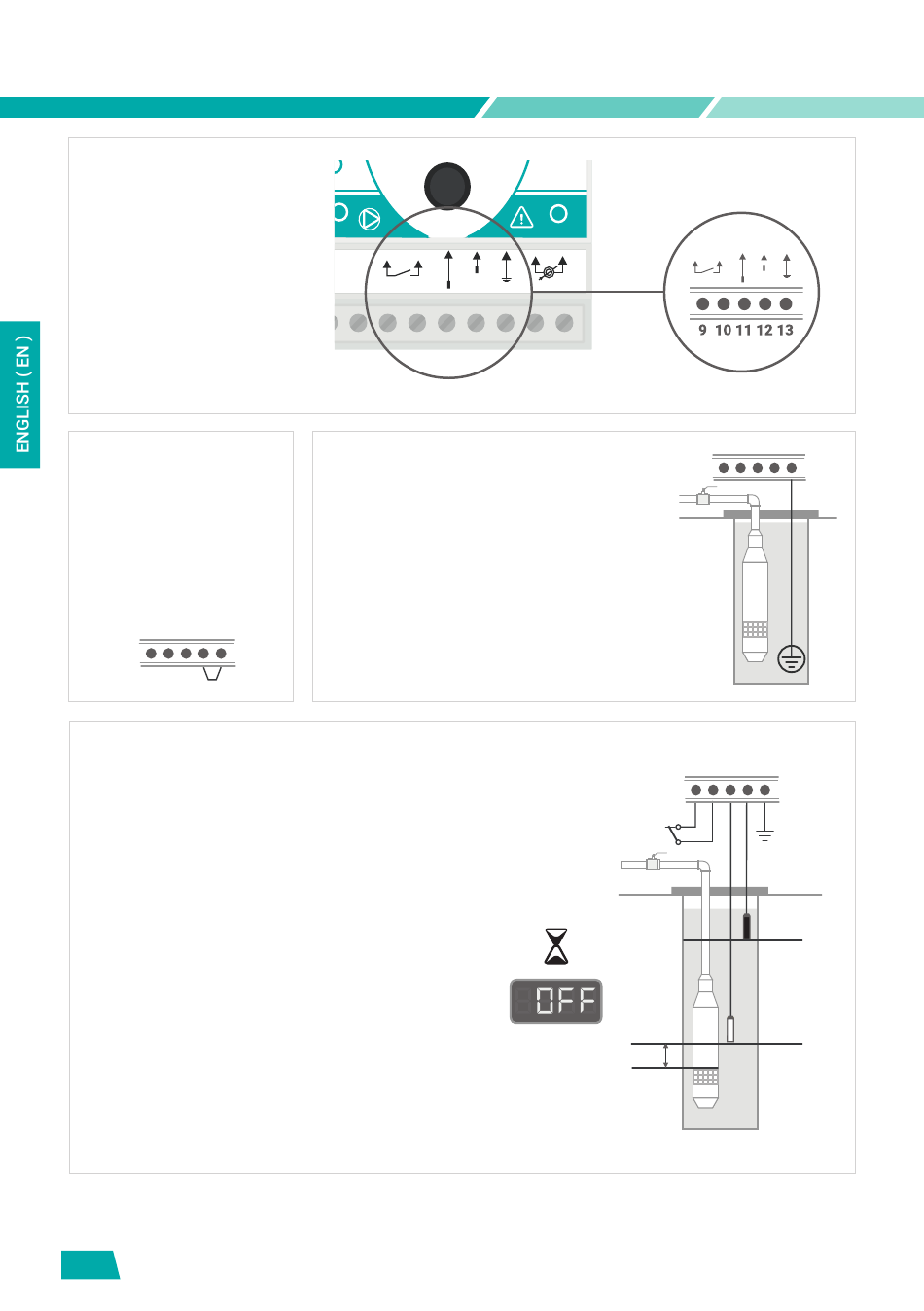

5. LEVEL CONTROL INPUTS
●
Control terminals
EXT. ON/OFF: 9 & 10
Low level: 11
High level: 12
GE: 13
●
Not used
When the level
control is not
used, 12 and 13
terminals must
be bypassed
9 10 11 12 13
●
2 Probes
When the level reaches the high level
probe, the pump starts. The pump
continues to run until the minimum level
probe is discovered.
For correct operation, the reset time
setting must be "OFF".
22
push>4s
push to
man
reset
EXT.ON/OFF
●
Additional level probe for
isolated tank
If the tank is made of insulating
material, an additional probe
must be added to the bottom
connected to 13.
2 Sondas
RUN
EXT.ON/OFF
C.TR
9 10 11 12 13
9 10 11 12 13
OK
ON
OFF
