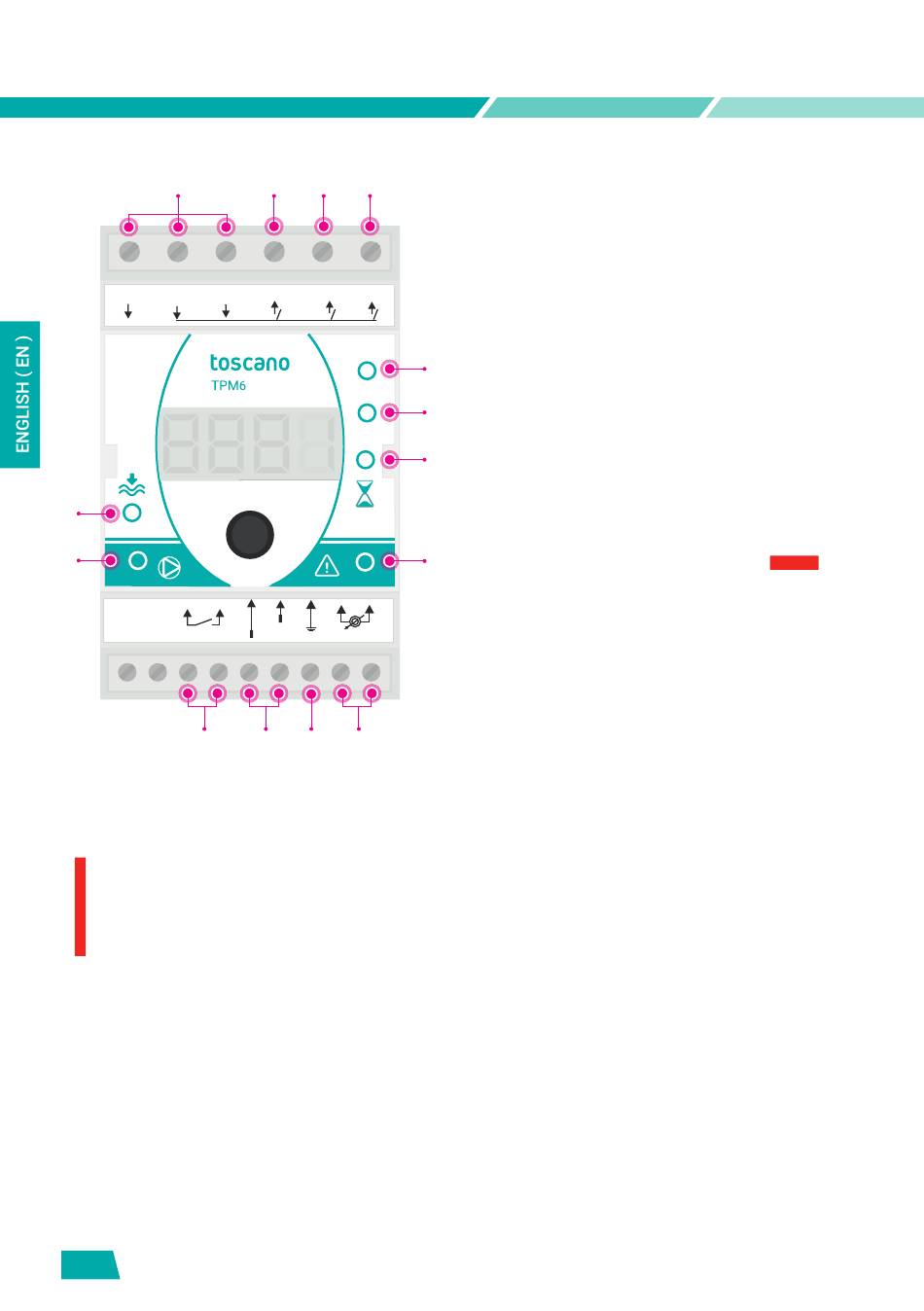

1. CONTROL MODULE
A
400V 0V 230V
push to
reset
1
2
EXT.ON/OFF
E
The control module has a central rotary knob, which can be used to access and make
changes to the parameters. To access a parameter, turn this knob clockwise until the
LED corresponding to the parameter to be changed lights up and press it.
18
B C D
PUMP LEVEL ALARM
3
Imax
4
Imin
5
push>4s
man
RUN
6
C.TR
F G H
LED lights
1. Low Level
2. Pump running
3. Overload setting
4. Underload setting
5. Restart time setting
6. Alarm
Inputs/Outputs
A. Power supply input
B. Pump control output
C. Header counter output
D. Main alarm output
E. External control input
(EXT. ON/OFF)
F. Level control input
G. Entrada de toma de tierrra (PE)
H. Current transformer input.
