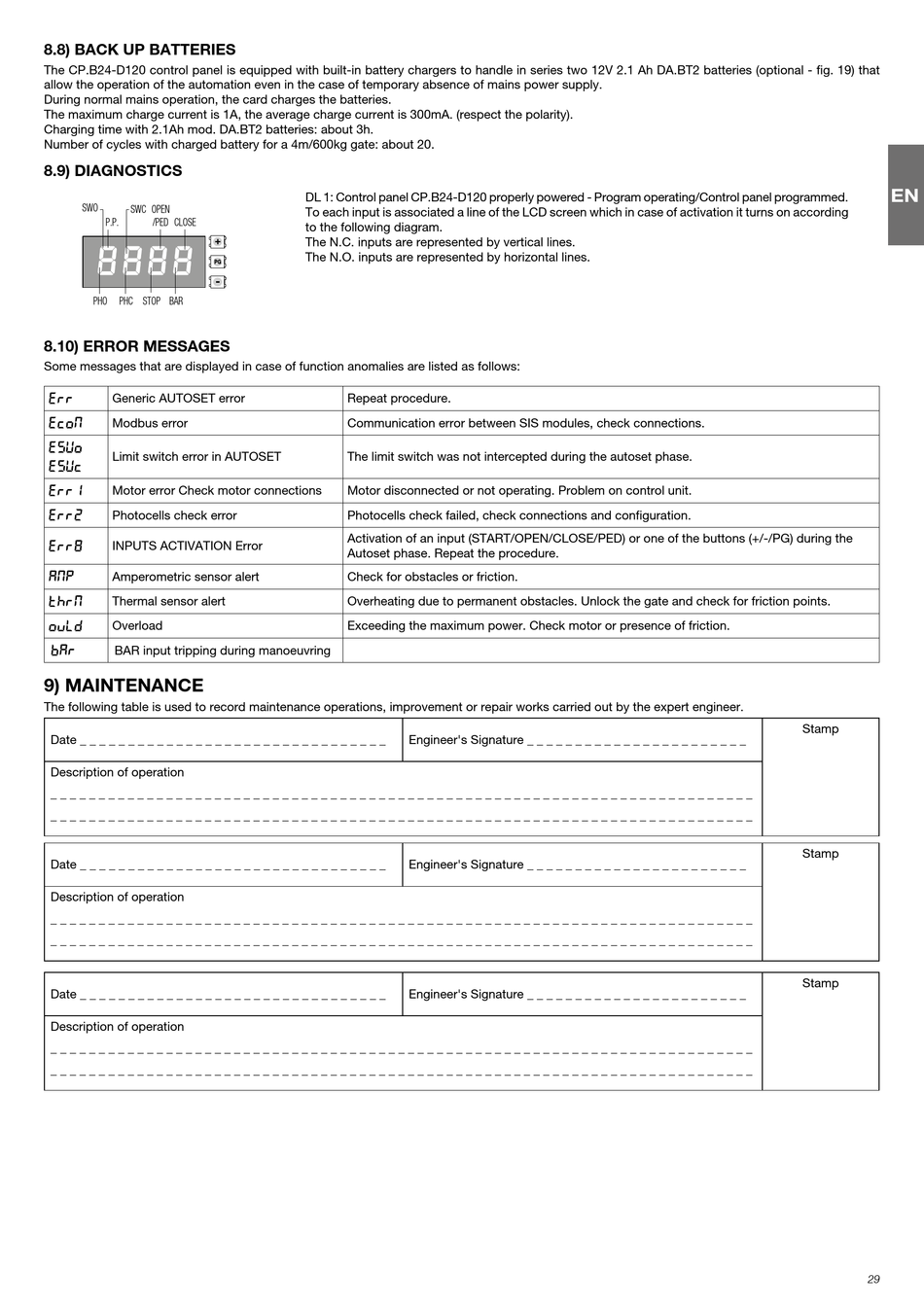

8.8) BACK UP BATTERIES
The CP.B24-D120 control panel is equipped with built-in battery chargers to handle in series two 12V 2.1 Ah DA.BT2 batteries (optional - fig. 19) that
allow the operation of the automation even in the case of temporary absence of mains power supply.
During normal mains operation, the card charges the batteries.
The maximum charge current is 1A, the average charge current is 300mA. (respect the polarity).
Charging time with 2.1Ah mod. DA.BT2 batteries: about 3h.
Number of cycles with charged battery for a 4m/600kg gate: about 20.
8.9) DIAGNOSTICS
SWO
SWC OPEN
P.P. /PED CLOSE
PHO PHC STOP BAR
8.10) ERROR MESSAGES
Some messages that are displayed in case of function anomalies are listed as follows:
err Generic AUTOSET error
Modbus error
ECOM
ESuo
Limit switch error in AUTOSET
ESUC
Err1 Motor error Check motor connections
Err2 Photocells check error
Err8 INPUTS ACTIVATION Error
Amperometric sensor alert
AMP
Thermal sensor alert
THRM
OVLD Overload
bar BAR input tripping during manoeuvring
9) MAINTENANCE
The following table is used to record maintenance operations, improvement or repair works carried out by the expert engineer.
Date _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Description of operation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Description of operation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Description of operation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
DL 1: Control panel CP.B24-D120 properly powered - Program operating/Control panel programmed.
To each input is associated a line of the LCD screen which in case of activation it turns on according
to the following diagram.
The N.C. inputs are represented by vertical lines.
The N.O. inputs are represented by horizontal lines.
Repeat procedure.
Communication error between SIS modules, check connections.
The limit switch was not intercepted during the autoset phase.
Motor disconnected or not operating. Problem on control unit.
Photocells check failed, check connections and configuration.
Activation of an input (START/OPEN/CLOSE/PED) or one of the buttons (+/-/PG) during the
Autoset phase. Repeat the procedure.
Check for obstacles or friction.
Overheating due to permanent obstacles. Unlock the gate and check for friction points.
Exceeding the maximum power. Check motor or presence of friction.
Engineer's Signature _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Engineer's Signature _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Engineer's Signature _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
