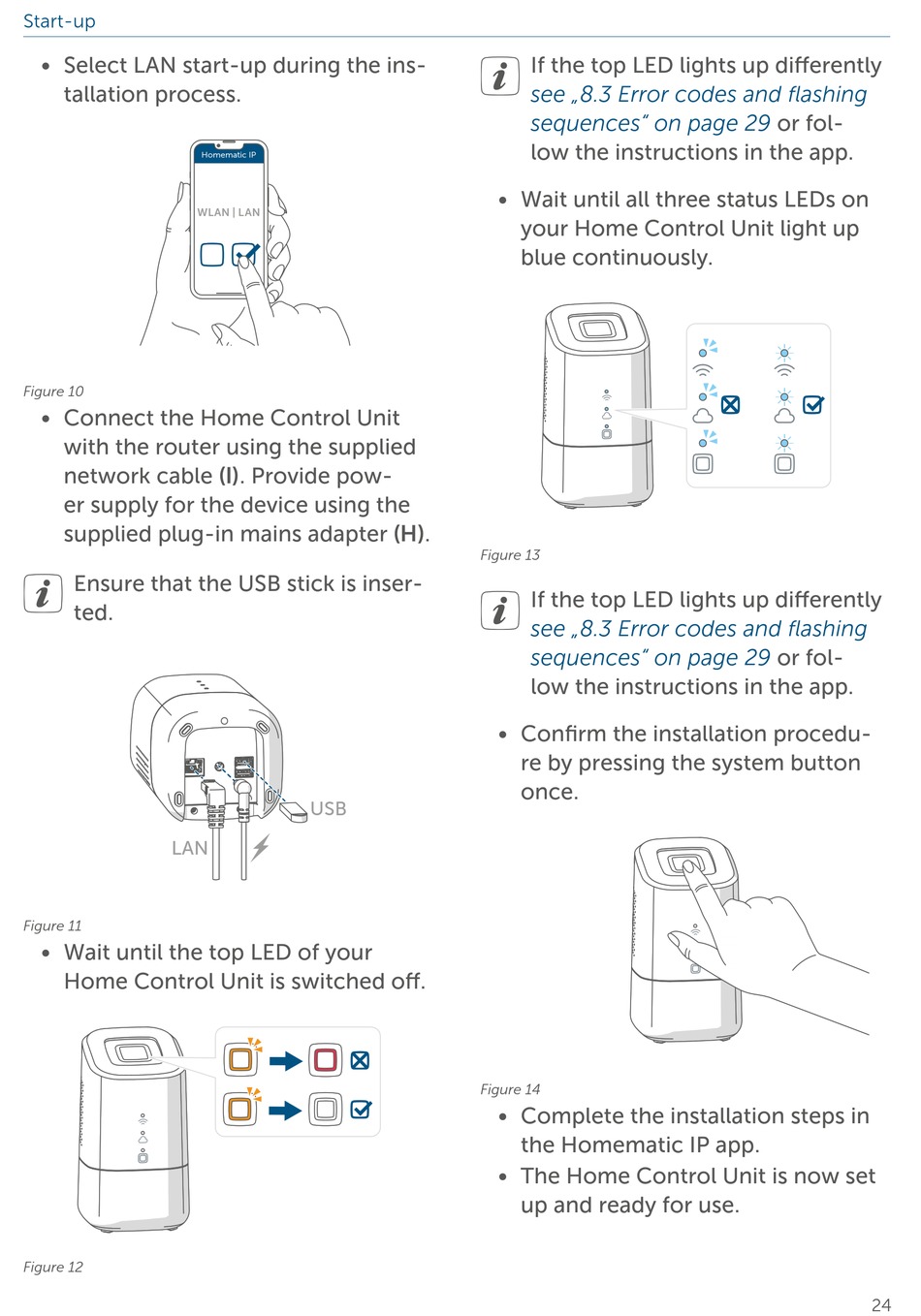

• Select LAN start-up during the ins-
tallation process.
WLAN | LAN
Figure 10
• Connect the Home Control Unit
with the router using the supplied
network cable (I). Provide pow-
er supply for the device using the
supplied plug-in mains adapter (H).
Ensure that the USB stick is inser-
ted.
LAN
Figure 11
• Wait until the top LED of your
Home Control Unit is switched o.
Figure 12
Homematic IP
USB
If the top LED lights up dierently
see „8.3 Error codes and ashing
sequences" on page 29
low the instructions in the app.
• Wait until all three status LEDs on
your Home Control Unit light up
blue continuously.
Figure 13
If the top LED lights up dierently
see „8.3 Error codes and ashing
sequences" on page 29
low the instructions in the app.
• Conrm the installation procedu-
re by pressing the system button
once.
Figure 14
• Complete the installation steps in
the Homematic IP app.
• The Home Control Unit is now set
up and ready for use.
or fol-
or fol-
