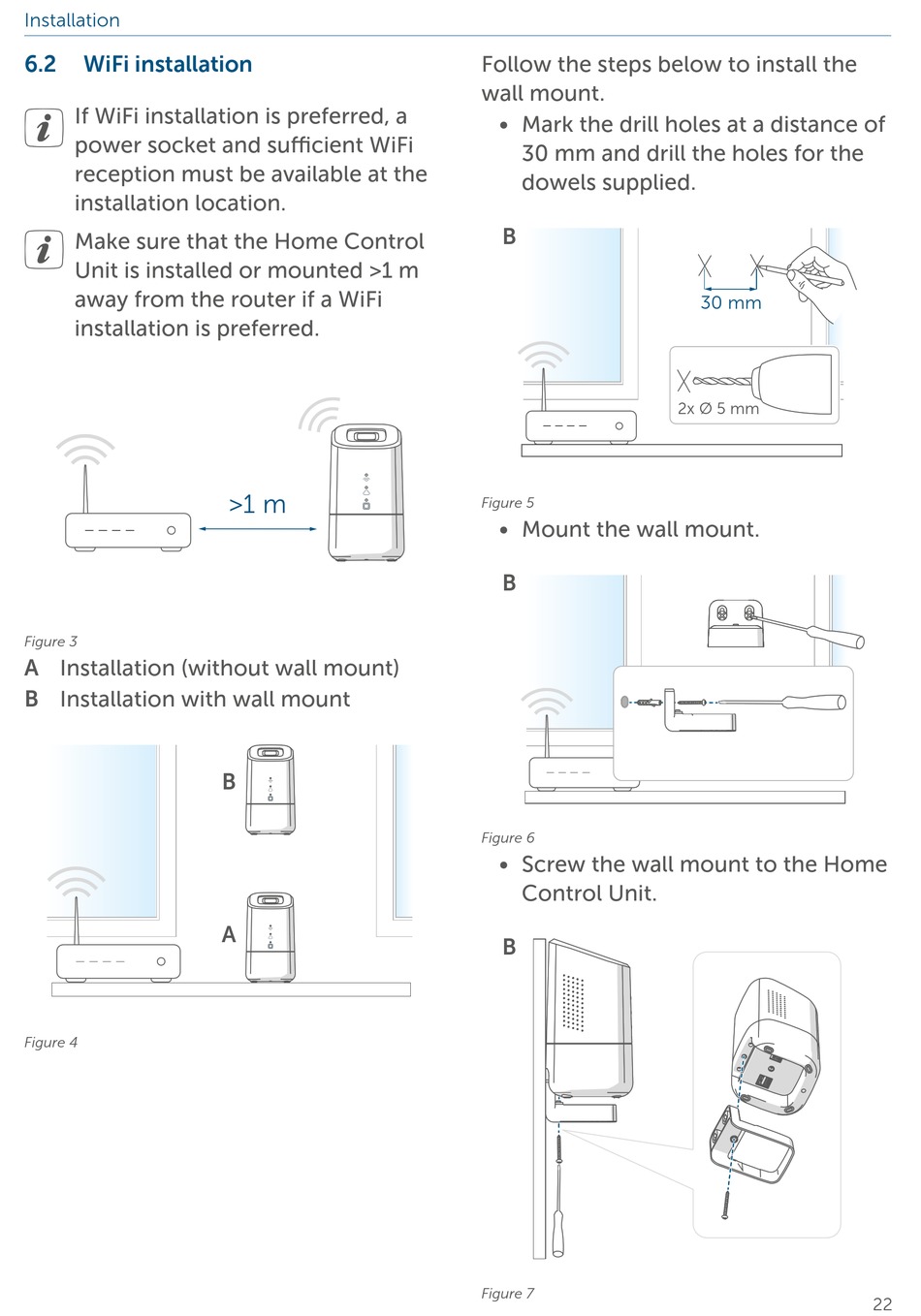

6.2 WiFi installation
If WiFi installation is preferred, a
power socket and sucient WiFi
reception must be available at the
installation location.
Make sure that the Home Control
Unit is installed or mounted >1 m
away from the router if a WiFi
installation is preferred.
Figure 3
A Installation (without wall mount)
B Installation with wall mount
Figure 4
>1 m
B
A
Follow the steps below to install the
wall mount.
• Mark the drill holes at a distance of
30 mm and drill the holes for the
dowels supplied.
B
Figure 5
• Mount the wall mount.
B
Figure 6
• Screw the wall mount to the Home
Control Unit.
B
Figure 7
30 mm
2x Ø 5 mm
