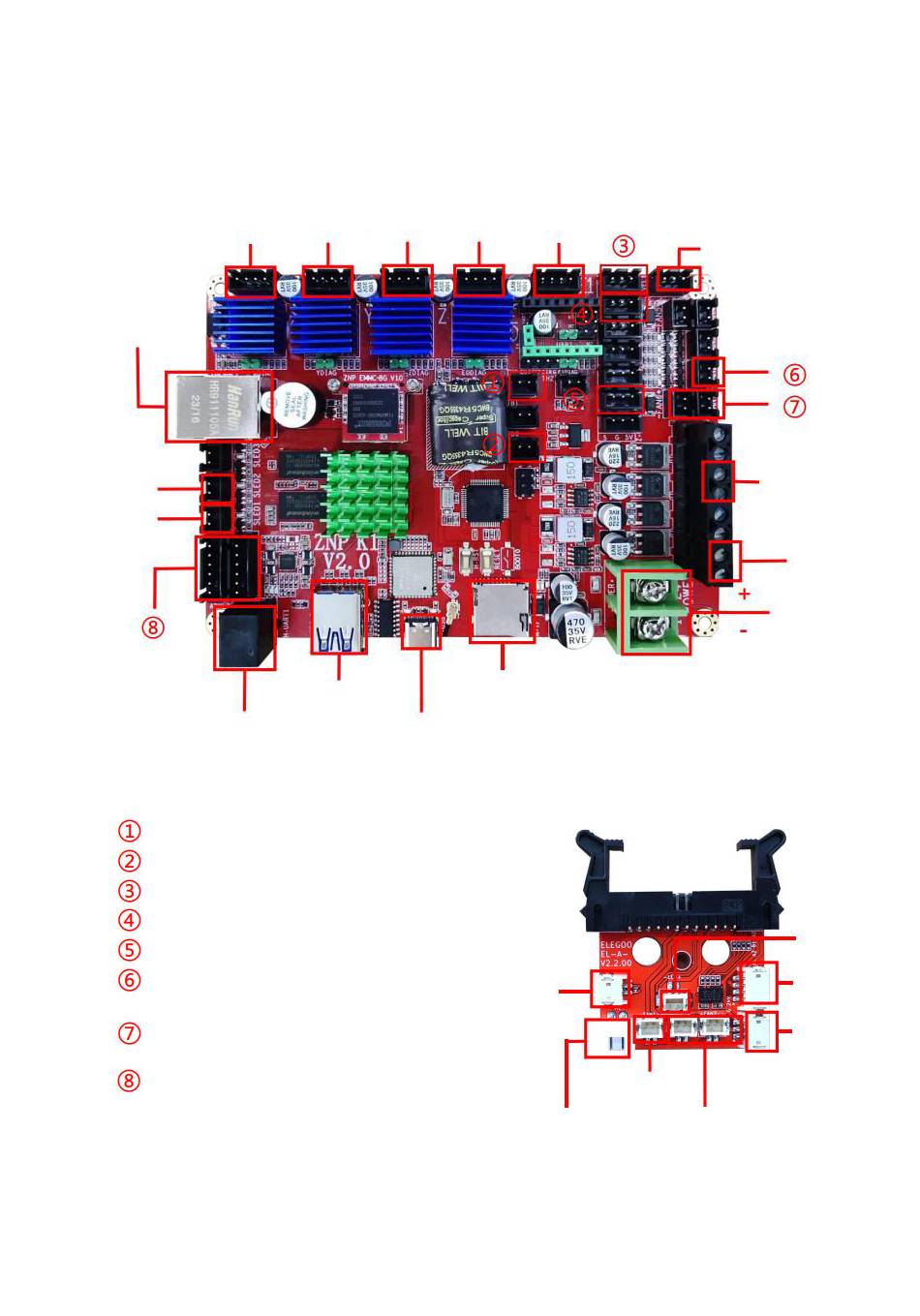

Circuit Wiring
X-Axis
Stepper
LAN (Network)
Port
LED
LED 1
Screen
Interface
Hotend Thermistor (TH1)
Heated Bed Thermistor (TB0)
X-Axis Limit Switch
Y-Axis Limit Switch
Filament Detector (DET1)
The Rear Cooling Fan/Model Fan
(FAN2)
Mainboard Fan/Heat Break Cooling Fan
(FAN1)
X/Y Accelerometer Interface (AC)
Y-Axis Z-Axis E-Axis
Stepper Stepper Stepper
USB Drive
Port
Type-C
Interfac
e
8
E1-Axis
Stepper
TF Card
Port
Hotend
Thermistor
Heat Break
Cooling
FAn
Heating
Pipe
Proximity Switch
Heating Head
Interface
Heated Bed
Interface 1
Power Supply Interface
Model Light
Extrusion Motor
Proximity Switch
Model
Fan
