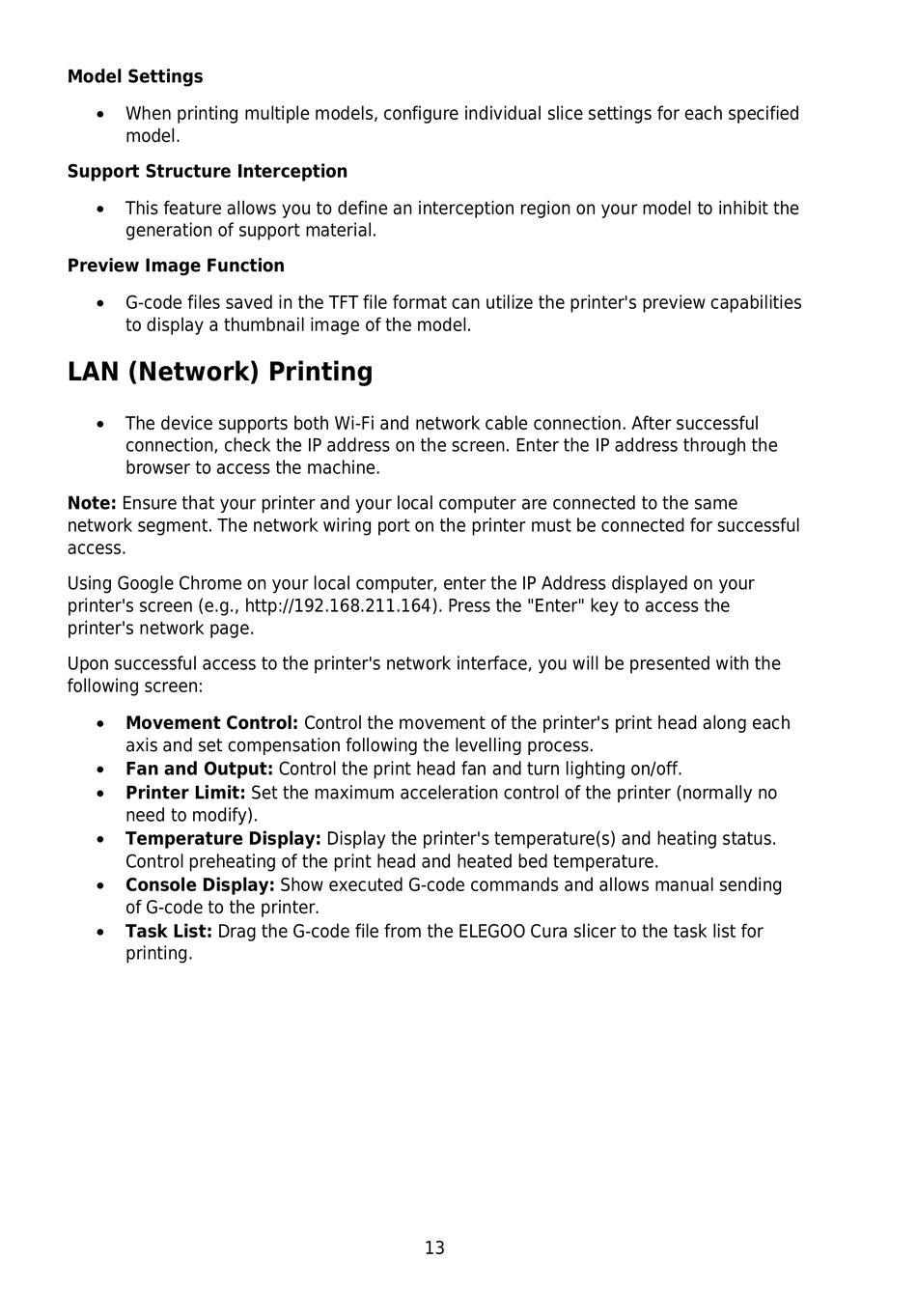

Model Settings
When printing multiple models, configure individual slice settings for each specified
model.
Support Structure Interception
This feature allows you to define an interception region on your model to inhibit the
generation of support material.
Preview Image Function
G-code files saved in the TFT file format can utilize the printer's preview capabilities
to display a thumbnail image of the model.
LAN (Network) Printing
The device supports both Wi-Fi and network cable connection. After successful
connection, check the IP address on the screen. Enter the IP address through the
browser to access the machine.
Note: Ensure that your printer and your local computer are connected to the same
network segment. The network wiring port on the printer must be connected for successful
access.
Using Google Chrome on your local computer, enter the IP Address displayed on your
printer's screen (e.g., http://192.168.211.164). Press the "Enter" key to access the
printer's network page.
Upon successful access to the printer's network interface, you will be presented with the
following screen:
Movement Control: Control the movement of the printer's print head along each
axis and set compensation following the levelling process.
Fan and Output: Control the print head fan and turn lighting on/off.
Printer Limit: Set the maximum acceleration control of the printer (normally no
need to modify).
Temperature Display: Display the printer's temperature(s) and heating status.
Control preheating of the print head and heated bed temperature.
Console Display: Show executed G-code commands and allows manual sending
of G-code to the printer.
Task List: Drag the G-code file from the ELEGOO Cura slicer to the task list for
printing.
13
