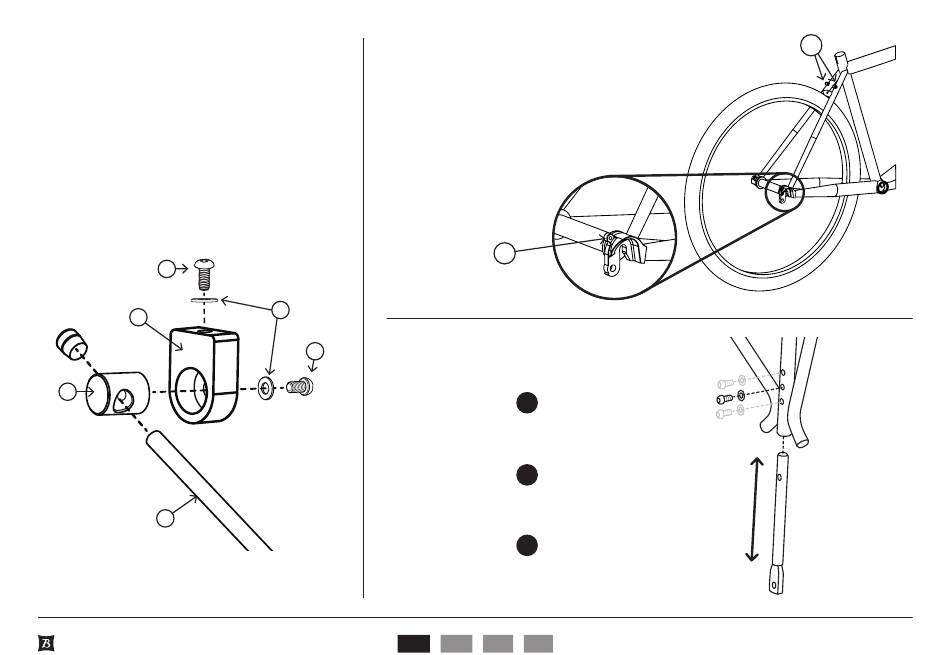

Stay Mounting Blocks

the mounting block can be installed with the bolt on
the inside or to the outside of the rack. Face them in the
direction that provides the best alignment for the stays
to mount to the bicycle. the stays can also be switched
left or right to get the best alignment for your bicycle.
1. Stay
2. rack stay block
3. rack stay receiver
4. M6 x 10 screw
5. M6 washer
4
2
3
1
BurLEY rEAr rAcK

Checking Rack Fitment

It is very important that the rack is securely attached
to the bicycle.
threaded mounting points near the rear axle
of the bicycle, one on each side, A, and one on
each side below the seat on the rear stays, B are
required for proper fitment to the bicycle.
5

Adjusting Rack Height

4
the rack height must be adjusted for proper fitment
and clearance on your bicycle.
Adjust the height by removing the bolts
on both sides. Slide bracket to the
appropriate height and align the hole.
reinsert the bolt and loosly tighten. Ensure
both mounts are at the same height. Ensure a
minimum of 10mm between rack and bicycle tire.
Secure the bolts by tightening to 4–5nm.
ENG DEU
A
threaded mounting
points for rack
1
2
3
FRA ESP
threaded mounting
B
points for rack
ASSEMBLY & uSE
