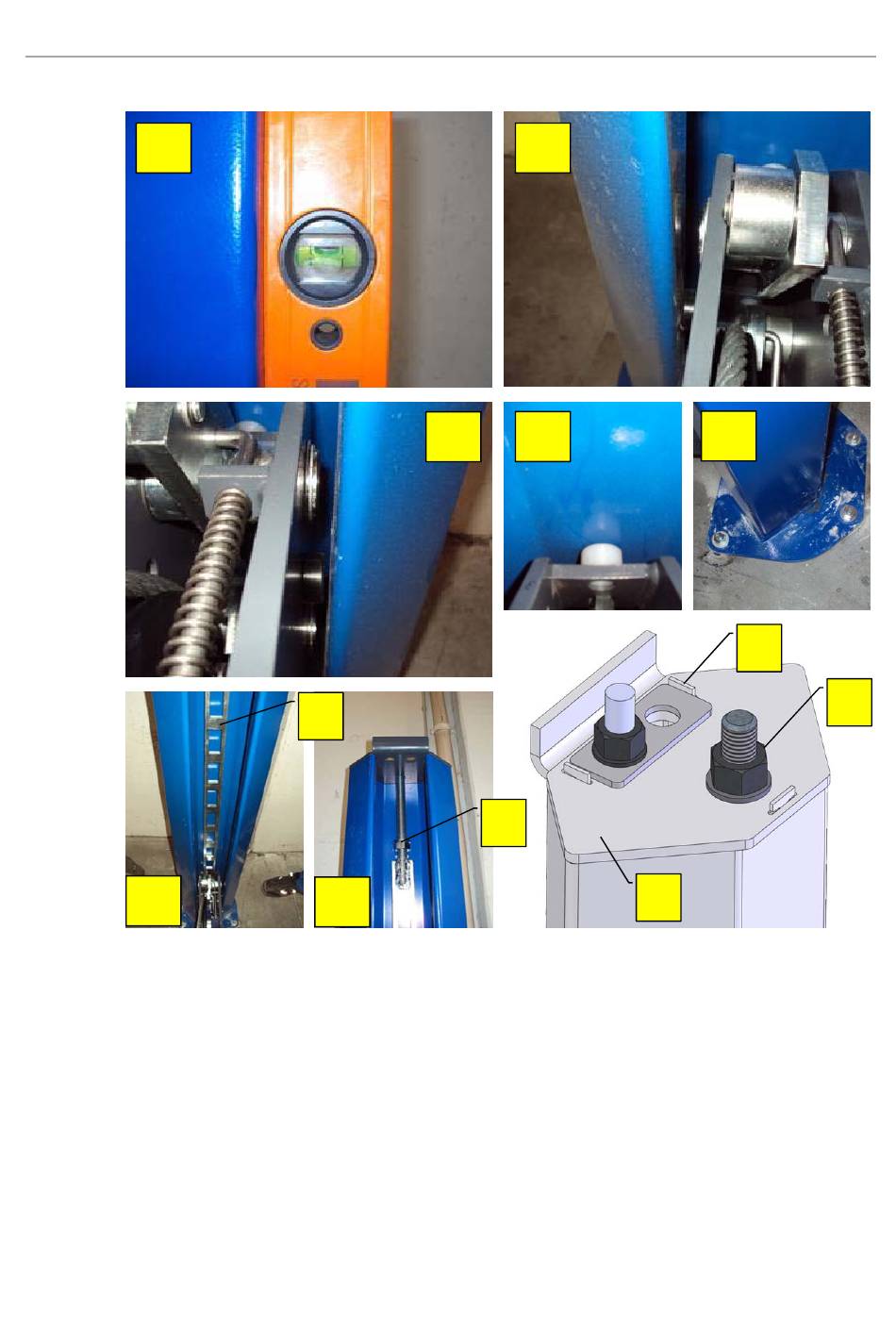

18 Align the columns.
19 Center the carriages in the right-hand columns.
20 Center the carriages in the left-hand columns.
21 Keep a clearance of approx. 1...2 mm from the crossbeam to the rear columns.
22 Anchor the columns and tighten the fastening nuts (see section "Anchoring"). Observe the
anchor manufacturer's installation instructions!
23 Introduce the lock ladder (a) into column and crossbeam. For ease of installation, the head
plate (c) can be removed from the column.
24 Screw the first nut including washer (b) onto the threaded rod. Install the head plate (c), then
the second nut including washer (d). Finally bend the three lugs (e) downward to fix the head
plate.
25 Fill the reservoir with hydraulic fluid (see section "Filling with Hydraulic Fluid"), connect the
lift tot he power supply (see section "Initial Connection").
TH363801-en
