Installation Steps
Pos: 20 /Technische Dokumentation/Hebetechnik/36
Säulen-Hebebühne/3101
CARLIFT II 3.5 / 4.0/TH/Inhalt: Montage Carlift II (Bilder Teil 1) @ 21\mod_1277102046358_0.docx @ 858083 @ @ 1
1
3
5
Pos: 21 /Technische Dokumentation/Hebetechnik/36
Säulen-Hebebühne/3101
CARLIFT II 3.5 / 4.0/TH/Inhalt: Montage Carlift II (Text Teil 1) @ 21\mod_1277102860337_75.docx @ 858113 @ @ 1

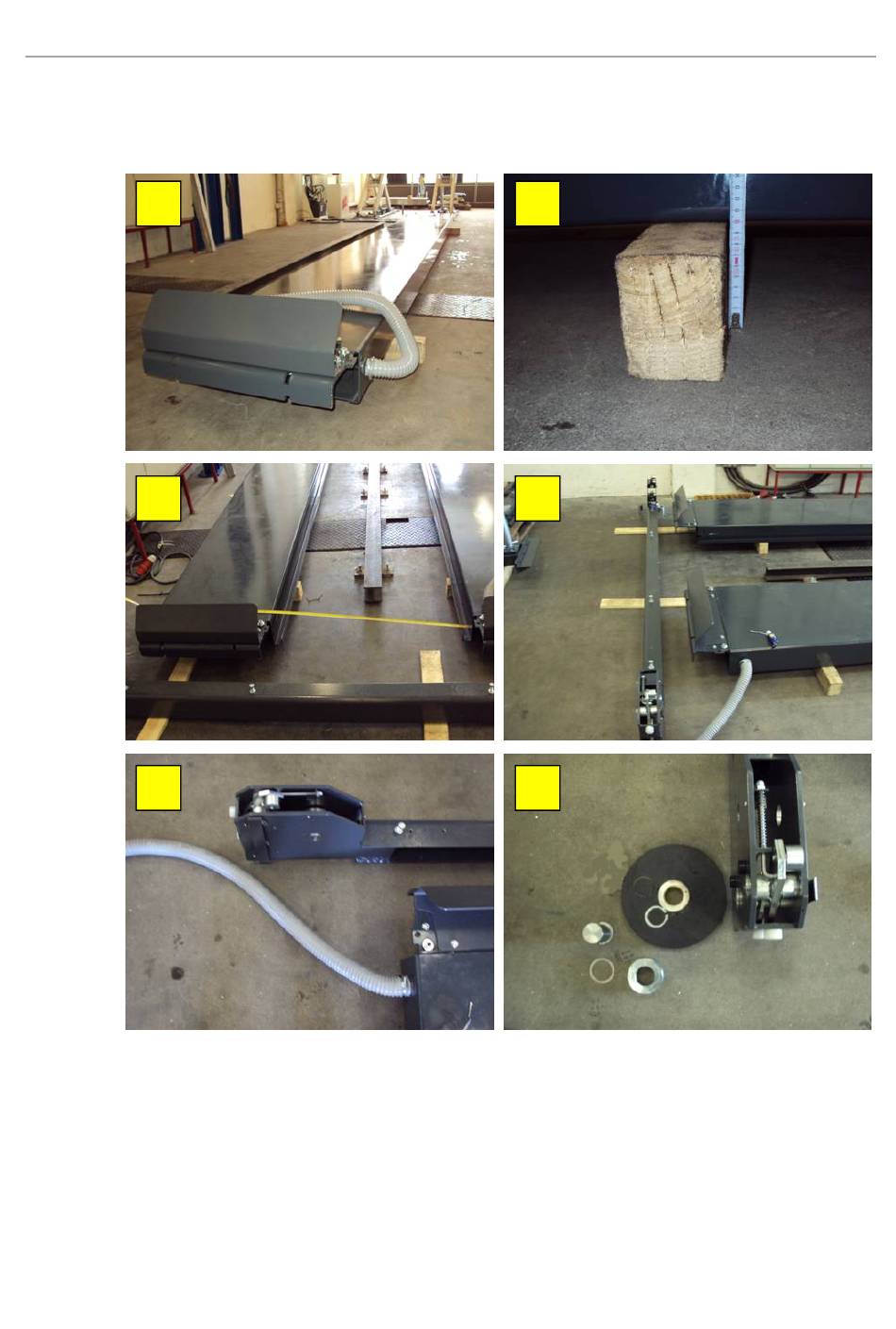

1 Position the runways on square-shaped timber beams on the floor.
2 The beams must have a height of approx. 80...100 mm.
3 Set the correct distance between both runways.
4 Position the crossbeams in front of both runways.
5 Please note: One crossbeam is equipped with a switching plate, the other is not. The
crossbeam with the switching plate must be positioned at the operating column.
6 Remove all sheaves from the crossbeam.
