6
Pos: 23 /Technische Dokumentation/Hebetechnik/36
Säulen-Hebebühne/3101
CARLIFT II 3.5 / 4.0/TH/Inhalt: Montage Carlift II (Bilder Teil 2) @ 21\mod_1277103187286_0.docx @ 858143 @ @ 1
7
9
11
Pos: 24 /Technische Dokumentation/Hebetechnik/36
Säulen-Hebebühne/3101
CARLIFT II 3.5 / 4.0/TH/Inhalt: Montage Carlift II (Text Teil 2) @ 21\mod_1277104084412_75.docx @ 858173 @ @ 1

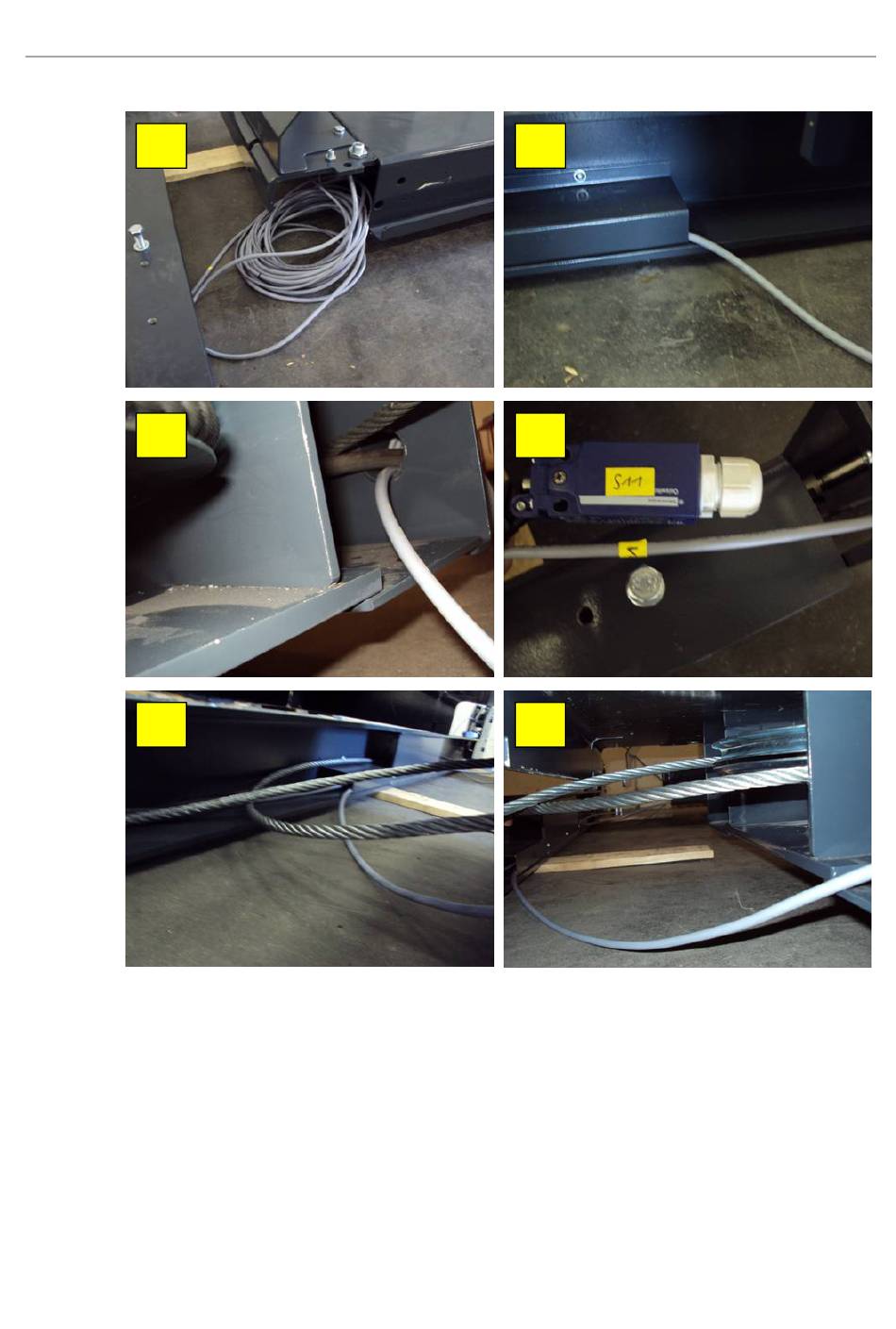

7 Pull out all electrical cables from the right-hand runway (drive-on & drive-off side).
8 Route cable W8 through the front right-hand crossbeam.
9 Route cable W8 through the "vacuum cleaner" hose in the left-hand runway.
10 The rope switches are prewired at the factory.
11 The electrical cables must be routed centrally in the cable channel. Pull out the wire ropes
from the left-hand runway and introduce them into the crossbeam. The wire ropes must be
above the cable channel.
12 Important: The wire rope in the upper sheave must be routed so that it is above the wire rope
in the lower sheave.
Pos: 25 /-----Format-----/MANUELLER UMBRUCH Seitenumbruch @ 0\mod_1134403577687_0.docx @ 1277 @ @ 1
TH363801-en
8
10
12
