INTEGRAL POWER II

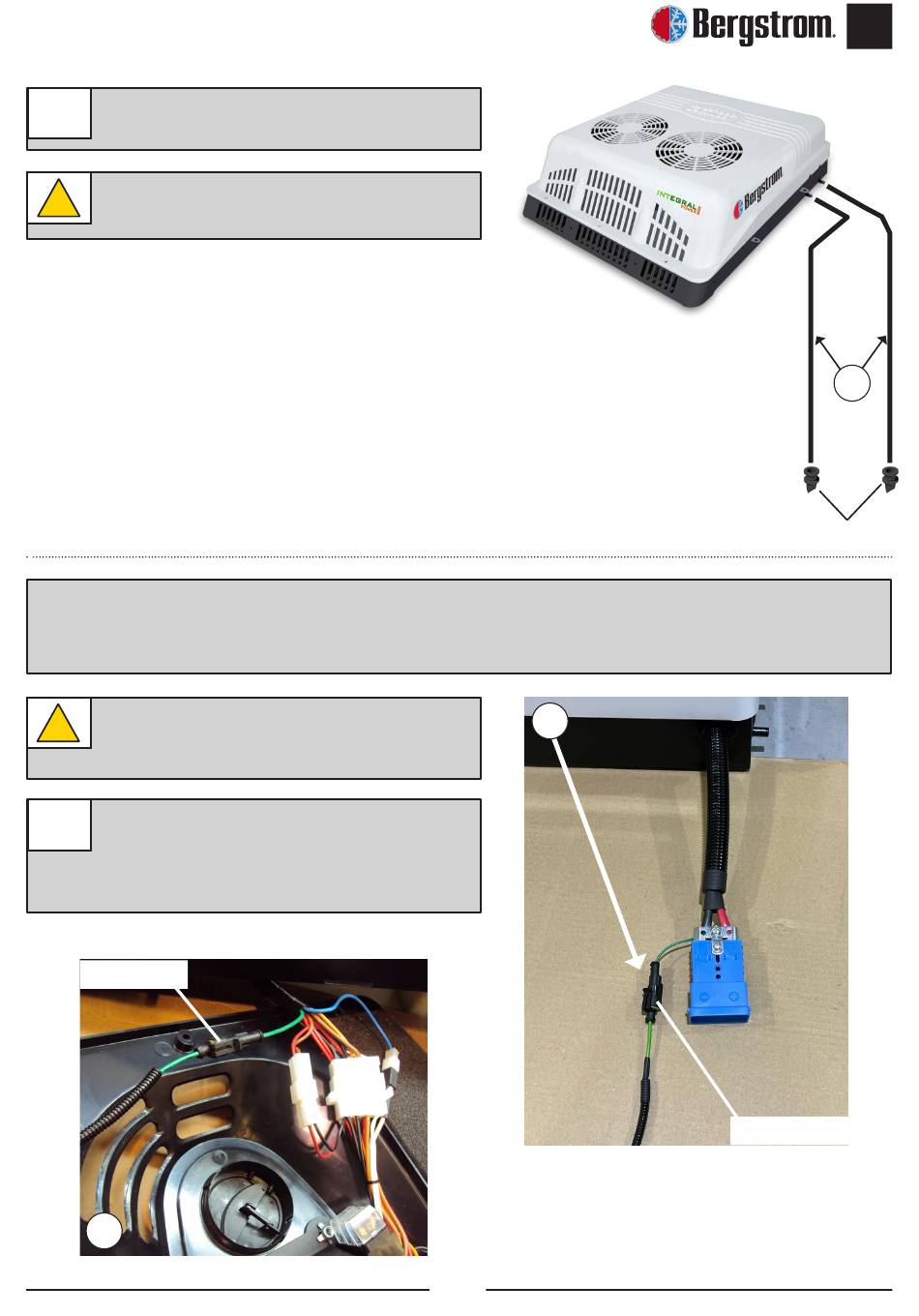

Position Ø9 x Ø13 PVC pipes, as supplied, in
6b
the unit in accordance with required length.
Caution: Position drainage valves at the end
!
of the PVC pipes for the water to run off.
Connection to alternator cable for unit operation with
Caution: The cable will be installed in all
!
vehicles for the unit to work with the engine
started up.
Position excitation cable on the inside or
7
outside of the vehicle as appropriate, and
secure the front with the supplied self-tapping
screws. Connect switches as shown.
On the inside
7
the engine running
15
7
EN
C
Drain valve
On the outside
