Bode 100 Quick Start Guide

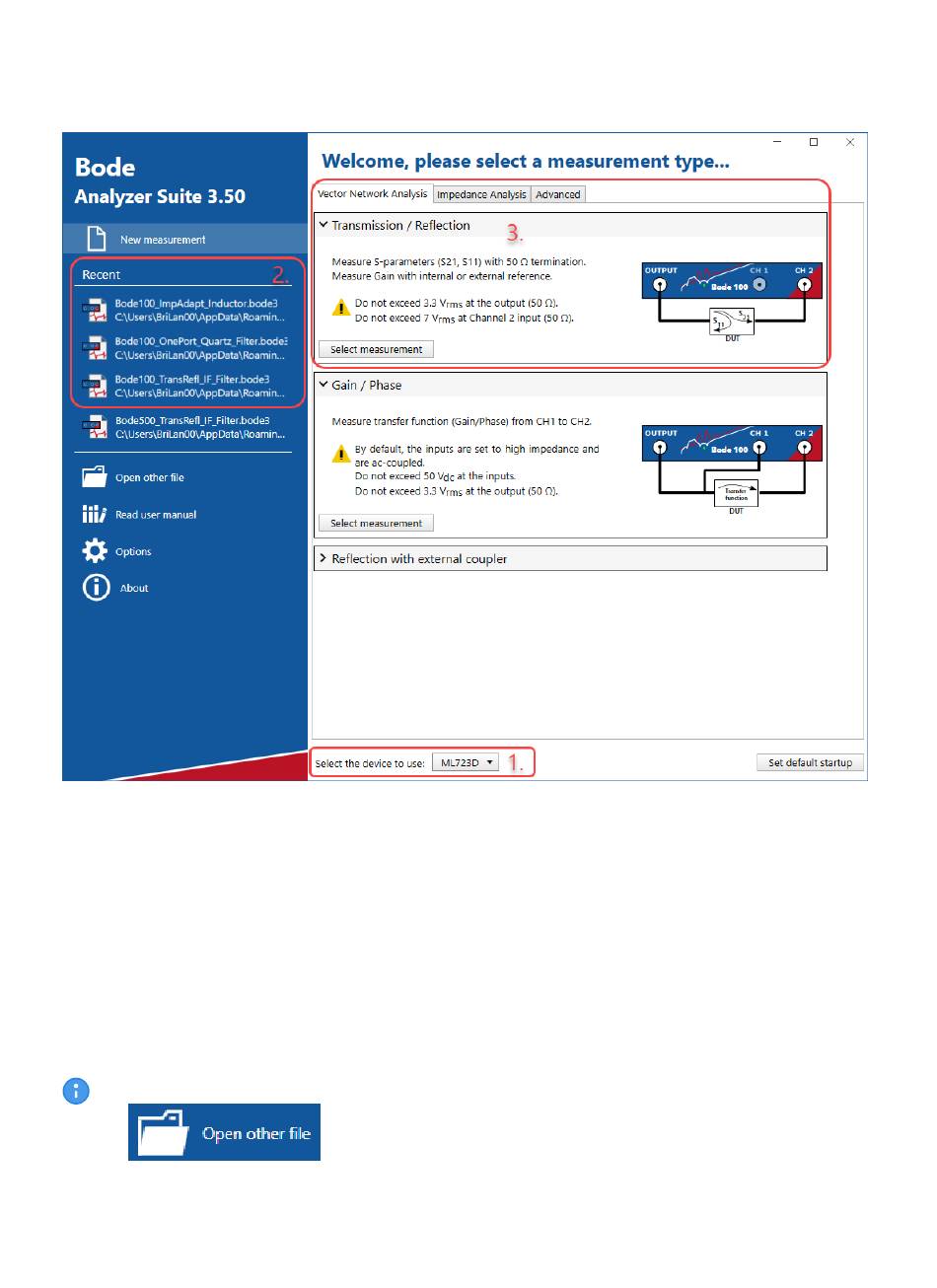

After the Bode Analyzer Suite has started, you will see a start screen as shown below:
Figure 4-2: Bode Analyzer Suite start screen
The Start screen allows the following user interactions:
•
Select the device to use (1.). This field is only visible if you have a Bode 100 device connected to
your PC. To find out if your Bode 100 is recognized by the Bode Analyzer Suite, check if the serial
number of your Bode 100 is displayed like shown in the figure above (see 1.). If no serial number
is displayed, refer to the section
•
To start your first measurement open for example the Bode 100 demo file
Bode100_TransRefl_IF-filter.bode3 from the Recent list (see 2.)
•
Or alternatively select a Transmission / Reflection measurement from the Vector Network
Analysis measurement mode list (3.) to start a measurement.
If you cannot see the file TransRefl_IF-filter.bode3 in Recent, use the
function and enter "%appdata%\OMICRON_Lab\BodeAnalyzerSuite\DemoFiles" to navigate
to the demo files.
18
Troubleshooting
for further information.
OMICRON Lab
