4.4 Performing your first measurement
Follow the steps described below to perform your first measurement:

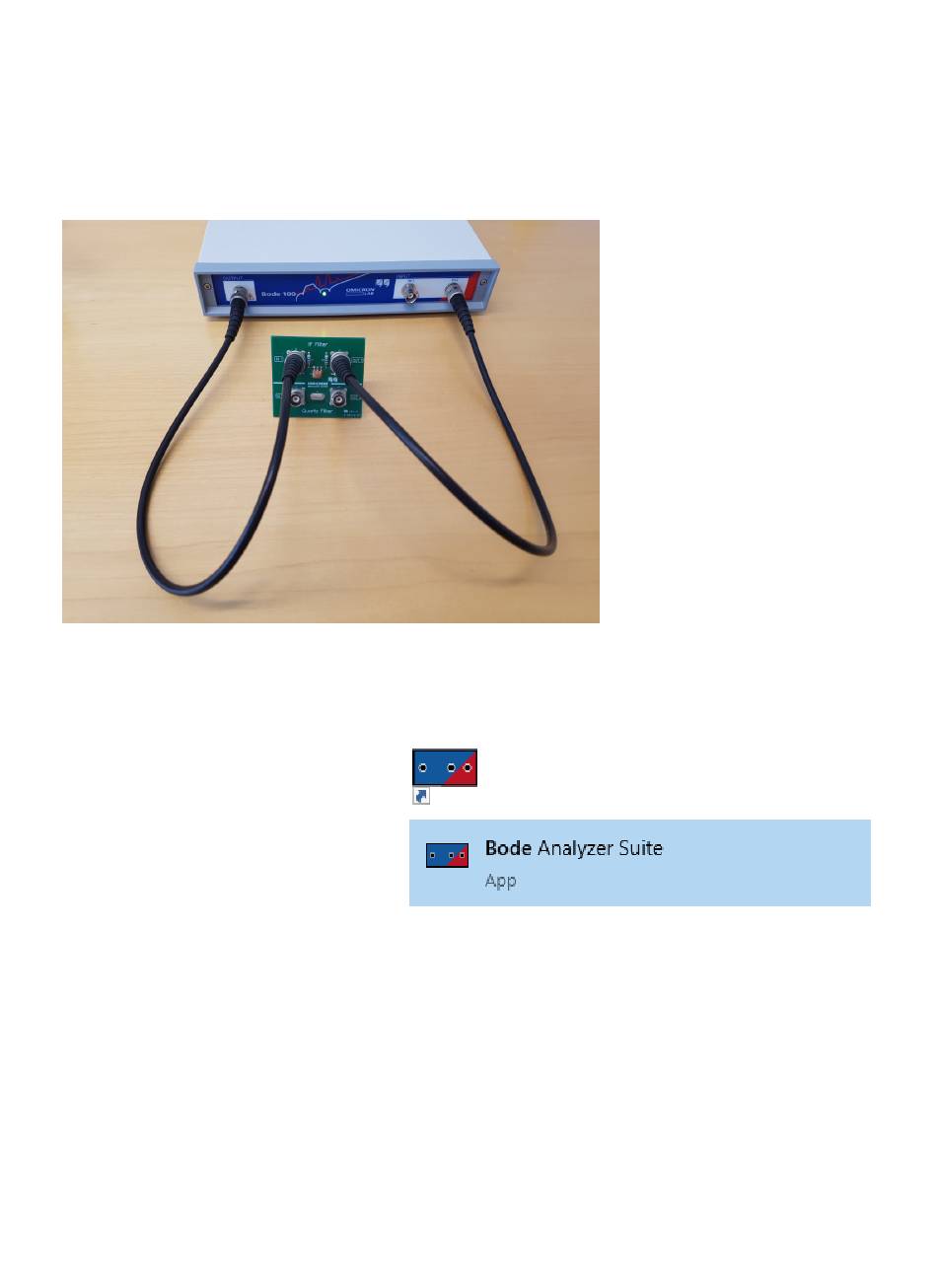

Connect the test object "IF Filter" to the Bode 100 using two BNC cables as shown in the figure below.
Figure 4-1: Connecting the test object IF Filter to the Bode 100
Now start the Bode Analyzer Suite:
- either by clicking its desktop icon:
- or by using the Microsoft Windows start
menu:
