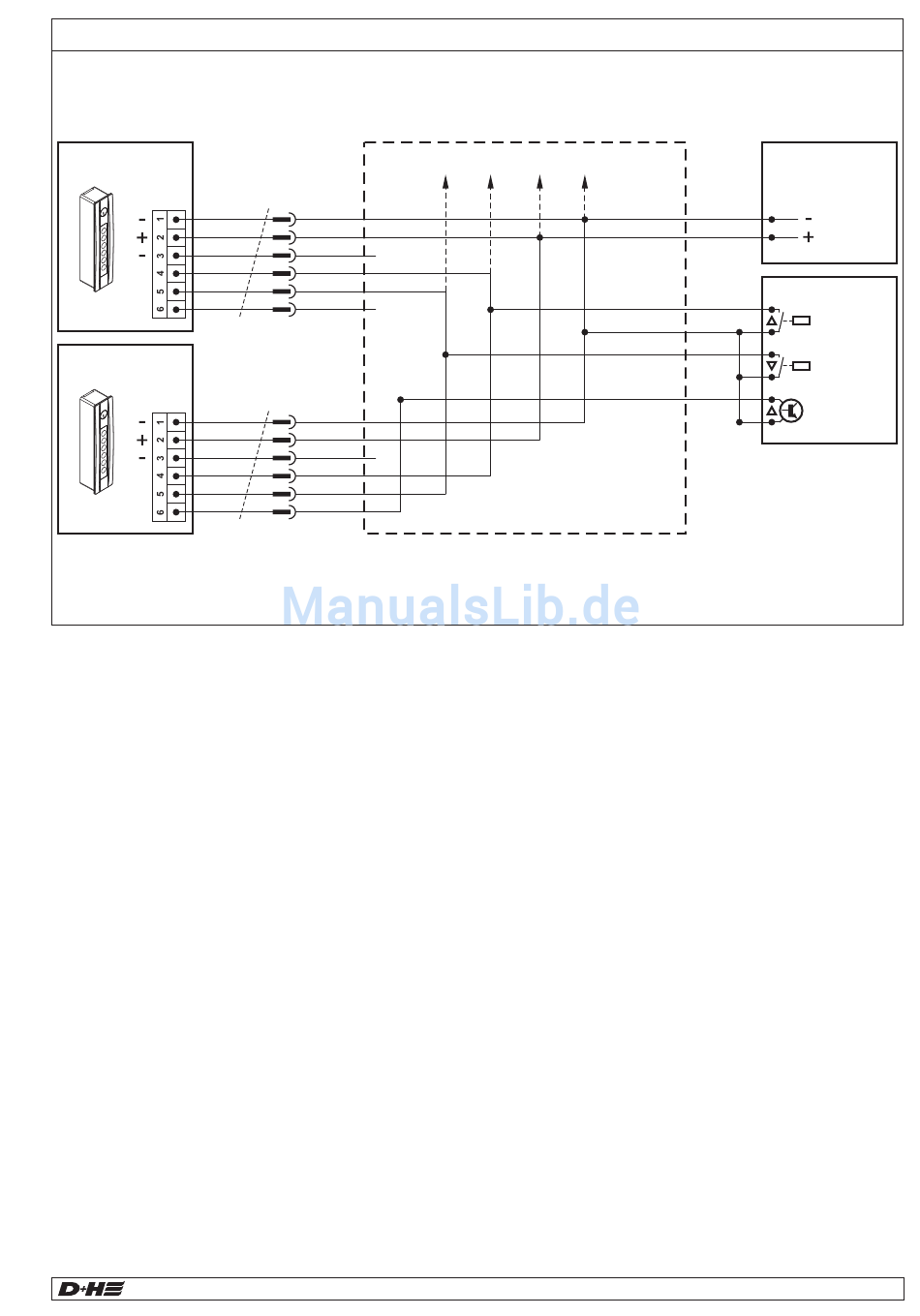

BDT 010-RC in connection with BMS and power supply

BDT 010-RC
white
brown
green
yellow
Open
grey
Close
pink
Open signal
BDT 010-RC
white
brown
green
yellow
Open
grey
Close
pink
Open signal
99.825.31 1.0/07/12
KUE-T1
white
brown
green
yellow
grey
pink
KUE-T1
white
brown
green
yellow
grey
pink
Further BDT 010-RC
Open signal*
switch box
English
Separate power
supply
24 VDC,
1 A per drive
GLT
Open
Out 1
–
Close
Out 2
In 1
* Input is triggered with
+24 VDC (max. 20 mA)
BDT 010-RC
25/36
