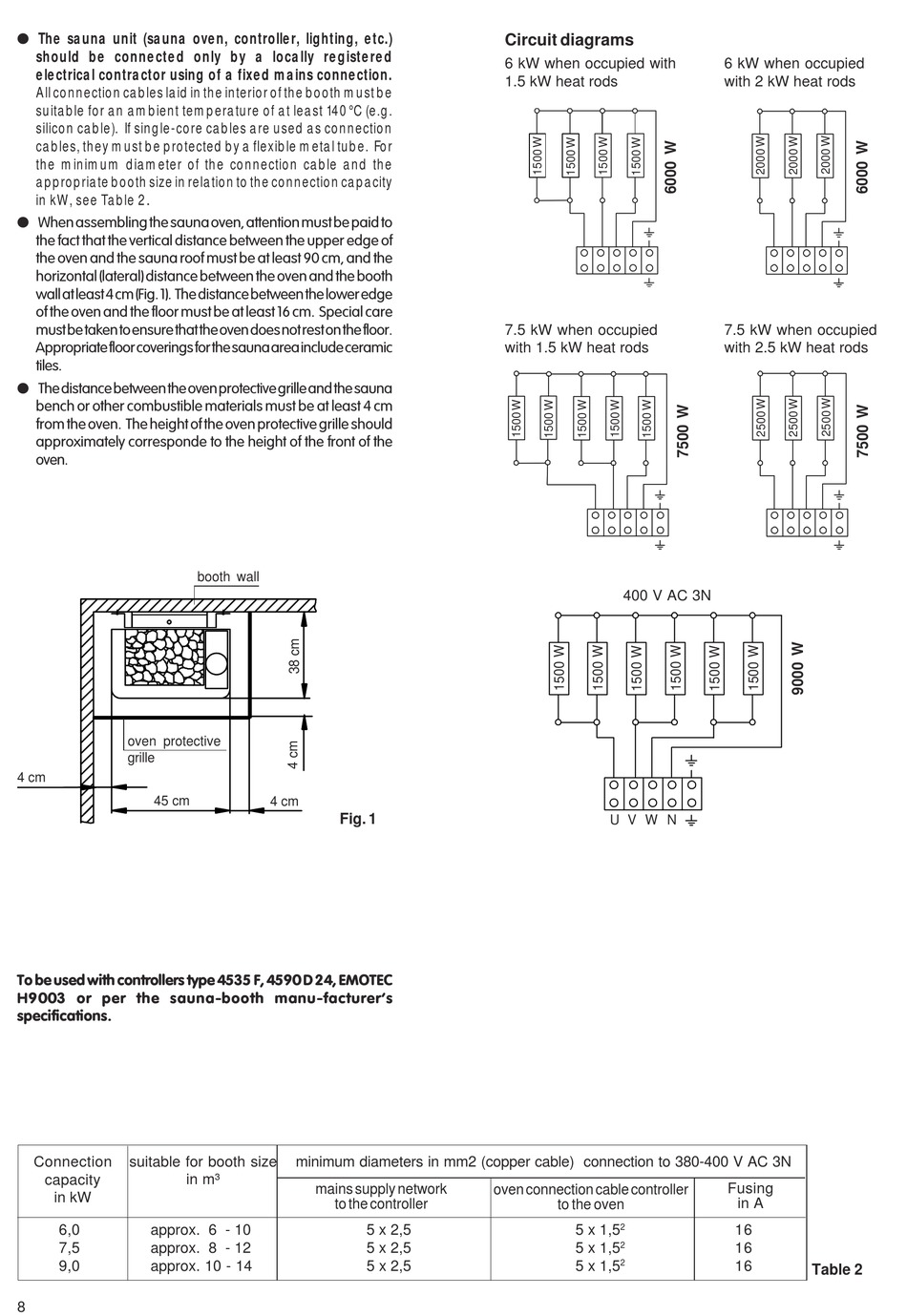

l The sauna unit (sauna oven, controller, lighting, etc.)
should be connected only by a locally registered
electrical contractor using of a fixed mains connection.
All connection cables laid in the interior of the booth must be
suitable for an ambient temperature of at least 140°C (e.g.
silicon cable). If single-core cables are used as connection
cables, they must be protected by a flexible metal tube. For
the minimum diameter of the connection cable and the
appropriate booth size in relation to the connection capacity
in kW, see Table 2.
l
l
oven protective
grille
4 cm
45 cm
suitable for booth size
Connection
capacity
in m³
in kW
6,0
approx. 6 - 10
7,5
approx. 8 - 12
9,0
approx. 10 - 14
8
booth wall
4 cm
Fig. 1
minimum diameters in mm2 (copper cable) connection to 380-400 V AC 3N
mains supply network
to the controller
5 x 2,5
5 x 2,5
5 x 2,5
Circuit diagrams
6 kW when occupied with
1.5 kW heat rods
7.5 kW when occupied
with 1.5 kW heat rods
400 V AC 3N
U V W N
oven connection cable controller
to the oven
5 x 1,5
2
2
5 x 1,5
2
5 x 1,5
6 kW when occupied
with 2 kW heat rods
7.5 kW when occupied
with 2.5 kW heat rods
Fusing
in A
16
16
16
Table 2
