Operation
6
Operation
6.1
Operating for devices with automatic release
The device is connected to the lifting equipment/carrier (e.g. excavator).
Before lifting the device, the gripping range has to be adjusted.
The device is placed over the product, set down, the device closes round the product and it can
be lifted.
Set down on the ground again, the device opens automatically, the automatic release locks it into
position so that the device can be lifted without closing up.
Placed over the next product, the automatic release disengages itself and the product can be
lifted.
The device therefore is a ONE-MAN-MACHINE.
Shut-down the device without lifting equipment/carrier only on even ground. The gripping arms
must be opened enough, to ensure a secure standing of the device. Otherwise there is a danger
of overturning!
6.2

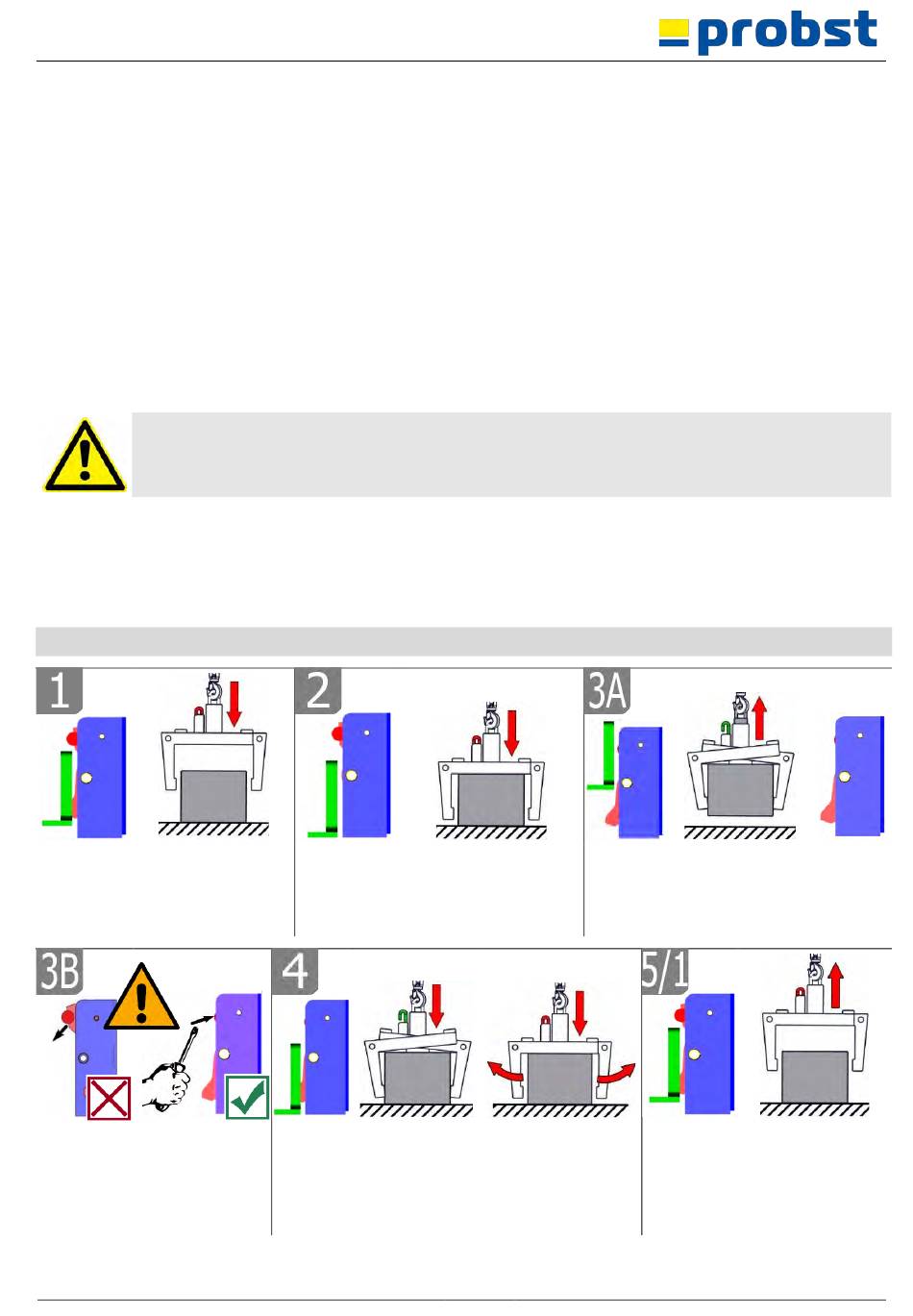

Picture of the automatic release
The device is equipped with an automatic release, that means the OPENING and CLOSING of the gripping arms
results through the set down and lifting of the device.
Pictures of the positions of the automatic release:
Device is lifted through the
lifting equipment/carrier
Gripping arms are opened
With faulty switching, the
change-over switch must
be pushed back manually
(e.g. with a screwdriver)
1)
53100348
Device is set up on the gripping
good
Gripping arms are opened
Device is set down with the gripping good
(on the ground)
Gripping arms are opening
Device is lifted through the lifting
equipment/carrier
Gripping good is clamped and can
be transported to the destination
20 / 29
Device is lifted through the
lifting equipment/carrier
Gripping arms are opened
(laydown position of the
device on the ground)
GB
