probst FTZ-MULTI-15 Betriebsanleitung Seite 52

Installation

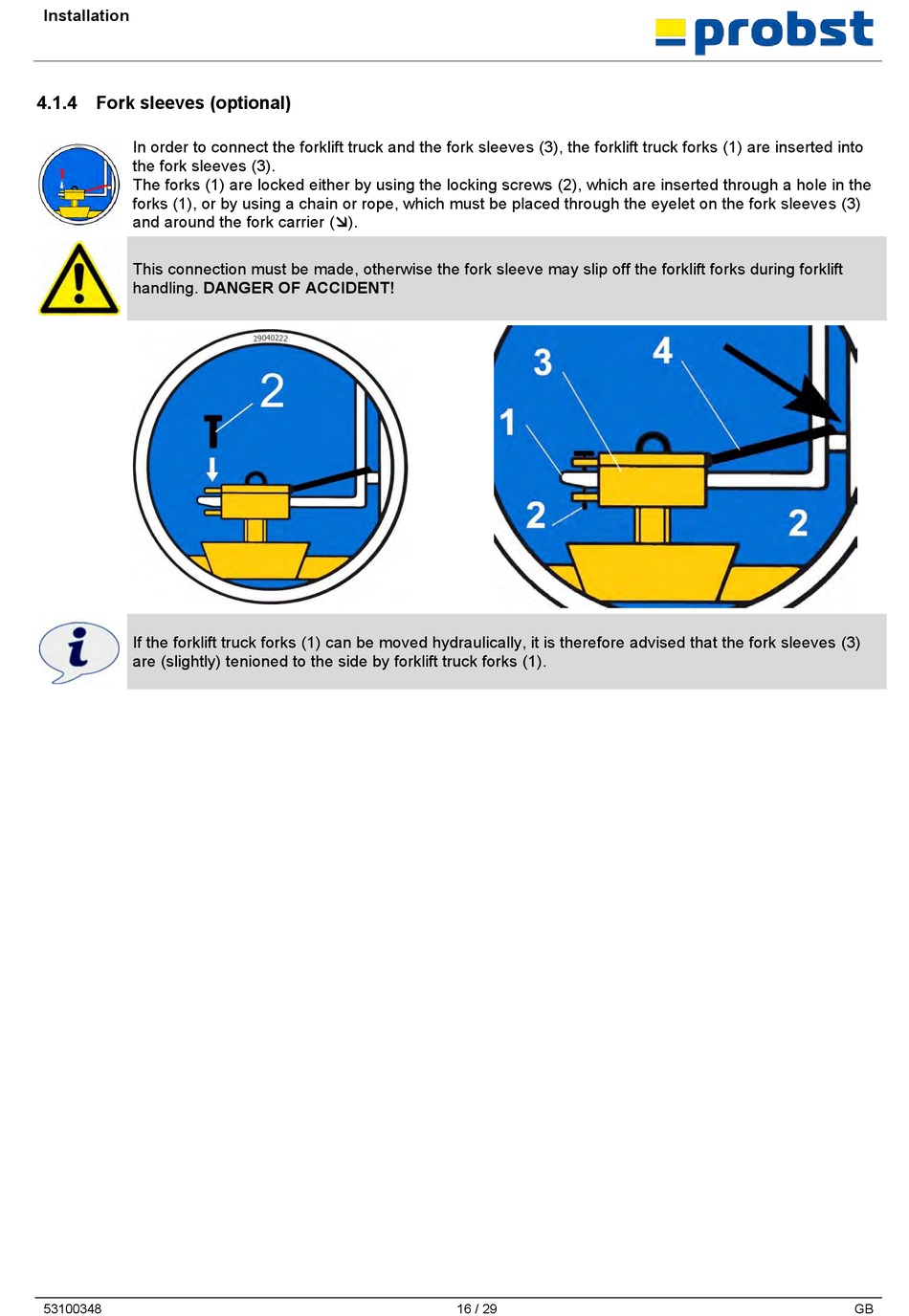

4.1.4 Fork sleeves (optional)
In order to connect the forklift truck and the fork sleeves (3), the forklift truck forks (1) are inserted into
the fork sleeves (3).
The forks (1) are locked either by using the locking screws (2), which are inserted through a hole in the
forks (1), or by using a chain or rope, which must be placed through the eyelet on the fork sleeves (3)
and around the fork carrier ().
This connection must be made, otherwise the fork sleeve may slip off the forklift forks during forklift
handling. DANGER OF ACCIDENT!
If the forklift truck forks (1) can be moved hydraulically, it is therefore advised that the fork sleeves (3)
are (slightly) tenioned to the side by forklift truck forks (1).
53100348 16 / 29 GB
