Five-Core Cable (L1, L2, L3, N, and PE)

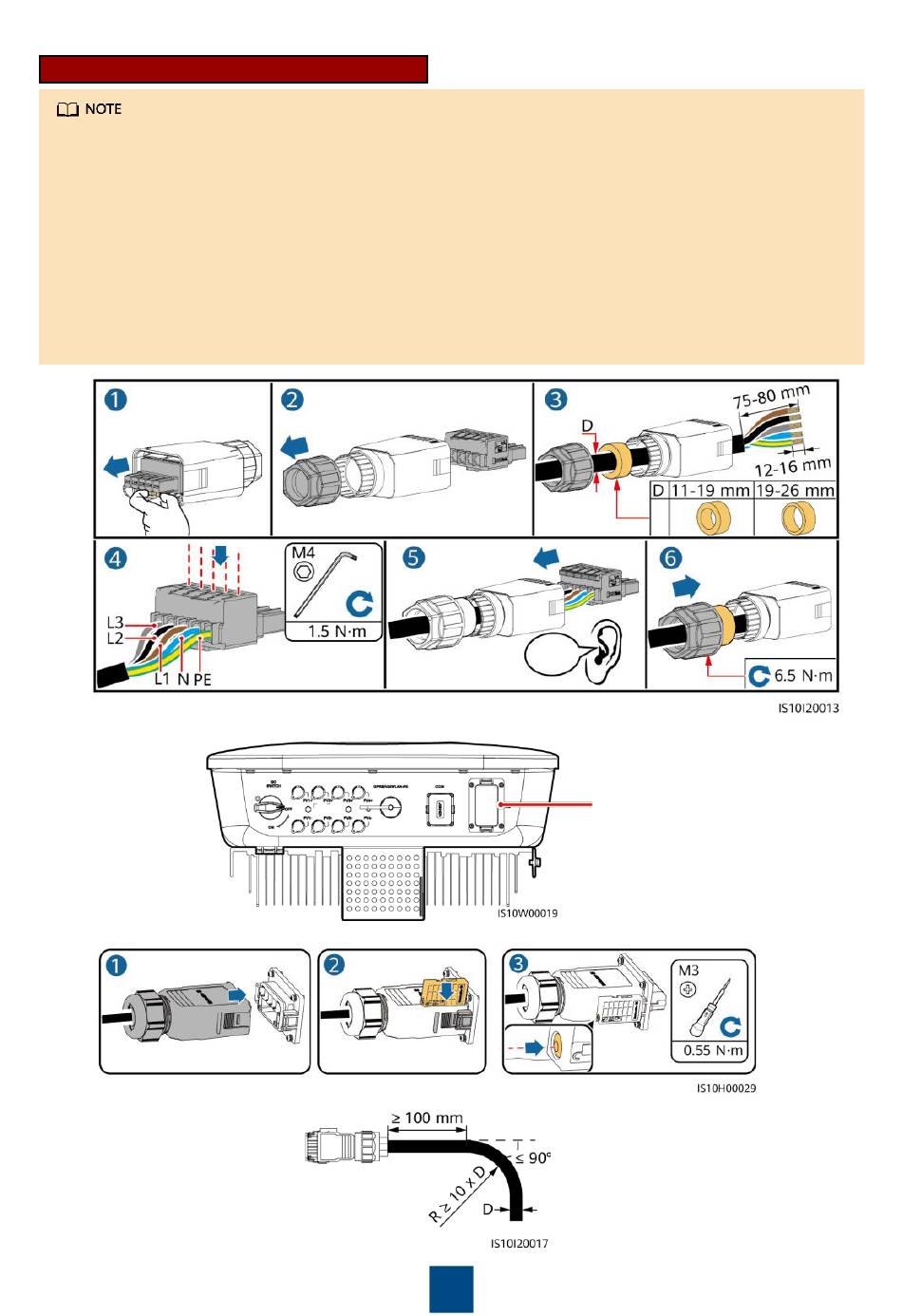

This section describes how to connect a five-core AC output power cable to an AC connector.
•
• A three-core AC output power cable can be connected similarly. The three-core cable (L1, L2,
and L3) is not connected to the neutral wire or PE wire.
A four-core or five-core AC output power cable can be connected similarly. The four-core
•
cable (L1, L2, L3, and PE) is not connected to the N wire, and the four-core cable (L1, L2, L3,
and N) is not connected to the PE wire.
Strip the insulation layers of the AC output power cable by the recommended length (12–16
•
mm) to ensure that the cable conductors are completely inside the conductor insertion points
and no insulation layer is pressed into the conductor insertion points. Tighten the cable
conductors to a torque of 1.5 N· m. Otherwise, the device may fail to run properly or be
damaged during
2. Connect the AC connector to the AC output port.
3. Check the route of the AC output power cable.
operation.
Click
AC output port (AC)
