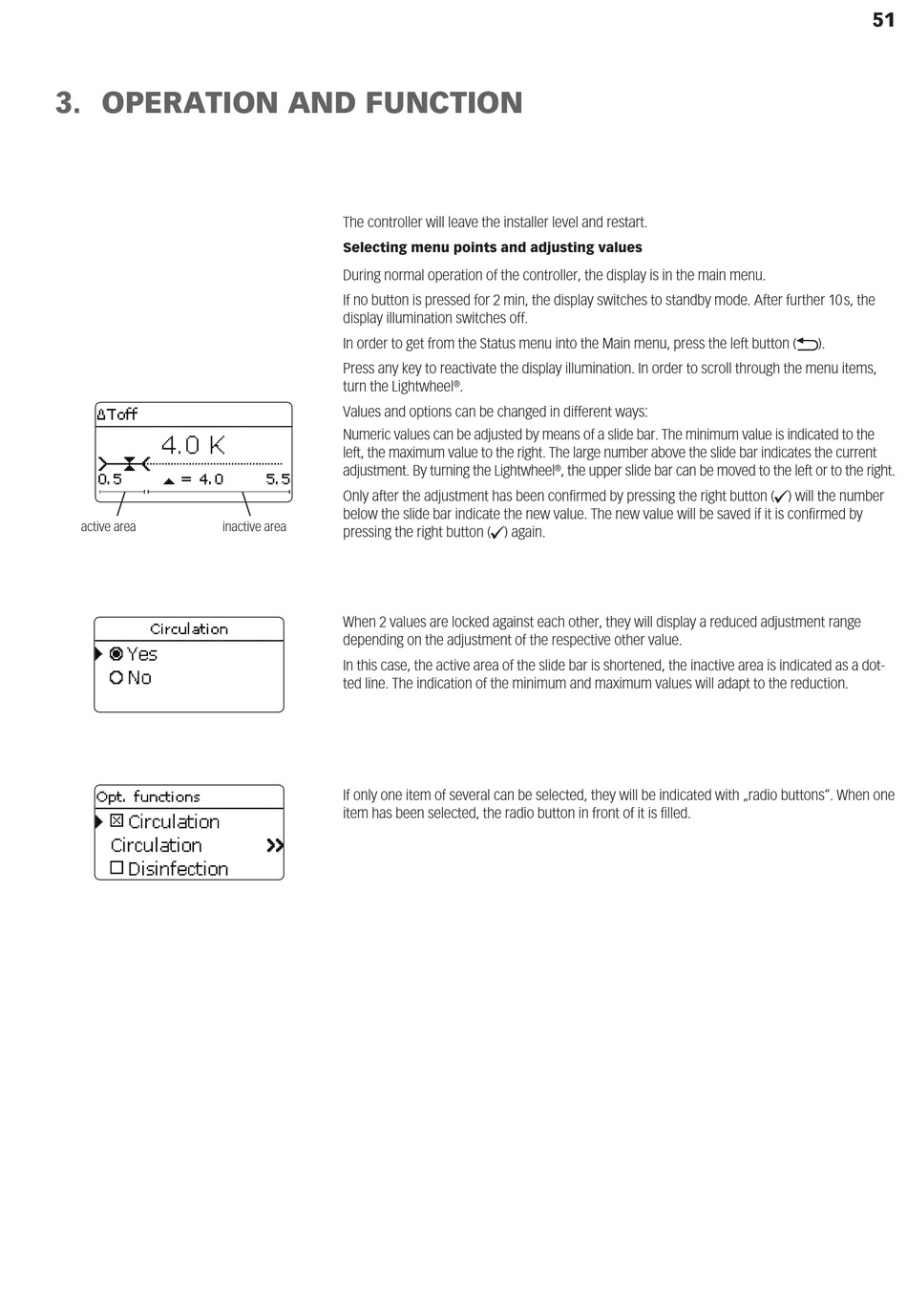

3. OPERATION AND FUNCTION
The controller will leave the installer level and restart.
Selecting menu points and adjusting values
During normal operation of the controller, the display is in the main menu.
If no button is pressed for 2 min, the display switches to standby mode. After further 10 s, the
display illumination switches off.
In order to get from the Status menu into the Main menu, press the left button (⟲).
Press any key to reactivate the display illumination. In order to scroll through the menu items,
turn the Lightwheel ® .
Values and options can be changed in different ways:
Numeric values can be adjusted by means of a slide bar. The minimum value is indicated to the
left, the maximum value to the right. The large number above the slide bar indicates the current
adjustment. By turning the Lightwheel ® , the upper slide bar can be moved to the left or to the right.
Only after the adjustment has been confirmed by pressing the right button (✓) will the number
below the slide bar indicate the new value. The new value will be saved if it is confirmed by
active area inactive area
pressing the right button (✓) again.
When 2 values are locked against each other, they will display a reduced adjustment range
depending on the adjustment of the respective other value.
In this case, the active area of the slide bar is shortened, the inactive area is indicated as a dot-
ted line. The indication of the minimum and maximum values will adapt to the reduction.
If only one item of several can be selected, they will be indicated with „radio buttons". When one
item has been selected, the radio button in front of it is filled.
