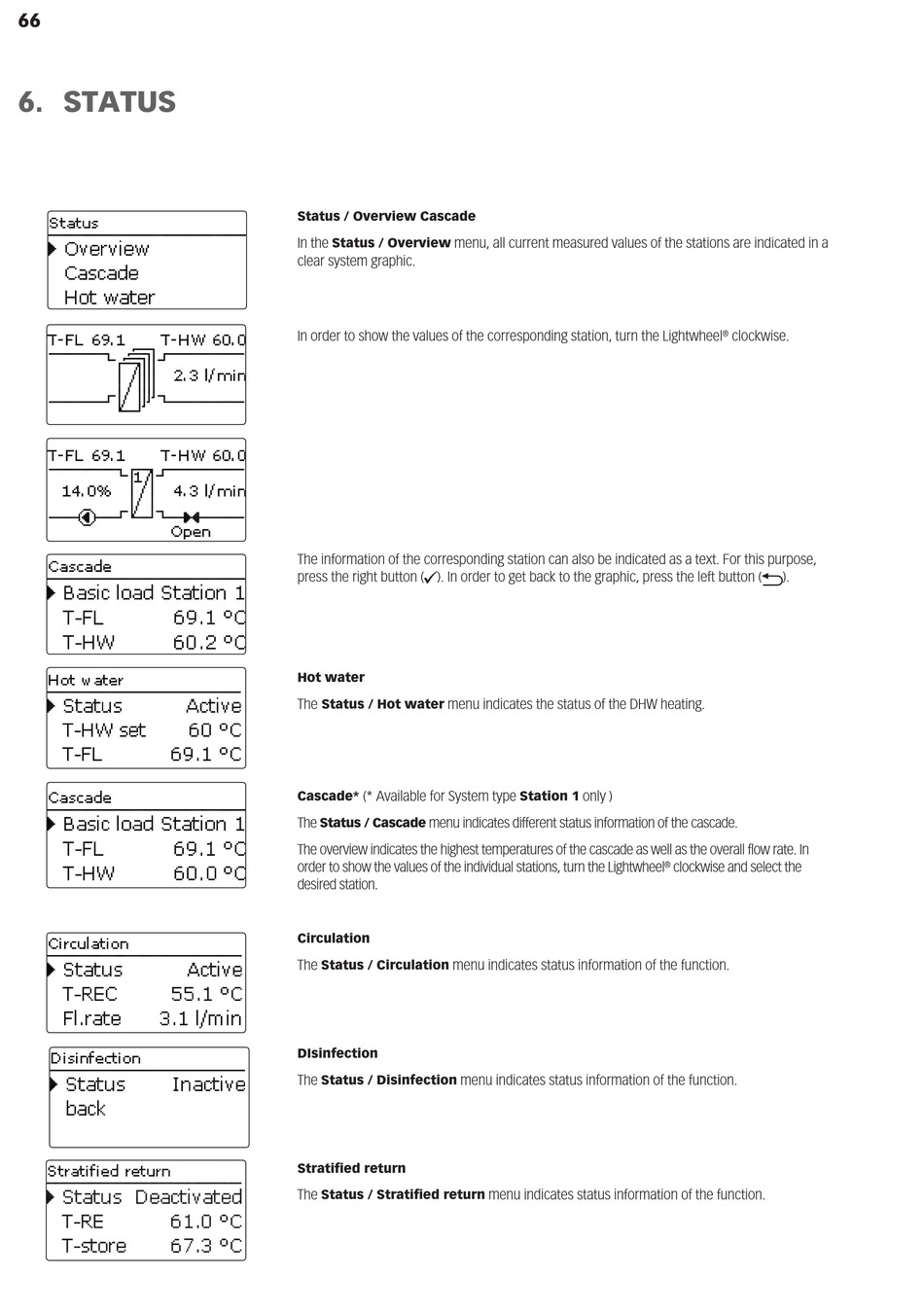

6. STATUS
Status / Overview Cascade
In the Status / Overview menu, all current measured values of the stations are indicated in a
clear system graphic.
In order to show the values of the corresponding station, turn the Lightwheel
The information of the corresponding station can also be indicated as a text. For this purpose,
press the right button (✓). In order to get back to the graphic, press the left button ( ⟲ ).
Hot water
The Status / Hot water menu indicates the status of the DHW heating.
Cascade* (* Available for System type Station 1 only )
The Status / Cascade menu indicates different status information of the cascade.
The overview indicates the highest temperatures of the cascade as well as the overall flow rate. In
order to show the values of the individual stations, turn the Lightwheel
desired station.
Circulation
The Status / Circulation menu indicates status information of the function.
DIsinfection
The Status / Disinfection menu indicates status information of the function.
Stratified return
The Status / Stratified return menu indicates status information of the function.
® clockwise.
® clockwise and select the
